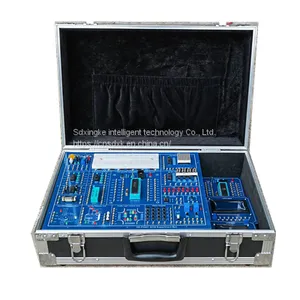

XK-PAM1 SINGLE CHIP MICROPROCESSOR EXPERIMENT BOX

1. Product overview:

XK-PAM1 SCM experiment box constitutes by experiment mother board and expand board. Experiment box’s mother board integrated with power module, PIC SCM minimum system module, commonly function experiment module etc. Expand board includes AVR minimum system, partial function experiment module, can according to customer’s required processed different configuration. Can upload experiment module or SCM to certain functions.

2. Technical parameters:

1. External dimension:485mm*330mm*150mm;
2. Power supply:
Single phase: AC100~240V,50Hz;
Power≤10W ;
With electricity indication ;
With ground protection ;
With over current protection;

3. Experiment power:
DC+5V,1A,
DC+2.5V, reference voltage ;
DC 0~+5V, adjustable voltage source ;
4. Working condition: temperature-10°C~+40°C relative humidity...

3. Product structure:
1. Experiment mother board includes:
Power module, PIC SCM minimum system, breadboard module, 8*8, dot matrix display module, BCD code nixie tube module, LED module, A/D and D/A conversation module, RS232 communication module, RS232 expansion interface, DIP20 expand base, E2PROM (AT24C256)storage module, temperature sensor module, optocoupler module, relay module, traffic light display module, Delta/Star control display module, liquid mixed process display module.

1. Experiment box expand board includes:

ATMEGA 16A minimum system expand board (with AVR writer) ;
LCD 1602 expand board ;
LCD 12864 expand board ;
Electrical machine expand board;

More spec and introduction check on tvetlabsolution at aliyun com.

2. Experiment project:

1) Experiment box mother board experimental project
1. Running water experiment
2. Lattice screen display experiment
3. Trends nixie tube display experiment
4. AT24C256 storage experiment
5. RS232 communication experiment
6. 4 ways A/D transform experiment
7. 4 ways D/A transform experiment
8. Optpcoupler delay drive experiment
9. Temperature collect experiment
10. Traffic light display experiment
11. Delta/star control display experiment
12. Liquid mixing process experiment
2) Experiment box open end experimental project
1. LCD 1602 LCD display experiment
2. LCD 12864 LCD display experiment
3. 4*4 keyboard input experiment
4. Stepper motor drives experiment
5. DC motor drive speed measuring experiment
6. Steering engine experiment.
