XK-AEB1 Modular Analog Electronic Experiment Kit

XK-AEB1 Modular Analog Electronic Experiment Kit thumbnail-1

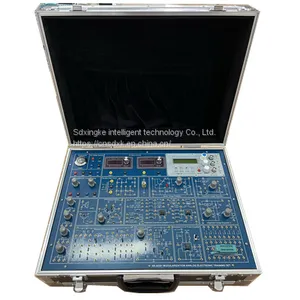

XK-AEB1 Modular Analog Electronic Experiment Kit photo-1
US$ 415 - 460 MOQ: 3 Pieces
Key Specifications
Get Latest Price
Brand Name:
XINGKE
Place of Origin:
China
Model Number:
XK-AEB1
Contact Supplier Request Quote Chat Now
Shandong Xingke Intelligent Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name XINGKE
Place of Origin China
Model Number XK-AEB1

Product Introduction

1. The experimental circuit is designed in the way of unit circuit. The unit circuit is the basic experimental circuit, and then other components are added as the parameters of the circuit, or combined with other unit circuits to complete different experimental requirements.

2. The experimental schematic diagram is printed on the surface of the panel, and the experimental circuit is built by students according to the experimental schematic diagram.

3. The experiment connection jack adopts the overlapping self-locking gold-plated jack, which is fixed on the experimental board by welding.

4. Discrete component zone, can plug resistors, capacitors, diodes, transistors, integrated circuits, etc., can carry out course design experiments.

5. The output of the power supply has over current protection and automatic recovery function.

More specification or more electronic training series, view on tvetlabsolution(a)aliyuncom.

Technical Parameter

1. Power Input: AC 220V±10% 50HZ;

2. Power Output:

(1) DC±5V／1A    DC±12V／1A

(2) DC＋1.25V～＋12V／0.5A; DC-1.25V～－12V／0.5A The voltage is continuously adjustable

(3) AC7.5V×2／0.2A

All the above DC power supplies have overcurrent protection and automatic recovery function.

3. High precision DC Signal Source

Max. output voltage range: -10V～＋10V; Max. load current 20mA, precision: 0.01V,

continuously adjustable;

4. Function generator

Waveform: Sine wave, square wave (Duty cycle is adjustable), triangular wave; sawtooth wave, pulse wave

Frequency range: 0～2MHz;

Amplitude: 0～10V(VP-P)

5. Discrete component circuits:

Integrated operational amplifier and amplifier circuit, rectifier, filter and voltage regulator circuit; Single stage amplifying circuit, two stage resistance-capacitance coupling amplifying circuit, negative feedback amplifying circuit; Emitter follower; Differential amplifier circuit; Complementary symmetric power amplifier circuit; Field effect tube circuit; Resistors, capacitors and diode, triode; Potentiometer group, bulb, loudspeaker, etc.

6. Discrete component zone

(1) Supply 16 of resistor-capacitor unit, 2 of triode jack.

(2) Supply 1 of 20 chip locking socket

Connector: 2mm inner diameter self-locking socket can be folded plug

7. The kit structure: aluminum alloy frame structure, overall size: approx. 475mm×315mm×150mm;

Experiment Item

1. Single tube AC amplifier circuit

2. Two-stage AC amplifier circuit

3. Negative feedback amplifier circuit

4. Radiation level following circuit

5. DC differential amplifier circuit

6. Proportional summation operation circuit

7. Integrating and differentiating circuits

8. Waveform generating circuit

9. Active filter

10. Voltage comparator

11. Integrated Circuit RC Sine Wave Oscillator Circuit

12. Integrated power amplifier circuit

13. Rectifier filter and parallel voltage regulator circuit

14. Series voltage regulator circuit

15. Integrated voltage regulator circuit

16. Current/voltage conversion circuit

17. Voltage/frequency conversion circuit

18. Complementary symmetric power amplifier circuit

19. Waveform conversion circuit


Product Tags: Analog Electronic Experiment Kit , PIC TRAINING KIT , SCM TRAINING KIT , LAB TRAINING , SCHOOL SIMULATION INSTRUMENT
