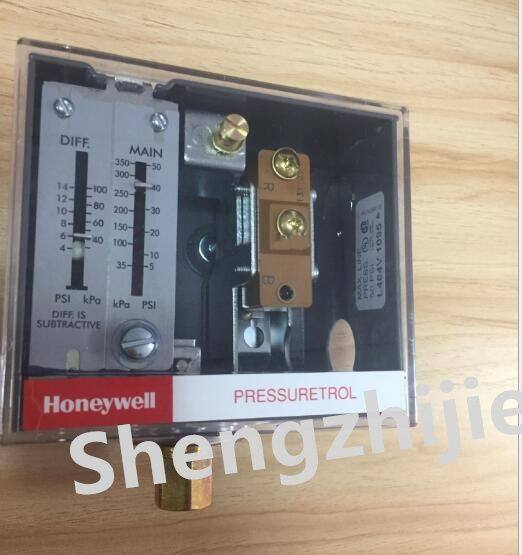

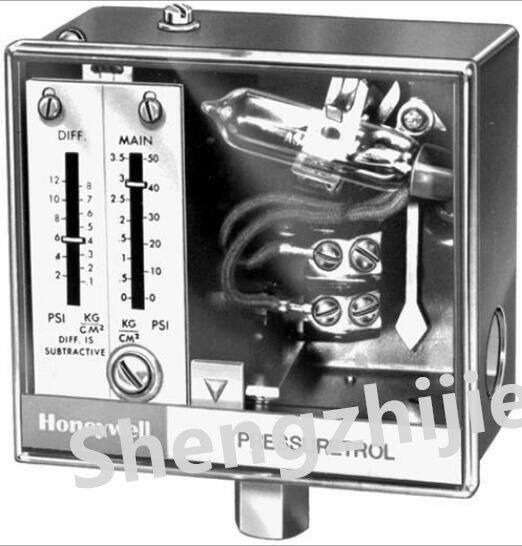

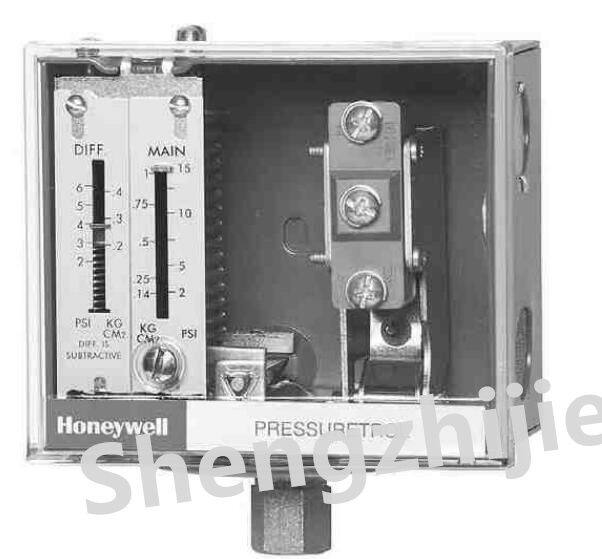

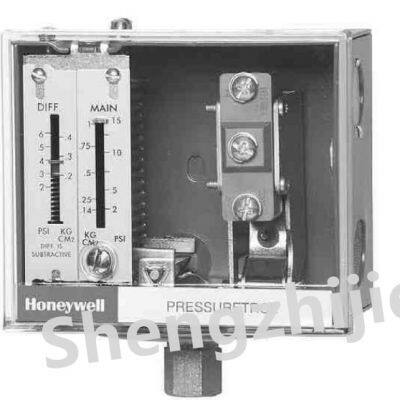

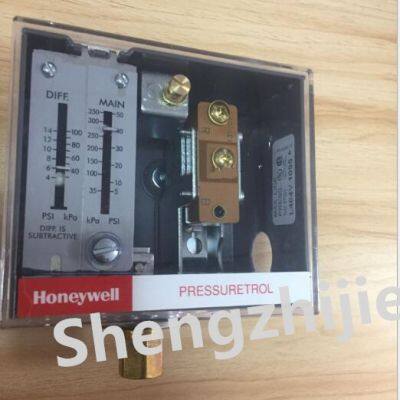

Help CenterHoneywell L404A-D, F; L604A,L Pressuretrol Controllers Agent
Related Products
-
Honeywell RA890F Flame Safeguard Primary Control AgentNegotiableMOQ: 1 Unit -
Honeywell Series 71, 72, and 76 Modutrol IV™ Motors AgentNegotiableMOQ: 1 Unit
-
Honeywell 7800 SERIES RM7890D, RM7895E,F Relay Modules Spot GoodsNegotiableMOQ: 1 Unit
-
Honeywell V4055A,B,D,E On-Off Fluid Power Gas Valve Actuator Spot GoodsNegotiableMOQ: 1 Unit
-
Honeywell C7007A, C7008A, C7009A Flame Rod Holder & Flame Rod AssembliesNegotiableMOQ: 1 Unit
FEATURES
Can be used with steam, air, non-combustible gases, or fluids non-corrosive to the pressure sensing element.
Stainless steel diaphragm (except 300 psi [21.1 kg/cm2; 2068 kPa] models) also allows use with ammonia, oxygen, distilled water and similar media.
L404B is recommended for supervision of atomizing medium pressure in oil burner systems.
Models are available with single-pole, single-throw (spst), single-pole, double-throw (spdt), or double-pole single-throw (dpst) switching and in a variety of operating ranges.
Dustproof, trouble-free mercury switches (all models except L404F, which has snap-acting switch). ï Automatic reset models have adjustable, subtractive differential.
Trip-free mechanism on manual reset models assures that limit function of controller cannot be defeated by jamming reset lever.
Screw adjustments made on top of case.
Scaleplates marked in English (psi) and Metric (kg/cm2) units.
L404F models available with European enclosure, British Standard Pipe Threads, ground screw, and scale plates marked in kg/cm2 and either psi or kPa.
Clear plastic cover on case to observe pressure settings and switch action.
Leveling indicator visible through cover.
Hexagonal fitting with 1/4-18 NPT internal threads for direct mounting to 14026 Steam Trap (siphon loop).
Surface mount is available using screws through holes (knockouts) in case backing.
APPLICATION
L404 and L604 PressuretrolÆ Controllers are line voltage pressure controllers that provide operating control, automatic limit protection, or manual reset limit protection for pressure systems of up to 300 psi (21.1 kg/cm2 or 2068 kPa).
