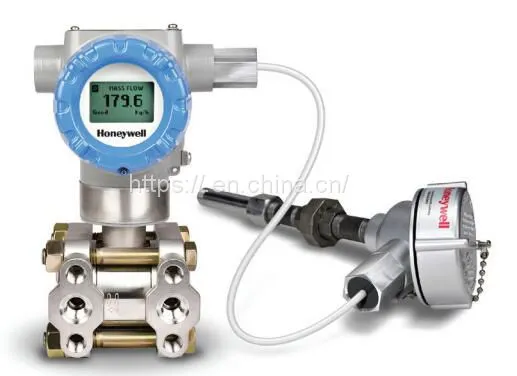

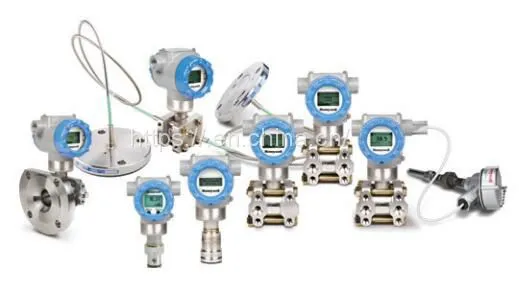

Introduction Part of the SmartLine® family of products, the STD800 is a high performance differential pressure transmitter featuring piezoresistive sensor technology. By combining differential pressure sensing with on chip static pressure and temperature compensation the STD800 offers high accuracy and stability over a wide range of application pressures and temperatures. The SmartLine family is also fully tested and compliant with Experion® PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application needs for pressure measurement applications.
Best in Class Features: • Accuracies up to 0.035% of span standard & 0.025% of span optional
• Stability up to 0.01% of URL per year for 15 years
• Automatic static pressure & temperature compensation • Rangeability up to 400:1
• Response times as fast as 90ms
• Multiple local display capabilities
• External zero, span, & configuration capability
• Polarity insensitive electrical connections
• Comprehensive on-board diagnostic capabilities
• Integral Dual Seal design for highest safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
• World class overpressure protection
• Full compliance to SIL 2/3 requirements.
• Modular design characteristics
• Available with additional 15-year warranty
• Plugged Impulse Line Detection Option
• Dual/Triple Calibration Option (HART & Fieldbus only)
Communications/Output Options: • 4-20mA dc • Honeywell Digitally Enhanced (DE)
• HART ® (version 7.0)
• FOUNDATION™ Fieldbus
All transmitters are available with the above listed communications protocols.
