Introduction Part of the SmartLine® family of products, the SmartLine STT700 is a high performance temperature transmitter offering high accuracy and stability over a wide range of process and ambient temperatures. SmartLine easily meets the most demanding needs for temperature measurement applications.
Best in Class Features: T
he STT700 is single or a dual input temperature transmitter that supports millivolt, thermocouple and RTD sensors. It is available with either HART or DE protocol output.
High performance
o Digital accuracy up to 0.15 Deg C, 0.1 Deg C option
o Stability up to ±0.05% of URL per year for ten years
o 500 mSec update time (single input)
o 1 Sec update time (dual input)
Reliable measurement
o Built in galvanic isolation
o Sensor break detection
o Comprehensive on-board diagnostic capabilities
o Full compliance to SIL 2/3 requirements.
o Available with 4 year warranty o Supports Namur 89 Wire break
o Direct entry of Callendar-van Dusen coefficients R0, α, δ and β for calibrated RTD sensors. Lower Cost of Ownership o Universal input
o Dual sensor option
o External zero, span, & configuration capability
o Polarity insensitive loop wiring

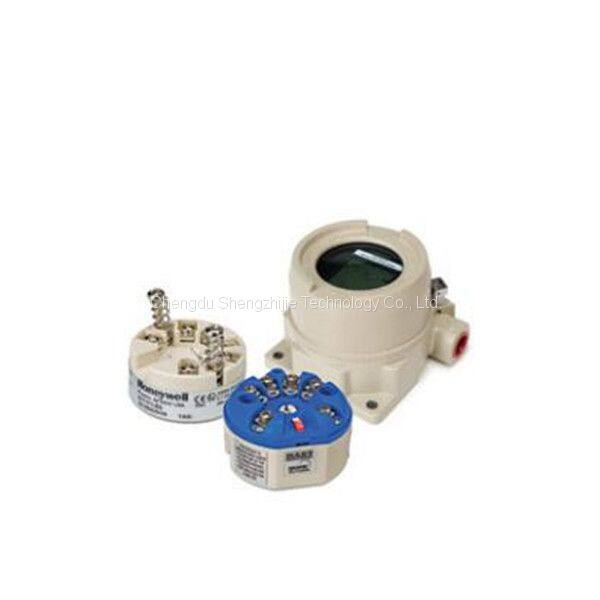

Figure 1– SmartLine STT700 Temperature Transmitter (HART) module shown with dual input capability Communications/Output Options:
o 4-20 mA DC
o HART ® (version 7.0)
o Honeywell Digitally Enhanced (DE) All transmitters are available with the above listed output and communications protocol option.
Mounting Options:
o Direct sensor head mounting in DIN Form A aluminum housing.
o Other mounting options available include wall, pipe, DIN Rail or single compartment field housing.
