HFKP 012-1H6T Hongfa Hot Selling IC CHIP Automobile Relay
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal Cash
You May Like
-
6VDC； 250VAC 3A Electronic Components HK4101F-DC12V-SHG
-
Electronic Components Supplier HLSR 50-P LEM USA Inc. SENSOR CURRENT HALL 50A AC/DC
-
High Ruggedness, Temperature Stable Integrateds Circuit HMG75N65T
-
Original Electronic Component HO 25-P Current Sensors
-
Single Port RJ45 Conncteor for 10/100Base-T NIC Applications HR911105A With Integrated Magnetics and LED
-
Original Integrated Circuit INN9259 Unique Lower EMI 5.0V to 20V Input, 1.0-A Synchronous Step-down Converter
Product Details
| Brand Name | Hongfa | Place of Origin | China | |
| Model Number | HFKP 012-1H6T | Size | Subminiature | |
| Usage | General Purpose | Contact Load | Low Power | |
| Protect Feature | Epoxy | Theory | Solid State Relay |
Product Description
Factory

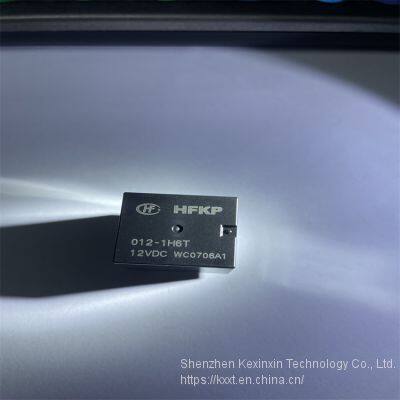

HFKP 012-1H6T
brand: hongfa
Automobile relay
characteristic:
45A; Contact switching capability
Printed board installation
One set of open contacts and one set of switching contacts
Comply with ROHS and ELV instructions
Typical applications:
Turn signal, hazard signal, emergency stop light and other light control, car audio, car air conditioning, oil pump control, low temperature start, seat adjustment, rear window defogger, sunscreen, solenoid start switch, anti-theft device, central door lock, automatic door and window
Performance parameters:
Electric shock form: one group of normally open (1H), one group of conversion (1Z)
Contact voltage reduction: NO end: typical value 20MV, maximum value 250mv (measured at 10A) NC end: typical value 30MV, maximum value 250mv (measured at 10A)
Maximum continuous current: 30A (85 ℃, 8H)
Maximum switching current: On: 100A (light load surge current) Off: 60A (resistive)
Maximum switching voltage: 75vdc
Minimum load: 1A 6VDC
Electrical durability: see contact parameter table for details
Mechanical durability: 1x10 (7 times) times 300 times/minute
Insulation resistance: 500 milliohm (500vdc)
Dielectric withstand voltage: 500vac between contacts; Between coil and contact: 500vac
Action time: typical value: 5ms; Maximum value: 10ms (measured at rated voltage)
Release time: typical value: 3ms, maximum value: 10ms
Ambient temperature: - 40 ℃ · 125 ℃
Vibration: 10hz-40hz 1.27mm double amplitude
40hz~70hz 49m/s ²
70hz~100hz 0.55 double amplitude
100hz~500hz 98m/s ²
Outlet form: PCB outlet
Packaging form: plastic sealing type
Weight: about 20G

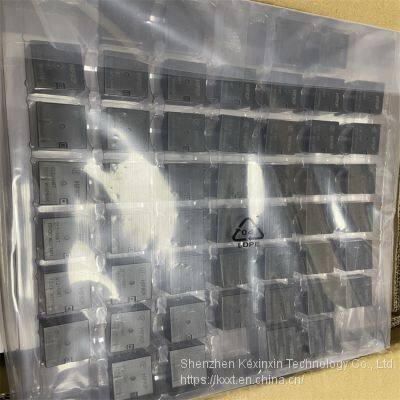

Factory Pack Quantity: 50
price: 1.2-2
