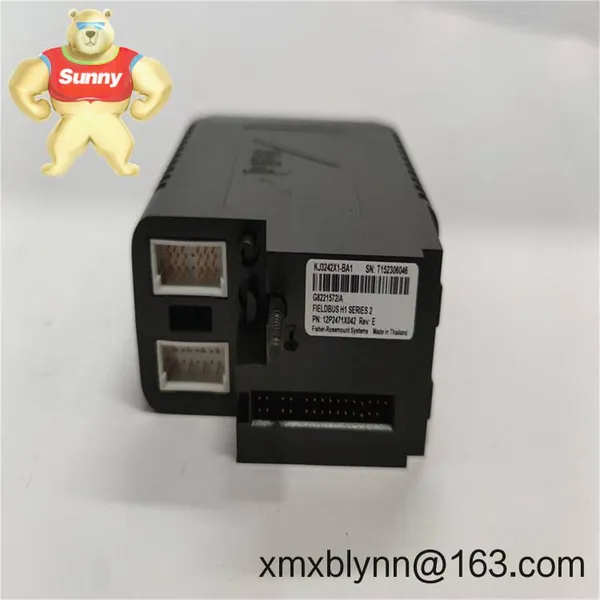

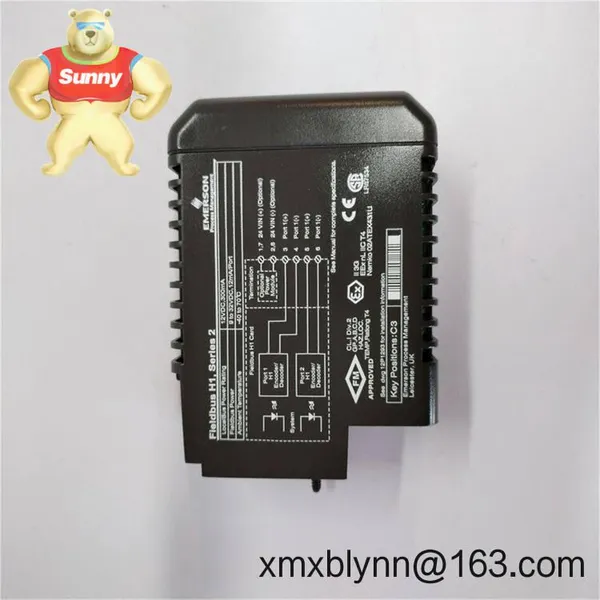

Help CenterEmerson KJ3242X1-BA1 Fieldbus H1 Series 2 Module – Reliable FOUNDATION Fieldbus Connectivity for DeltaV Systems
Related Products
-
Emerson KJ4002X1-BA1 Vertical Right Side 8‑Wide Carrier for DeltaV S-series I/OUS$ 2216.00MOQ: 1 Blade -
EMERSON KJ4001X1-BE1 (12P0818X072) Wide I/O Carrier – Robust Backplane Carrier for DeltaV S‑series Modular I/OUS$ 2216.00MOQ: 1 Blade
-
Emerson KJ4110X1-BA1 Programmable Logic Controller Module – Reliable Control for Emerson DeltaV-based SystemsUS$ 2216.00MOQ: 1 Blade
-
Emerson DeltaV KJ4110X1-EA1 Analog Input Module – 8‑Channel 4–20 mA With HART for Reliable Plant DataUS$ 2216.00MOQ: 1 Blade
-
Emerson KJ4110X1-BC1 System Power Supply – Stable Backplane Power for Control System NodesUS$ 2216.00MOQ: 1 Blade
Warranty: 365 days
Delivery: 1 week if in stock; no more than 1 month at the latest
Payment: 50% advance payment; full payment before delivery
Express options: FedEx, UPS, DHL
Two FOUNDATION Fieldbus H1 segments – Designed for 31.25 kbps H1 networks (IEC 61158-2), ideal for smart FF instruments.

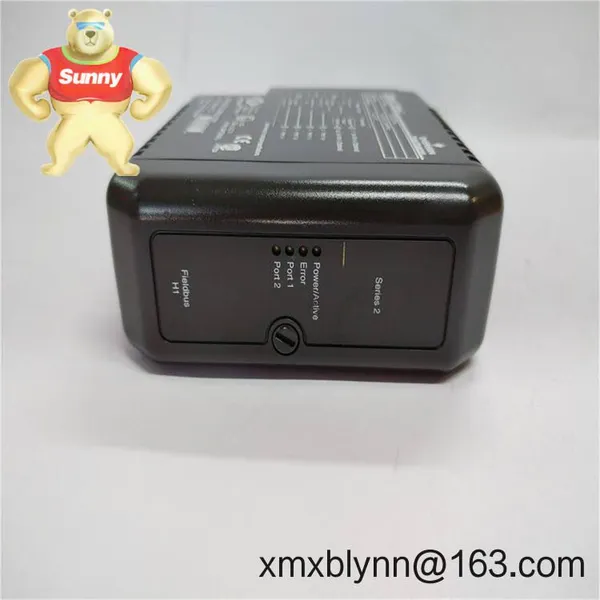

Series 2 stability and diagnostics – Improved component reliability with onboard status/health indicators that simplify troubleshooting.
Backplane-powered – Draws power from the DeltaV carrier; no separate local power needed for the interface module itself.
Redundancy ready – Supports redundant pairing in DeltaV architectures to minimize single-point failures.
Hot-swappable serviceability – In many cases, maintenance can replace the module on a powered system to reduce downtime.
Standards-aligned wiring – Works with shielded twisted-pair FF cable, segment power conditioners, and proper terminators at both ends.
Lifecycle-friendly – Common spares strategy across Series 2 I/O lowers stocking complexity and operating costs.
| Brand / Model | Emerson KJ3242X1-BA1 (Fieldbus H1, Series 2) |
| HS Code | 8537.10 (Boards/panels for electric control) |
| Power Requirements | Backplane 24 VDC supply from DeltaV carrier; typical module consumption |
| Signal I/O Types | 2 × FOUNDATION Fieldbus H1 segments (IEC 61158-2, 31.25 kbps) |
| Communication Interfaces | DeltaV backplane to controller; field terminals for H1 segments |
| Isolation | Channel-to-backplane galvanic isolation; channel-to-channel isolation applied on H1 ports |
| Operating Temperature | 0 to 55 °C (32 to 131 °F), control cabinet environment |
| Dimensions & Weight | Approx. 130 × 50 × 110 mm; ~0.25 kg (Series 2 I/O form factor) |
| Installation Method | Plugs into DeltaV Series 2 carrier (DIN-rail via carrier); screw/plug-in terminals to fieldbus segment |
| Typical Segment Capacity | Up to ~12 devices per H1 segment with proper power conditioning and topology |
This module fits process plants that rely on FOUNDATION Fieldbus instrument networks and want tight integration with DeltaV:
Oil & gas (upstream skids, tank farms, gas treatment) where segment diagnostics help find wiring issues fast.
Chemicals and petrochemicals that deploy large FF loops and prefer centralized cabinet-mounted interfaces.
Power generation balance-of-plant, using H1 devices for valves, transmitters, and motor controllers.
Pharmaceuticals, especially in utilities and clean-room support systems where device health visibility matters.
Water & wastewater facilities consolidating multi-vendor FF devices into DeltaV without custom gateways.
One thing I appreciate is how predictable it is during expansions—add a conditioned segment, set your terminators, and the DeltaV diagnostics typically show you immediately whether the segment is healthy.
Reliability – Series 2 builds are known for stable operation; fewer nuisance trips in many cases.
Compatibility – Native DeltaV backplane interface avoids external protocol converters and the headaches that come with them.
Lower Total Cost – Shared spares with other Series 2 I/O and reduced field wiring with H1 multi-drop can trim lifecycle costs.
Diagnostics & Maintenance – Segment health and device status help teams locate bad splices or power issues quickly.
Scalability – Easy to add segments during turnarounds without redesigning the control architecture.
Feedback from a maintenance supervisor at a petrochemical site: “Swapping a failed H1 card on the Series 2 carrier took minutes, and the segment came up clean—bus health looked good right away. That saved us a late-night callout.”
Installation & MaintenanceCabinet & environment – Mount on the DeltaV Series 2 carrier in a clean, ventilated control cabinet. Keep within 0–55 °C and avoid condensation.
Wiring – Use shielded twisted-pair FF cable; install exactly two terminators per segment (one at each end). Maintain proper grounding and segment power conditioning.
Power & safety – Backplane power is provided by the DeltaV system. For hazardous areas, select appropriate field barriers or intrinsically safe segment components.
Redundancy – Where high availability is required, deploy redundant modules and segregate segment power supplies.
Routine maintenance – Periodically review segment diagnostics in DeltaV, verify terminator integrity, check shield continuity, and keep the module/cabinet dust-free. Firmware updates, when available, should be scheduled during planned maintenance windows.
CE and UL/cUL compliance for industrial control equipment
RoHS-conformant materials, as typically provided for Series 2 modules
Manufactured under ISO 9001 quality systems
Standard warranty: 12 months (365 days)
If you’re expanding a FOUNDATION Fieldbus network or standardizing spares for DeltaV cabinets, the Emerson KJ3242X1-BA1 tends to be a safe, low-friction choice. Tell me your segment power plan and device count, and I can help validate the topology and ship from stock when available.
