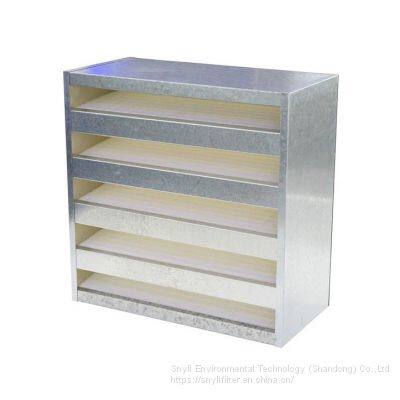

Box Type V-Cell Air Filter
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SNYLI
Place of Origin:
China
Dimension(L*W*H):
610×610×292×6V
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini Pleat HEPA Filter for Laminar Air Flow HoodsNegotiableMOQ: 1 Piece -
Mini Pleated Liquid Tank Gel Seal Hepa Air Filter For Clean RoomNegotiableMOQ: 1 Piece
-
Air Cleaner System Box Type Deep Pleat Laminar Flow Hood HEPA Air FilterNegotiableMOQ: 1 Piece
-
Box Type Metal Frame V Bank HEPA Air Filter For Gas TurbineNegotiableMOQ: 1 Piece
-
HEPA Air Filter With PTFE Filter PaperNegotiableMOQ: 1 Piece
Brand Name
SNYLI
Place of Origin
China
Dimension(L*W*H)
610×610×292×6V
Condition
New
Efficiency
H13,H14
Medium Material
Fiberglass
Filtration Grade
Hepa Filter
Construction
Box Filter
SPECIFICATIONS
| Frame: | Galvanized steel/Aluminum profile/ Stainless steel/ PP |
| Media: | Ultra fine glass fiber |
| Separator : | Hot melt adhesive |
| Std. EN1822:2009 : | H12/H13/H14 |
| Std. IEST RP-CC-001.5: | 2009 TYPE A (MERV 17) / TYPE C (MERV 18) / TYPE D (MERV 19) |
| Efficiency: | 99.97%,99.99%,99.999% at 0.3μm (DOP/PSL/PAO Counting method) |
| Maximum temperature: | 70ºC |
| Maximum relative humidity: | 100% |
| Application: | Mainly used for air conditioning purification equipment needs high ventilation,such as medium filter and terminal filter in air -conditioning system. |
ADVANTAGES
* Low pressure drop and high efficiency
* Extended surface design ensures low resistance to airflow and reduce energy cost.
* High velocities, variable air volumes high moisture
* Light weight
| Mode | Actual size W×H×D(mm) |
Air flow (m³/h) |
Initial pressure drop(Pa) |
Final pressure drop(Pa) |
|
| Box type | H4VH305610292 | 305×610×292 | 1700 |
249Pa Face velocity 0.85m/sec |
500Pa *Proposed value |
| H4VH610610292 | 610×610×292 | 3400 | |||
| Single Header type | H4VH287592292 | 287×592×292 | 1700 |
265Pa Face velocity 0.45m/sec |
220Pa *Proposed value |
| H4VH592592292 | 592×592×292 | 3400 |
|||
