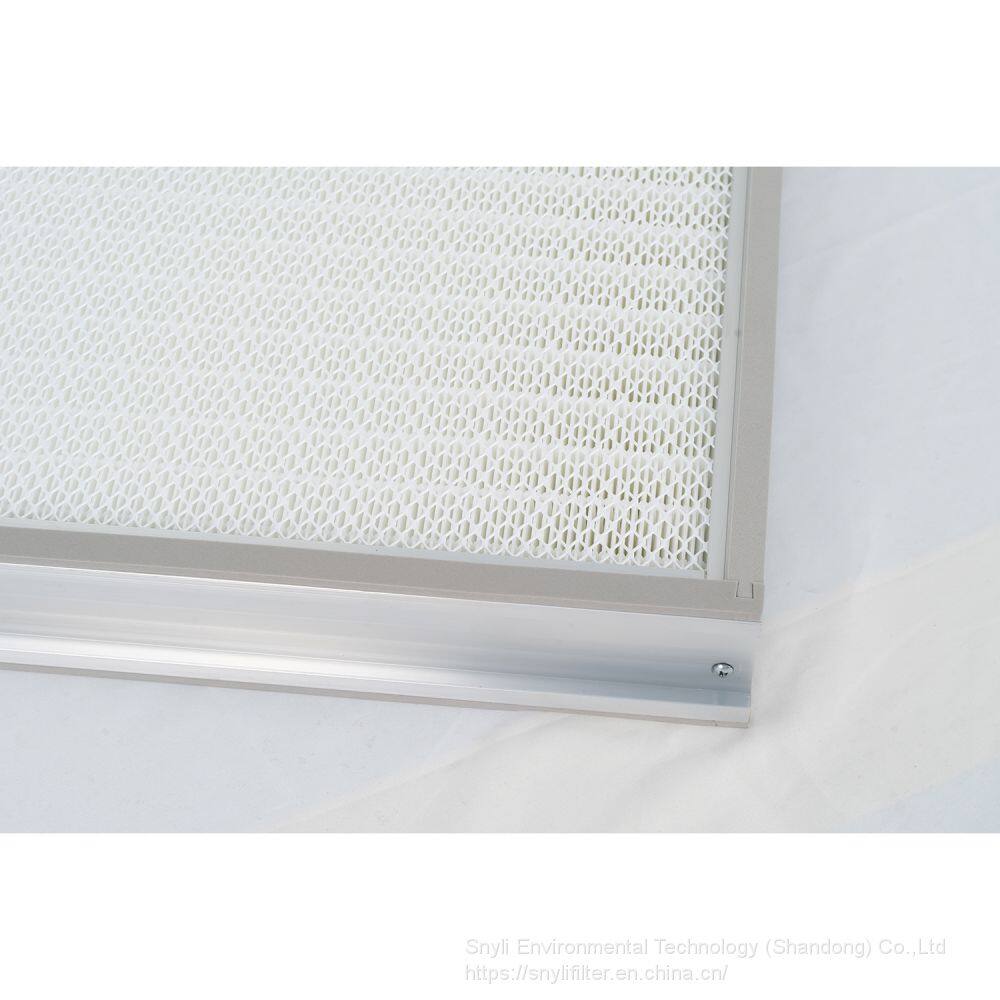

Mini Pleat HPEA ULPA Filter

Advantages

 Lower pressure drop

 Energy saving

 Lightweight & easy to install

 High sealing performance without leaking

Product Characteristics

Frame: Anodized aluminum

Media: Glass fiber

Efficiency:

H11 (EN 1822) / MERV 16 (ASHRAE 52.2)

MPPS:≥95% / DOP: ≥99.9%@0.3 μm

H13 (EN 1822) / MERV 17-18 (ASHRAE 52.2)

MPPS: ≥99.95% / DOP: ≥99.99%@0.3 μm

H14 (EN 1822) / MERV 19 (ASHRAE 52.2)

MPPS: ≥99.995% / DOP: ≥99.999%@0.3 μm

U15 (EN 1822)/MERV 20 (ASHRAE 52.2)

MPPS: ≥99.9995% / DOP: ≥99.9999%@0.12 μm

U16 (EN 1822)/MERV 20 (ASHRAE 52.2)

MPPS: ≥99.99995% / DOP: ≥99.99999%@0.12 μm

Separator: Hot melt

Sealant: EPDM

Max. Temperature: ≦ 70°C

Max. Humidity: ≦ 100% RH

Applications

Designed for clean rooms and FFU,Air shower and other air filtration equipment in applications, such as health care, commercial, educational and industrial buildings.
