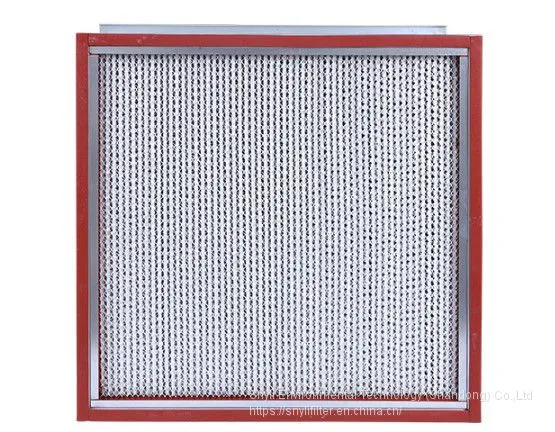

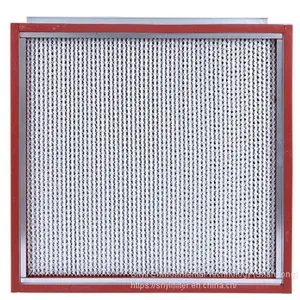

250℃ High Temp HEPA Filter

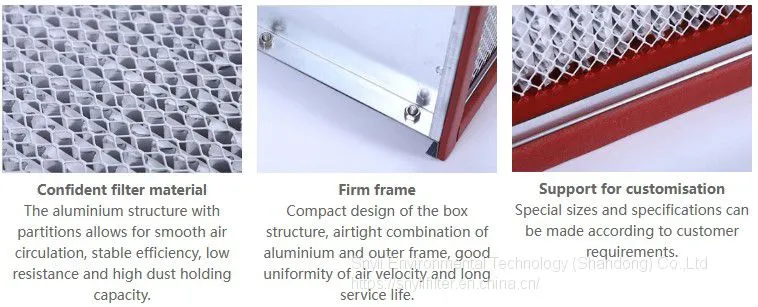

The 250℃ High Temp HEPA filters are constructed with 304 stainless steel frame,designed with Aluminium

Separator. The high temp media is completely pleated over corrugated aluminium separators to maintain pack

stability. The interlock design of frame with silicon sealant in the top and bottom to assure leak free performance

throughout the life of the filter.

 Control airflow under high humidity

 Hammed edges eliminate possible pleat damage

 Extend life span with low initial resistance

Frame: Galvanized, Aluminum & Stainless Steel

Header: Box type, Single/Double header

Media: High temp resistance Glass fiber

Efficiency:

H13 (EN 1822) / MERV 17-18 (ASHRAE 52.2)

MPPS: ≥99.95% / DOP: ≥99.99%@0.3 μm

H14 (EN 1822) / MERV 19 (ASHRAE 52.2)

MPPS: ≥99.995% / DOP: ≥99.999%@0.3 μm

Separator: Aluminum foil

Sealant: Silicon / Ceramic adhesive

Max operating Temperature: ≦ 250°C

Max Peak Temp: ≦ 300°C

Max. Humidity: ≦ 100% RH

The High temp air filters are often used in the final exhaust port of radioactive waste burning furnace and hot air

drying places with high purity in semiconductor industry, glue industry, medicine and so on.
