Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Low Voltage 0.6/1 Kv Power Cable Copper Conductor XLPE Insulation 240 Mm2

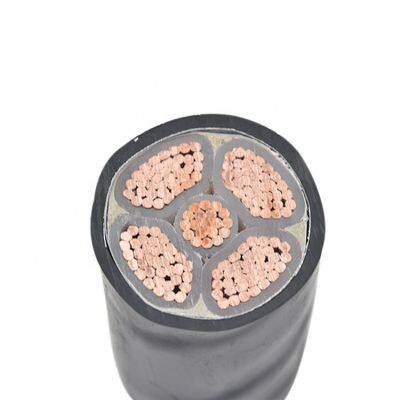

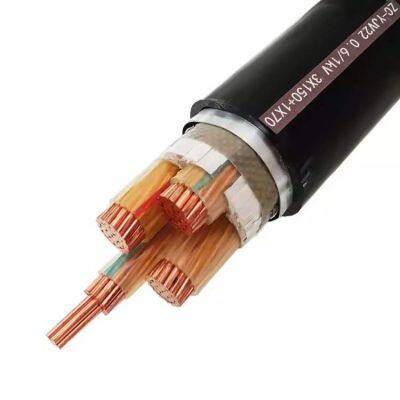

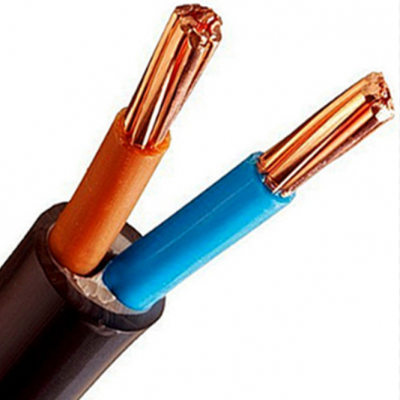

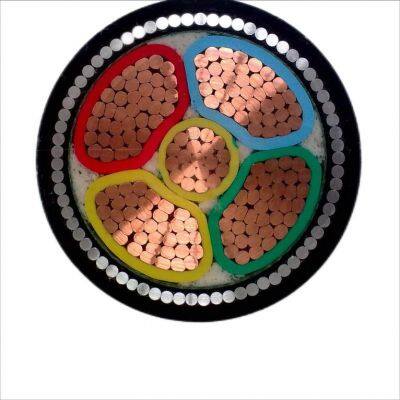

Low Voltage 0.6/1 Kv Power Cable Copper Conductor XLPE Insulation 240 Mm2
US$ 1 - 10
MOQ: 100 Meters
Key Specifications
Get Latest Price
Brand Name:
XinFeng
Place of Origin:
China
Type:
Low Voltage
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
7 days
Related Products
-
Standard Power Transmission Line Aluminum Overhead Bare Conductor AAC/AAAC/ACSRUS$ 1 - 10MOQ: 100 Meters -
Bare Stranded Soft Drawn Copper ConductorsUS$ 1 - 10MOQ: 100 Meters
-
Power CableNegotiableMOQ: 2300 Meters
-
Quick Connector for Power Cables – Dedicated to Cable FeedersUS$ 3 - 10MOQ: 5 Combos
-
Elevator Flexible Control Cable With Power CableNegotiableMOQ: 1
Brand Name
XinFeng
Place of Origin
China
Type
Low Voltage
Application
Underground
Insulation Material
XLPE
Jacket
PVC
Conductor Material
Copper
Our vision is simple but bold - we aspire to create the supply chain of the future to help our customers navigate the cable and to make life better for one billion people in the supply chain.
Low Voltage Power Cable Product Type
Type: YJV,YJLV / YJY,YJLY
Description: Copper or aluminum core XLPE insulated PVC sheathed power cable. / Copper or aluminum core XLPE insulated polyethylene sheathed power cable.
Mainapplications: For laying indoor and our door,unable to bear extemal mechanial force but the tractive force during laying.Laying single core cable in magnetic duct is not permissible.
Type:YJV22,YJLV22 / YJV23,YJLV23
Description:Copper or aluminum core XLPE insulated steel tape armored PVC sheathed power cable. / Copper or aluminum core XLPE insulated steel tape armored polyethylene sheathed power cable.
Mainapplications: For laying underground,able to bear external mechanical force,but unable to bear large pulling force.
Type:YJV32,YJLV32 / YJV33,YJLV33 / YJV42,YJV42 / YJV43,YJLV43
Description:Copper or aluminum core XLPE insulated thin steel wire armored PVC sheathed power cable. / Copper or aluminum core XLPE insulated thin steel wire armored polyethylene sheathed power cable. / Copper or aluminum core XLPE insulated thin steel wire armored PVC sheathed power cable. / Copper or aluminum core XLPE insulated thin steel wire armored polyethylene sheathed power cable.
Mainapplications:For laying underground along route with different level,able to bear external mechanical force and moderate pulling force.
APPLICATION
These cables are used for electricity supply in low voltage installation system, they are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
PPLICABLE STANDARD
The cables described are all standard types,and their performance has been proved in operation.All cable deigns,constructions,materials and tests outlined are covered mainly by one of the below AS/NZS publications,where applicable.Moreover,cables in accordance with any other national or international standards(e.g. IEC,BS,DIN,NEMA,ICEA,HD and VDE) are available and can be manufactured upon customer's request.
However，XinFeng can also supply a range of alternative designs to meet customer-specified requirements.
AS/NZS 5000.1: Electric cables - Polymeric insulated Part 1 : For working voltages up to and including 0.6/1(1.2)KV.
AS/NZS 5000.2: Test methods for electric cables,cords and conductors.
AS/NZS 3808 : Insulating and sheathing materials for electric cables.
AS/NZS 4507 : Cables-Fire performance.
Information to be provided with enquiry or order
To procide the best technical service to our valued customers,and to make sure that the offered cables are the most appropriate for the intended applications,the following information shoula be given with an enquiry or order:
a. the required design standard,if important;
b. length of cable required and individual drum lengths,if important;
c. voltage designation;
d. number of cores;
e. size of conductor;
f. conductor material ( i.e. copper or aluminium );
g. type of conductor ( i.e. stranded or solid,circular or shaped );
h. whether cable is liable to be exposed to any potentially aggressive environments ( e.g. water,oil or acid );
i. type of armour,if required ( i.e. wire armour or tape armour );
j. other special conditions or specific requirements.
