Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: OEM
Model Number: Power cable+2C
Type: Coaxial
Application: According to customers, CATV,CCTV systems
Color: White
Packing: Carton Box
Outer Diameter: 6.1mm
Connector Color: According to customers
Connector Type: According to customers
Shielding: Combination
Gender: According to customers
Inner conductor: Bare Copper/ CCA/CCS
Insulation: PE
1st Shielding: AL-Foil/Copper Color Foil/ Bare Copper Foil
2nd Shielding: Al-Mg Wire/ CCA/ Copper/ Tinned Copper
Outer Jacket: PVC/PE
Jacket Color: White/Black/ According to customers
Impedance: 75 Ohm
Delivery: Within 10 days
Certificate: CE/ROHS/ISO

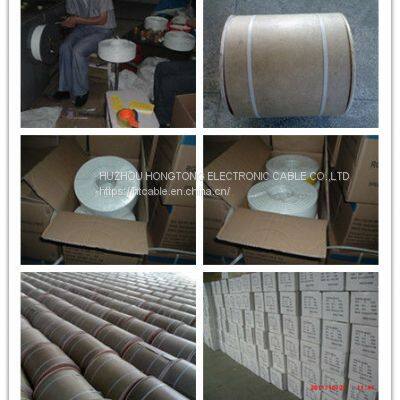

Packaging & Delivery
| Packaging Details: | 1. Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 500m/roll. 2. Inner packing: Wooden reel, plastic reel, and paper reel. 3. Outer packing: Carton box, pull out box, pallet available. 4. Other packing available according to client's request. |
|---|---|
| Delivery Detail: | Within 10 days for ready (depends on quantity) |
Specifications
CCTV Cable Rg59 Siamese cable power cable +2c
1.Good quality with best price
2.Timely delivery
3.CE, ROHS, ISO
4.OEM is OK
CCTV Cable Rg59 Siamese cable power cable +2c
Standard Specification :
0.81mm CCS/BC + 3.66mm FPE + AL/ pet Foil + 64*0.12mm Al Braiding +6.1mm PVC +2 Power Cables
Electrical Characteristics :
1) Characteristics Impedance: 75+/- 3 Ohms
2) Capacitance Conductor to Shield: 53.1 pF/m
3) Velocity of Propagation : 82%
4) Delay: 4.065 ns/m
5) Min.Structural Return Loss (5-3000MHz) : 20 dB
6) Max. Attenuation :
| @ Frequency (MHz) | dB/100 ft (MAX.) | dB/100 meters(MAX) |
| 5 MHz | 0.86 dB | 2.82dB |
| 55 MHz | 2.05dB | 6.73 dB |
| 211 MHz | 3.80dB | 12.47dB |
| 250 MHz | 4.09 dB | 13.45 dB |
| 270 MHz | 4.43 dB | 14.53 dB |
| 300 MHz | 4.45 dB | 14.60dB |
| 330 MHz | 4.66 dB | 15.29dB |
| 350 MHz | 4.80 dB | 15.76 dB |
| 400 MHz | 5.09dB | 16.73 dB |
| 450 MHz | 5.40dB | 17.72dB |
| 500 MHz | 5.69 dB | 18.70 dB |
| 550 MHz | 5.95 dB | 19.52 dB |
| 600 MHz | 6.19dB | 20.34dB |
| 750 MHz | 6.97 dB | 22.87dB |
| 870 MHz | 7.57 dB | 24.85 dB |
| 1000 MHz | 8.12 dB | 26.64dB |
Application :
1. Coaxial cable for CATV,CCTV systems
2. Plus F as connection cable
3. For satellite systems
