Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > NEMA MW1000 Solid Conductor Enameled Aluminium Wire for Renewable Energy Transformer Cable Magnet Wire Power Hamonic Power Cable

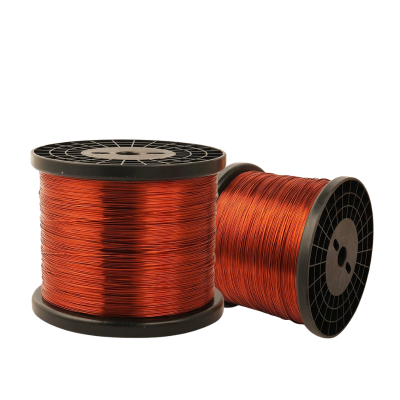

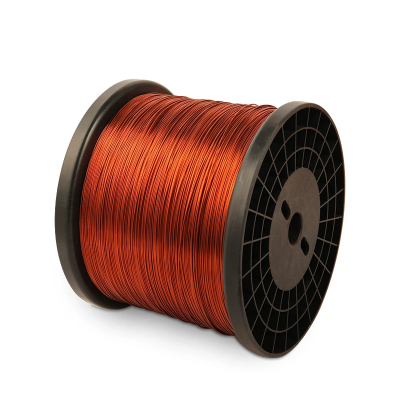

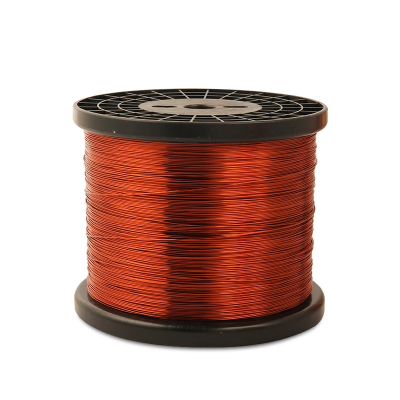

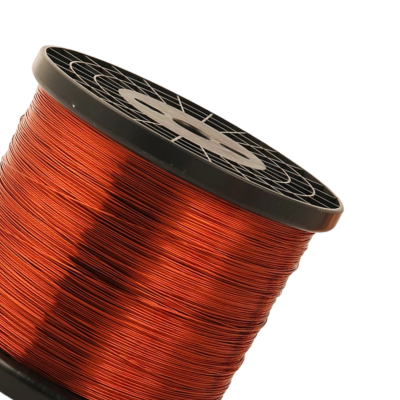

NEMA MW1000 Solid Conductor Enameled Aluminium Wire for Renewable Energy Transformer Cable Magnet Wire Power Hamonic Power Cable
US$ 3.59
500 - 4999 Kilograms
US$ 3.44
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated, Enameled Aluminum Wire
Certification:
ROHS
Insulation Material:
Enameled
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EIAIW 3.00 - 5.00mm CLASS C(200 220) Enameled Aluminium Wire for Motor TransformerUS$ 3.41 - 3.70MOQ: 500 Kilograms -
16 AWG Gauge Enameled Aluminum Magnet Wire Electric Magnet Enameled Transformer Wire 36 to 10 Gauges 30kg AWG Wire MagnetUS$ 3.01 - 3.89MOQ: 500 Kilograms
-
Heavy Round Magnet Wire Multi-purpose Film Insulation SWG Gauge Wire MagnetUS$ 3.01 - 3.89MOQ: 500 Kilograms
-
Superior Chemical Resistance Coil Excellent Dielectric Properties Winding Wire Heavy Round Magnet Wire MagnetUS$ 3.01 - 3.89MOQ: 500 Kilograms
-
High Voltage Performance Electric Wire Motor Accessory Wire Winding Coil Direct Supplier MagnetUS$ 3.01 - 3.89MOQ: 500 Kilograms
Certification
ROHS
Insulation Material
Enameled
Conductor Material
Aluminum
Conductor Type
Solid
Rated voltage
≥5000v
Model Number
0.2-6.0mm
Brand Name
YONGDONG
Place of Origin
Shandong, China
Product name
Enameled Wire
Standard
IEC,NEMA,GB,JIS
Size
Diameter: 0.2 -6.00mm
AWG
3-30
Packing Bobbin
PT25; PT30; PT60; PT200; PT270;etc.
Heat-resisting class
130(ClassB),180 (Class H);200 (Class C);220 (Class C+); 240(Class HC)
Insulation Thickness
-1;-2;-3
Product Overview
Enameled Round Wire（Aluminum）
Enameled round wire is one of main kinds of winding wires, Which is made of Copper/Aluminum Conductor with many kinds of
insulation varnish with different temperature resistance levels ,including:
insulation varnish with different temperature resistance levels ,including:
B130℃/F155℃/PEW- Polyester,
H180℃/EIW- Polyester-imide,
C200℃/ EI/AIW-Polyesterimide / Polyamideimide,
C220℃/AIW- Polyamideimide,
C240℃/PIW-Polyimide.Enameled wire
widely used for Transformers,generators ,motors ,reactors and many other electrial equipments winding coils .
There are 3 grades of insulation thickness of enameled round wire :Grade 1,2 and 3.
Size Range
Aluminum Enameled Round Wire: 0.2-6.0mm
Please Contact Us : If the Specifications are not in the above range .
There are 3 grades of insulation thickness of enameled round wire :Grade 1,2 and 3.
Size Range
Aluminum Enameled Round Wire: 0.2-6.0mm
Please Contact Us : If the Specifications are not in the above range .
No | Item | Data |
1 | Name | Aluminum Enameled Round Wire |
2 | Conductor | aluminum |
3 | Dimension | 0.2-6.00mm，Customize Available |
4 | Standard | IEC, NEMA, GB, JIS |
5 | Certification | UL,ISO,SGS,REACH,RoHs |
Thermal Class(℃) | 130(ClassB),155(Class F),180 (Class H);200 (Class C);220 (Class C+); 240(Class HC) | |
7 | Bobbin: | ,PT-15,PT-25,PT-45,PT-60,PT-90,PT-200,Wooden Spool ,Customize available |
8 | Insulation thickness: | Grade 1,2 and 3 |
High quality aluminum material
Uniform painting
finish product
Application
Company Profile
Certifications
Customer Photos
Our team
Product packaging
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Why Choose Us
High quality products:
Our factory has advanced production equipment and technology, especially our No.5 enameling machine, which has obtained the first patent in China to produce 6.0MM diameter enameled aluminum wire. This is the only machine in China that can produce 6.0MM wire diameter, strictly following international standards for production, ensuring stable and reliable product quality. We pay attention to every detail and strictly control every step to provide customers with high-quality products.
Diversified product lines:
Our factory has multiple product lines, covering various types and diameters of products. Whether it's automotive accessories,power transformers, household appliances, or industrial motors, we can provide products that meet customer needs. Customers can purchase various products in a one-stop shop, saving time and costs.
Flexible production capacity:
Our factory has the ability to quickly respond to customer needs. We have a flexible production line layout and production plan,which can be quickly adjusted and produced according to customer needs. Whether it's small-scale customization or large-scale production, we can efficiently complete it.
Excellent R&D team:
Our factory has a high-quality R&D team, constantly innovating technology and improving products. We cooperate with multiple universities and research institutions to continuously introduce new technologies, materials, and processes to enhance the competitiveness and market share of our products.
Good after-sales service:
Diversified product lines:
Our factory has multiple product lines, covering various types and diameters of products. Whether it's automotive accessories,power transformers, household appliances, or industrial motors, we can provide products that meet customer needs. Customers can purchase various products in a one-stop shop, saving time and costs.
Flexible production capacity:
Our factory has the ability to quickly respond to customer needs. We have a flexible production line layout and production plan,which can be quickly adjusted and produced according to customer needs. Whether it's small-scale customization or large-scale production, we can efficiently complete it.
Excellent R&D team:
Our factory has a high-quality R&D team, constantly innovating technology and improving products. We cooperate with multiple universities and research institutions to continuously introduce new technologies, materials, and processes to enhance the competitiveness and market share of our products.
Good after-sales service:
Our factory focuses on communication and cooperation with customers, providing comprehensive pre-sales
and after-sales services.Can provide timely and professional guidance and support to ensure customer satisfaction and continuous cooperation.
and after-sales services.Can provide timely and professional guidance and support to ensure customer satisfaction and continuous cooperation.
In summary,our factory has won the trust and praise of customers with high-quality products, diversified product lines, flexible production capacity, excellent R&D team, and good after-sales service, providing competitive solutions for customers and becoming a leader in the industry.
