TUV Single Core PV1-F Solar Photovoltaic Cable ManufacturerProduct Introduction

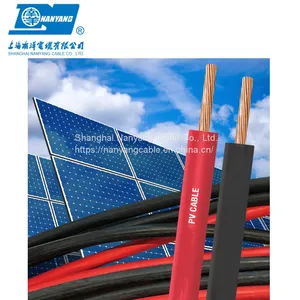

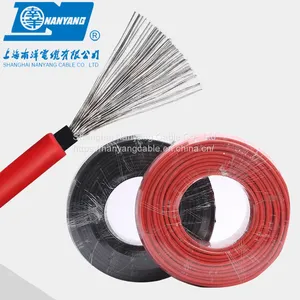

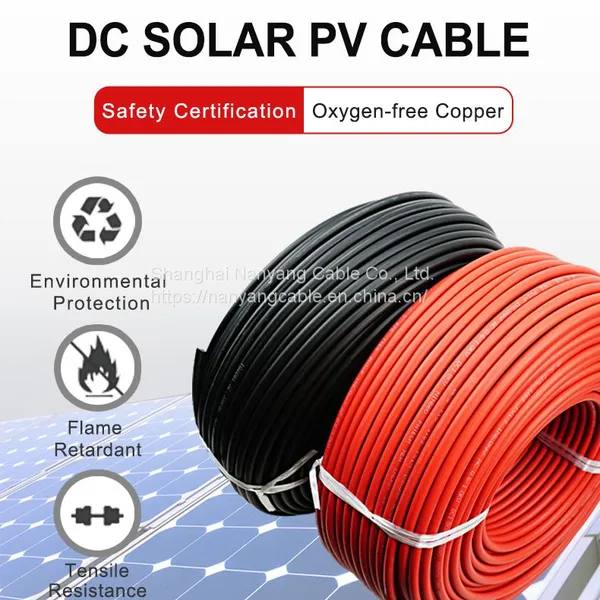

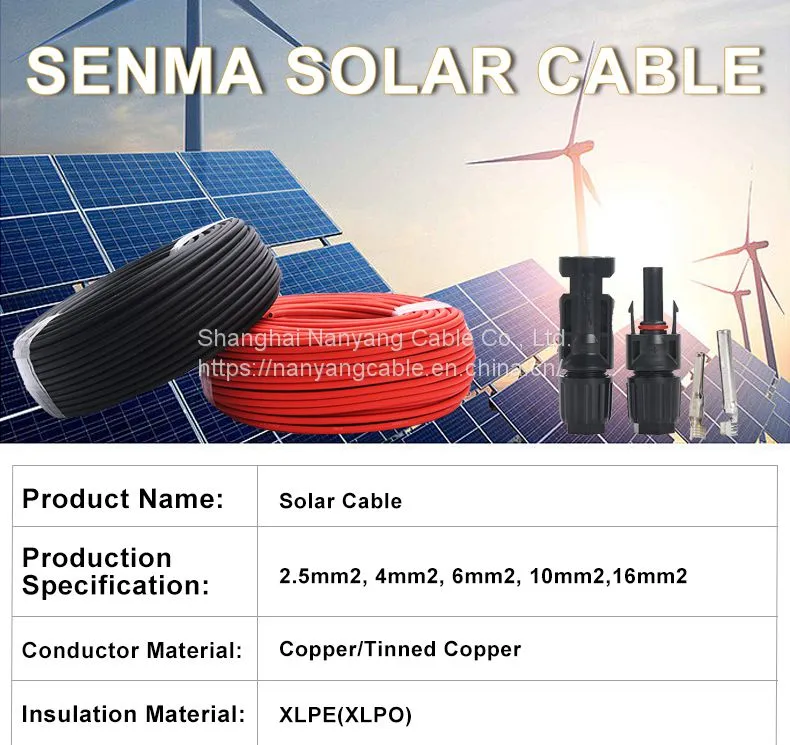

2PfG Photovoltaic Wire & Solar Power Cables TUV Approval
2PFG1169 standard for PV1-F 1 * 4 photovoltaic cables
Used for wiring and connection of solar power plants or facilities and equipment
Cross linked low smoke halogen-free flame retardant polyolefin double layer insulation
Product Introduction
PV1-F 1 × 4 Photovoltaic cables 2PfG 1169 standard
PV1-F SOLER CABLE
● Used for wiring and connection of solar power plants or facilities, equipment
Crosslinked low smoke halogen-free flame retardant polyolefin double layer insulation
Five types of stranded tinned copper wire
Maximum working temperature of conductor: 120 ℃
Product Characteristics
Low smoke, halogen-free, flame retardant, UV resistant, ozone resistant, weather resistant, anti-aging.
Product model:
PV1-F solar photovoltaic cable
Application standards:
2PFG-1169/08.2007

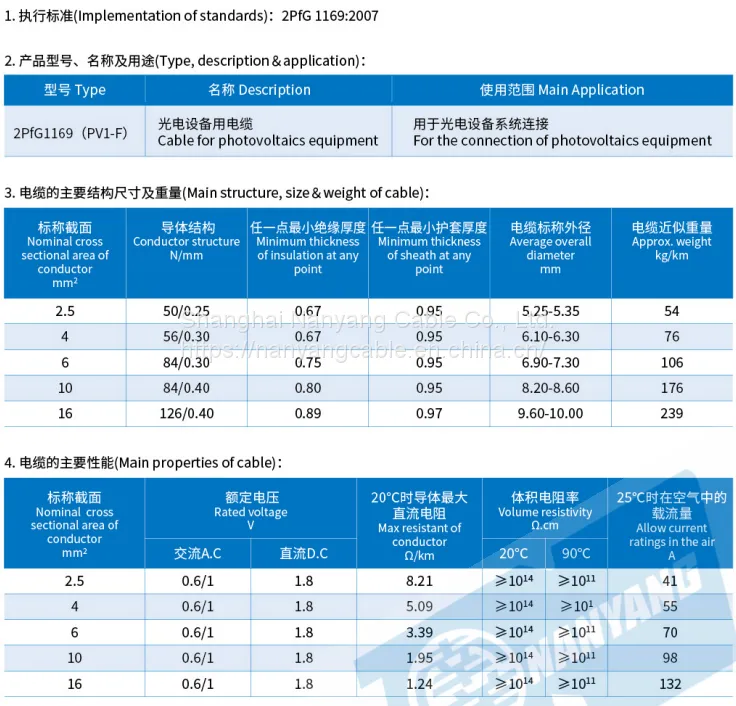

Cable Structure
Conductor: Class 5 stranded tinned copper wire conductor
Insulation: cross-linked low smoke halogen-free flame retardant polyolefin
Sheath: cross-linked low smoke halogen-free flame retardant polyolefin
Colors: black, red, black and white
Rated voltage: AC 0.6/1kV; DC Max 1.8kV
Temperature range: -40 ℃~+90 ℃
Maximum working temperature of conductor: 120 ℃
