Home > Products > Control Cable > PVC Insulated Control Cable Armor Cable or Not Armor Cable

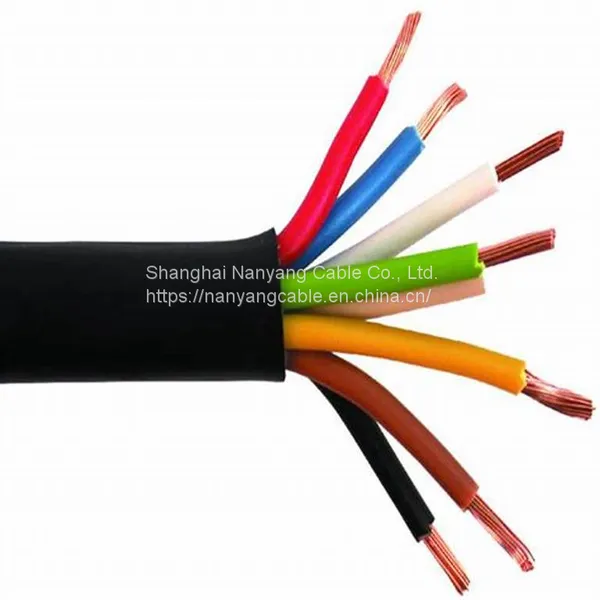

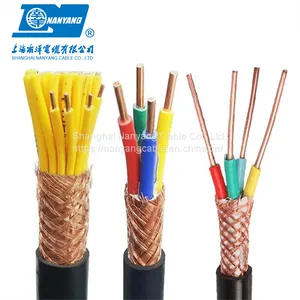

PVC Insulated Control Cable Armor Cable or Not Armor Cable
- 500 Kilometer / Kilometers per Month
- Shanghai
- T/T
- 15 days
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Brand Name: | Nanyang Cable | Place of Origin: | China | Model Number: | KVV、KVV22、KVVR、KVVR22 |
Type: | Low Voltage | Application: | Industrial | Insulation Material: | PVC |
Jacket: | PVC | Conductor Material: | Copper |
Product Description
PVC Insulated Control Cable Armor Cable or Not Armor Cable-KVV、KVV22、KVVR、KVVR22
Model types: KVV, KVV22, KVV32, KVVR, KVVR22, KVVR32
Rated voltage: 450/750V
Main use: mainly used for transmitting control, measurement signals, and other cables. Control cables are suitable for long-distance operation, control of furnaces, signal and protection measurement circuits in industrial and mining enterprises, modern high-rise buildings, etc. with mainstream and AC 50Hz, rated voltage of 450/750V, 600/1000V and below. As a connecting line between various electrical instruments and automation instrument devices, it plays a role in transmitting various electrical signals, ensuring the safe and reliable operation of the system. Armored type cables can effectively protect the cable core structure when subjected to external forces.
Type | Designation | Main applications |
KVV/KYJV | Copper conductor PVC/XLPE insulated PVC sheathed control cable | For fixed-laying indoors, in cable duct or conduit |
KVVP/KYJVP | Copper conductor XLPE/PVC insulated PVC sheathed braid screened control cable | For fixed-laying indoors, in cable duct or conduit upon screen requirement |
KVVP2/KYJVP2 | Copper conductor PVC/XLPE insulated PVC sheathed copper tape screened control cable | For fixed-laying indoors, in cable duct or conduit upon screen requirement |
KVV22/KYJV22 | Copper conductor PVC/XLPE insulated PVC sheathed steel tape armored control cable | For fixed-laying indoors, in cable duct direct-buried, able to bear larger mechanical forces |
KVV32/KYJV32 | Copper conductor PVC/XLPE insulated PVC sheathed fine steel wire armored control cable | For fixed-laying indoors, in cable duct, conduit or well, able to bear larger mechanical forces |
KVVR/KYJVR | Copper conductor PVC/XLPE insulated PVC sheathed control flexible cable | For laying indoors upon moveable requirement |
KVVRP/KYJVRP | Copper conductor PVC/XLPE insulated PVC sheathed braid screened control flexible cable | For laying indoors upon moveable and screen requirement |
Product note: Relevant functional identification can be added before the model, such as flame retardant functional identification. Flame retardant types are divided into three categories: ABC, and different flame retardant identification types are selected according to different occasions; The types of insulation cross-linking are divided into conventional cross-linking and irradiation cross-linking.
