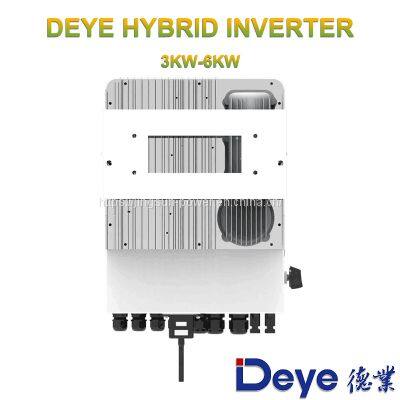

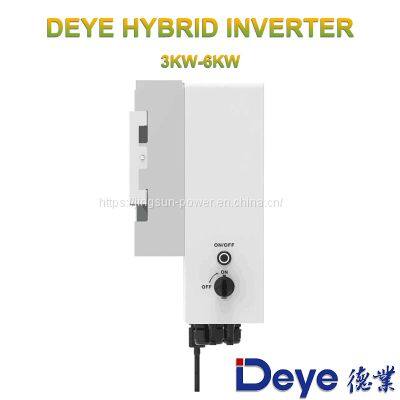

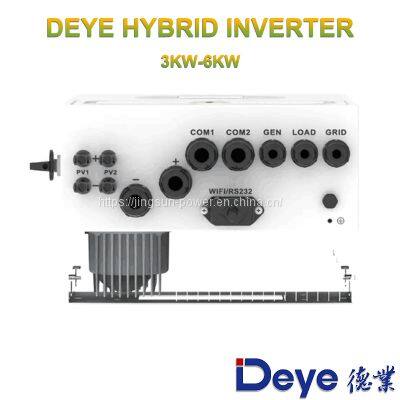

Help CenterDeye 3KW Hybrid Inverter
Related Products
Product Advantages
1. Efficient Power Management: The Deye 3KW Hybrid Inverter is equipped with efficient power management technology, providing users with the ability to easily monitor and track their energy usage. This ensures that energy is utilized in the most effective and efficient manner possible.

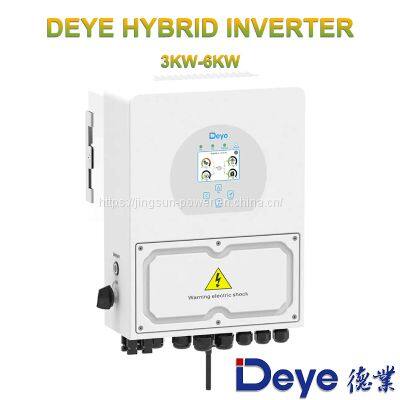

2. Colorful Touch LCD: The Inverter features a colorful touch LCD screen that allows users to easily monitor and control their system. The interface is user-friendly and enables easy navigation, making it simple for anyone to use.
3. High Protection Class: The Deye 3KW Hybrid Inverter features an IP65 protection class, which means that it is resistant to dust and water. This ensures that the Inverter is protected from the elements and can withstand even extreme weather conditions.
4. AC Coupling: The Inverter can be used to retrofit existing solar systems, making it a versatile and cost-effective solution. This feature allows users to easily integrate the Inverter into their existing system, saving time and money on installation costs.
5. High Charging & Discharging Capacity: The Deye 3KW Hybrid Inverter has a maximum charging/discharging current of 140A. This makes it capable of effectively managing and utilizing energy in larger systems. Its high capacity ensures that it can meet the power needs of a variety of applications.
Technical Data
Model |
SUN-3K -SG04LP1-24-EU |
SUN-3K -SG04LP1-EU |
SUN-3.6K -SG04LP1-EU |
SUN-5K -SG04LP1-EU |
SUN-6K -SG04LP1-EU |
Battery Input Data | |||||
Battery Type |
Lead-acid or Lithium-ion |
||||
Battery Voltage Range (V) |
20-30 |
40-60 |
40-60 |
40-60 |
40-60 |
Max. Charging Current (A) |
140 |
70 |
90 |
120 |
135 |
Max. Discharging Current (A) |
140 |
70 |
90 |
120 |
135 |
External Temperature Sensor |
Yes |
||||
Charging Curve |
3 Stages / Equalization |
||||
Charging Strategy for Li-Ion Battery |
Self-adaption to BMS |
||||
PV String Input Data | |||||
Max. DC Input Power (W) |
3900 |
3900 |
4680 |
6500 |
7800 |
Rated PV Input Voltage (V) |
370 (125-500) |
||||
Start-up Voltage (V) |
125 |
||||
MPPT Voltage Range (V) |
150-425 |
||||
Full Load DC Voltage Range (V) |
300-425 |
||||
PV Input Current (A) |
13 |
13+13 |
|||
Max. PV ISC (A) |
17 |
17+17 |
|||
No.of MPP Trackers |
1 |
2 |
|||
No.of Strings per MPP Tracker |
1 |
1+1 |
|||
AC Output Data | |||||
Rated AC Output Active Power (W) |
3000 |
3000 |
3600 |
5000 |
6000 |
Max AC Output Active Power (W) |
3300 |
3300 |
3960 |
5500 |
6600 |
AC Output Rated Current (A) |
13.6/13 |
13.6/13 |
16.4/15.7 |
22.7/21.7 |
27.3/26.1 |
Max. AC Current (A) |
15/14.3 |
15/14.3 |
18/17.2 |
25/23.9 |
30/28.7 |
Max. Continuous AC Passthrough (A) |
35 |
40 |
|||
Peak Power (off grid) |
2 time of rated power, 10 S |
||||
Power Factor Adjustment Range |
0.8 leading to 0.8 lagging |
||||
Power Factor |
1 |
||||
Output Frequency and Voltage |
50/60Hz; L/N/PE 220/230Vac |
||||
Grid Type |
Single Phase |
||||
Total Harmonic Distortion (THD) |
|||||
DC Current Injection |
|||||
Efficiency | |||||
Max. Efficiency |
97.60% |
||||
Euro Efficiency |
96.50% |
||||
MPPT Efficiency |
99.90% |
||||
