Model:SRM264 single needle bed warp knitting machine
Applications:

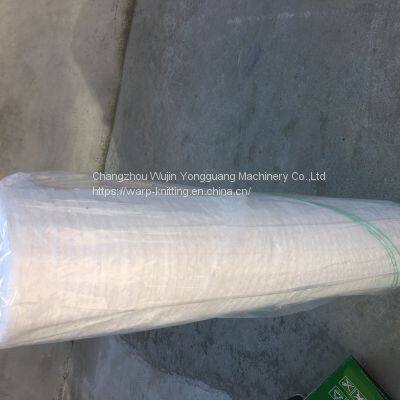

This machine is suitable to manufacturing bale wrap net by using PP,PE,HDPE as raw material. It can also produce shade net, building-safety net ,farming net, olive net, wind and dust net, anti-hail net if you changing some parts.
Features:
1. Open cam drive ,simple structure ,easy operation and stable performance
2. Heavier machine and lower gravity center to ensure the safety and stability of operation.
3. Lower noise and vibration.
4. Adopt helical tooth gear box to assist motor working, so the motor power is smaller and save power consumption.
5. Using Variable speed motor to replace variable gear ,it’s convenient and clean .
Specifications：
1. Gauge：E2,E3,E4,E6,E7,E9,E12(needles/inch)
2. Needle：Latch needle（latch needle piece/embedded needle ）
3.Working width：170”(4500MM),212”(5500MM),258”(6500MM)
264”(6700MM),330”(8500MM),430”(11000MM),510”(13000MM)
4.Bars：2-4bars
5.RPM：350-500
6.Yarn let-off system：variable speed motor
7.Batching device：combination/Free standing batching device
8.Pattern drive：Pattern cam
Model |
Main motor（kw） |
Machine size（mm） |
Installed size (mm) and required area |
Gross weight（kgs） |
SRM170 |
4 |
6000×1500×2000 |
7000×7000；49M2 |
8000 |
SRM212 |
4 |
7200×1600×2000 |
8000×7000；56M2 |
10000 |
SRM264 |
4 |
8300×1600×2000 |
9000×7000；63M2 |
11500 |
SRM330 |
5.5 |
10100×1700×2200 |
11200×7000；78.4M2 |
19000 |
SRM430 |
7.5 |
12500×1700×2200 |
13500×7000；94.5M2 |
22000 |
SRM510 |
7.5 |
14500×1700×2200 |
15500×7000；108.5M2 |
26000 |
