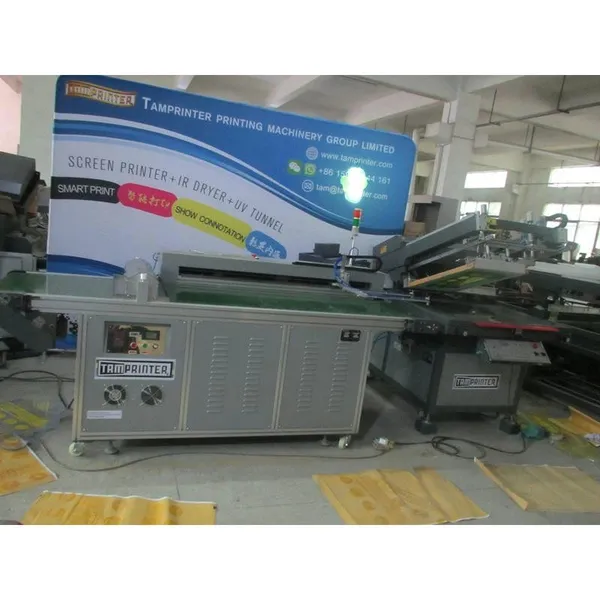

LED UV Ink Automatic Screen Printing Machine for Plastic Sheet
- 50 Set / Sets per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- Flat Paper Automatic Screen Printer with Robot TM-Z5-H
- Automatic Vertical Screen Printer Machine
- A4 Thin EL Panels Auto UV Screen Printing Machine
- Fully Automatic Membrane Switch Screen Printing Line
- High Quality Fully Automatic Membrane Switch Screen Printing Machine Line
- Fully Automatic Membrane Switch Screen Printing Set
Product Details
Brand Name: | Tamprinter | Place of Origin: | China | Model Number: | TM-Z5 |
After-sales Service Provided: | Overseas third-party support available | Condition: | New |
Packaging Details
this cheap under price screen printer will be packaged by wooden box/iron box/carton/plywood as required
Product Description
TMP-70100 oblique arm screen printing machine
Model No. | TMP-70100 |
Workbench area | 800X1100mm |
Max printing area | 700X1000mm |
Max screen size | 1000X1300mm |
Min screen size | 550X650mm |
Thickness of print (mm) | 0-20mm |
Source power (kw) | 2.3 |
Rated voltage (v/hz) | 220/50 |
Printing speed (pcs/h) | 500-1200 |
Machine size(mm) | 1650X1220X1300mm |
Plywood | 1.8X1.37X1.5m 3.7CBM |
Max table height | 820 |
weight | 480kg |
TM-LED800 film LED UV tunnel dryer | |
Power supply | single-phase 220V 50HZ 1.6kw |
Irradiation width | 800mm Teflon Belt |
Cooling system | water-cooled system |
Water-cooled machine size: | 470 mm * 260 mm * 260 mm |
Machine Dimensions (LXWXH) | 2m*1m*1.1m |
Weight | 220KG |
The light measurement range of values | 1000-9500mJ / cm2 |
Led | 395 nm (2800 mw/cm2~3600 mw/cm2 |
Application:
Flat Screen Printer of this series is widely used in the packaging industry (cigarette packaging, wine packaging, gift packaging and other card paper printing) trademark, calendar, oil painting, computer keyboards, paintings, iron-on transfers, credit cards, stickers, printing; also suitable for the printing of the electronics industry.
TMP-70100 oblique arm screen printing machine Features:
(1). Printing machine is driven by motor drive, which is belt drive, sensitive, balanced speed, speed adjustable.
(2). Oblique arm lifting motor, frequency control, the machine runs smoothly.
(3). Blade and back blade pressure regulating device, and can be adjusted to the thickness and size of printing.
(4). Vacuum adsorption fixed printing pieces.
(5). The printing plate has up and down, left and right, before and after tuning device, which makes it works accurate and convenient on board.
(6). Equipped with a safety device so that the oblique arm is stopped in an upper position having a reliable security.
(7). Electronic control unit centralized control by the microcomputer controller, the whole operation more simple, flexible, and easy maintenance.
UV LED advantages
2.2.1, long life: life is a traditional mercury lamp of type of curing machine more than 10 times, about 25000-30000 hours.
2.2.2, cold light source, no radiation, according to the product surface of low temperature, heat damage to solve the long existing in optical communication, LCD production problems. Especially suitable for LCD sealing side requiring small temperature, film printing and so on.
2.2.3, calorific value is small, can solve the great calorific value of mercury lamp spray equipment and personnel intolerable.
2.2.4, instant light, do not need to preheat immediately reached 100% uv output power.
2.2.5, life is not affected by the number of open and close.
2.2.6, high energy, light output stability, uniform irradiation effect is good, improve production efficiency.
2.2.7, can be customized effective radiation area, from 20 mm to 1000 mm in length.
2.2.8, do not contain mercury, also won't produce ozone, replacement of traditional light source technology is a safer, more environmentally friendly option.
2.2.9, low energy consumption, power consumption is only 10% of the traditional mercury lamp type curing press, can save 90% energy.
2.2.10, maintenance cost is almost zero, use UVLED curing equipment to save at least 10000 yuan a year/material fee.
Quality control:
we will do a test before delivery, for instance, let the machine work without products so that checkout the performance, ensuring the quality.
FQA:
1, Why do you choose us?
1)We are specializing in pad printing machine and screen printing machine for more than 15 years experience and we have a great team to control quality.
2)Pad printing machine and screen printing machine passed CE certification
Related Products:
Maquina de impressao da tela
maquina de led uv
Company Profile
Tamprinter printing machinery group limited is one of the most professional special printer supplier of Plastic Field in China. We have supplied OEM service for the domestic counterparts since 2003. OEM products have been achieved CE certification.
Due to business expansion, Shenzhen Tamprinter printing machinery limited International trade department have been separated from the parent company in March 2013.
Key products: Pad printer, Screen printer, UV curing machine, Heat transfer machine.
Major market: Globle.
Business scopes:
1. Research, develop, produce and sell: Pad printer, Screen printer, Heat transfer machine, Hot stamping machine, Pre-post printer(UV curing machine, Flame treatment machine ,UV exposure clich machine, Coating emulsion machine, Silk mesh tighten machine, Screen stencil drying oven, Silk screen frame exposure machine, Steel pad plate oven, IR oven, IR drying tunnel conveyer, ) ;
2. Trade and authorize for the patent of the above products, Services about design, testing, maintenance, and technical consulting ;
3. Valet Manufacture: flame treatment gun,screen frame, Screen Stencil,pad, steel plates, film , Drying Racks Trolley and the relative moulds, jigs and parts;
4. Sale by proxy the relative supporting materials: printing ink, Ink Adjustment tool, Rubber pads Materials, Pad Printing Blade, ink cup and ring, Pad holder, ink roller, Screen Silk, Aluminium Screen Frame, Rubber Squeegee, sensitive emulsion, Emulsion Coating tool, Etching powder, Sensor Switch, Tension meter,Spraying gun, Circuit board, Inkwell, Solenoid Valve, hot stamping foil ,High temperature tape,Stamp plate,Silicon rubber roller,Heat transfer paper,High temperature glue, UV lamp ,UV lamps Trigger etc;
5. Our engineer can communicate with clients at anytime in english, design development use UG, Proe, Autocad, Mastercam ;
6. Import and export business of the above items.
