Fully Automatic Membrane Switch Screen Printing Set
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Tamprinter
Place of Origin:
China
Model Number:
TAM-Z2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Vertical Sheet Silk Screen Printer With UV DryerNegotiableMOQ: 1 Set -
Plastic Sheet Clean Room Screen Printing EquipmentNegotiableMOQ: 1 Set
-
CE Auto Flat Take off PVC Film Screen Printing MachineNegotiableMOQ: 1 Set
-
Ceramic Decal Plastic Film Professional Anti-Wrinkle Screen PrinterNegotiableMOQ: 1 Set
-
Paper Automatic Screen Printing KitNegotiableMOQ: 1 Piece
Brand Name
Tamprinter
Place of Origin
China
Model Number
TAM-Z2
Condition
New
Product Description
TAM-Z2 Automatic Membrane Switch Screen Printing Set
Performance & Features
1. This line is composed of vertical screen printer, UV dryer and collecting device.
2. It is a fully automatic production line which takes off material automatically.
3. After printing finished, robot arm will suck and pull out the printing material, then send it to next working procedure (drying and products collecting).
4. It can not only save human labor, but also improve working efficiency of printing machines.
5. It applies to printing on membrane switch, sheet metal, plastic, plastic film etc.
About Us:
Tamprinter printing machinery group limited is one of the most professional special printer supplier of Plastic Field in China. We have supplied OEM service for the domestic counterparts since 2005. OEM products have been achieved CE certification.
Due to business expansion, Shenzhen Tamprinter printing machinery limited International trade department have been separated from the parent company in March 2013.
Key products: Pad printer, Screen printer, UV curing machine, Heat transfer machine.
Business scopes:
1. Research, develop, produce and sell: Pad printer, Screen printer, Heat transfer machine, Hot stamping machine, Pre-post printer(UV curing machine, Flame treatment machine, UV exposure clich machine, Coating emulsion machine, Silk mesh tighten machine, Screen stencil drying oven, Silk screen frame exposure machine, Steel pad plate oven, IR oven, IR drying tunnel conveyer );
2. Trade and authorize for the patent of the above products, Services about design, testing, maintenance, and technical consulting;
3. Valet Manufacture: flame treatment gun, screen frame, Screen Stencil, pad, steel plates, film, Drying Racks Trolley and the relative moulds, jigs and parts;
4. Sale by proxy the relative supporting materials: printing ink, Ink Adjustment tool, Rubber pads Materials, Pad Printing Blade, ink cup and ring, Pad holder, ink roller, Screen Silk, Aluminium Screen Frame, Rubber Squeegee, sensitive emulsion, Emulsion Coating tool, Etching powder, Sensor Switch, Tension meter, Spraying gun, Circuit board, Inkwell, Solenoid Valve, hot stamping foil, High temperature tape, Stamp plate, Silicon rubber roller, Heat transfer paper, High temperature glue, UV lamp, UV lamps Trigger etc;
5. Our engineer can communicate with clients at anytime in English, design development use UG, Proe, Autocad, Mastercam;
6. Import and export business of the above items.
Advantages :
1. All the electrical components and control system are from Germany and Japan, guarantee the stable quality of the print.
2. Multi-purpose microcomputer operating panel and touch screen operation can easily achieve man-machine dialogue.
3. As high quality steel frame structure and High temperature of the lacquer that bake, so that our printer is light and solid, beautiful and practical.
Our first-class products and considerate services have won more than 80 countries, acceptance in Europe and the United States, Canada, Southeast Asia, the Middle East and other customer, and we enjoyed a high reputation in the market. We cooperate with Omron, Emerson and Ruigao light, which are the world famous enterprises.

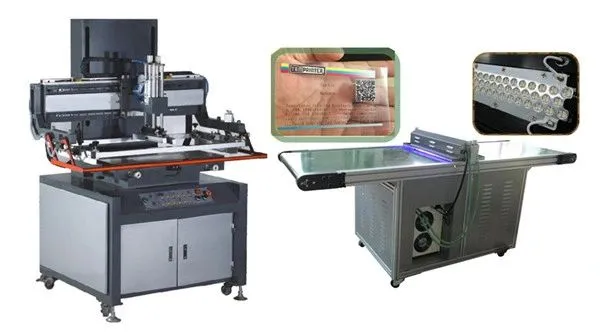

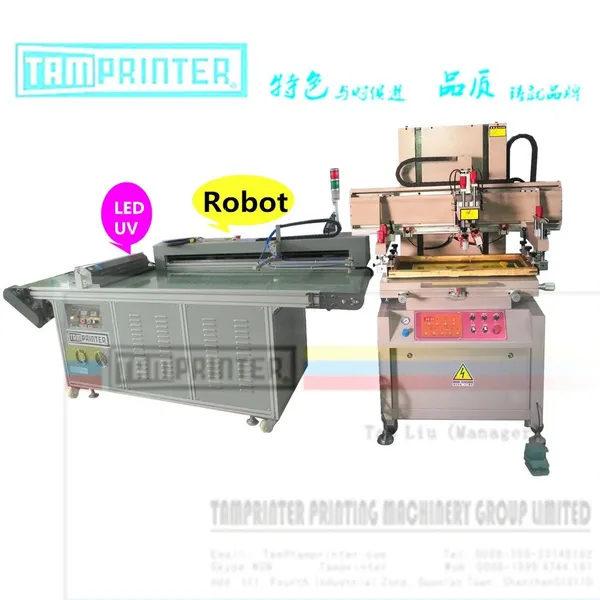

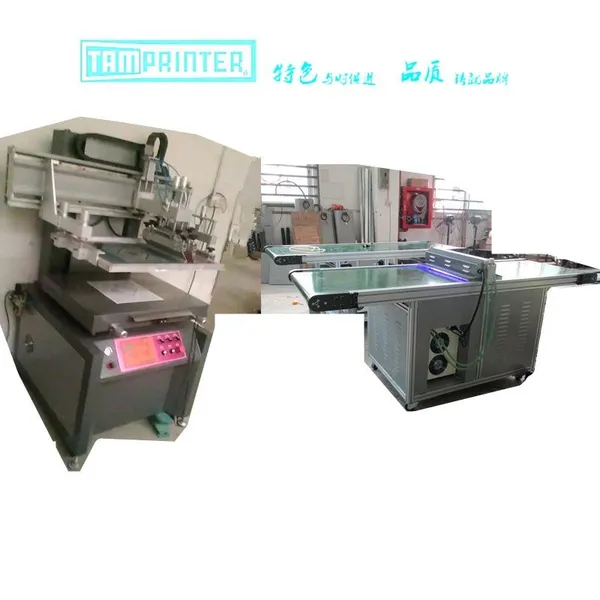

Product Image
Welcome to contact us if you have any question!
| Plate Type | Screen Printer |
| Condition | New |
| Place of Origin | Shenzhen, China (Mainland) |
| Brand Name | Tamprinter |
| Model Number | TAM-Z2 |
| Usage | membrane switch, sheet metal, plastic etc |
| Automatic Grade | Fully Automatic |
| Color & Page | Single Color |
| Certification | CE |
| Warranty | 1.5year |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Packaging | plywood |
| Delivery Detail | Within 30 days after order confirmation |
Techincal Parameter:
| Item | Description |
| TM-3045Z Vertical screen printer with robot arm |
Worktable area: 400X450mm Max printing area: 300X450mm Max screen fame size : 550X720mm Substrate thickness (mm):less than 40mm Printing speed (pcs/h):900 Working pressure(Mpa):4.0-6.0 Machine size(mm): 980X820X1580mm 2CBM weight:280kg Rated voltage(P/V/Hz) 3/380/50 Source power: 380V/1.5kw Free fitting clamp 300mm--1pcs,tinge 320mm---1pcs; clamp 450--1pcs,tinge 470mm--1pcs. Tool box |
| TM-UV400-L varnish Machine |
Conveyorbelt width(mm) 380 Effective range (mm) 400 Max thickness of cured (mm) 40 Conveyor speed (m) 2~20 Power(P/V/Hz) 3/380/50 UV lamp(KW/2pcs)5.6 Driving power(W) 60 Total power(KW) 13 Dimension(L*W*H) 4200*700*1200 5.2CBM Weight(kg) 350 Free fitting - 1 X speed regulator |
| Collecting device |
|
Performance & Features
1. This line is composed of vertical screen printer, UV dryer and collecting device.
2. It is a fully automatic production line which takes off material automatically.
3. After printing finished, robot arm will suck and pull out the printing material, then send it to next working procedure (drying and products collecting).
4. It can not only save human labor, but also improve working efficiency of printing machines.
5. It applies to printing on membrane switch, sheet metal, plastic, plastic film etc.
About Us:
Tamprinter printing machinery group limited is one of the most professional special printer supplier of Plastic Field in China. We have supplied OEM service for the domestic counterparts since 2005. OEM products have been achieved CE certification.
Due to business expansion, Shenzhen Tamprinter printing machinery limited International trade department have been separated from the parent company in March 2013.
Key products: Pad printer, Screen printer, UV curing machine, Heat transfer machine.
Business scopes:
1. Research, develop, produce and sell: Pad printer, Screen printer, Heat transfer machine, Hot stamping machine, Pre-post printer(UV curing machine, Flame treatment machine, UV exposure clich machine, Coating emulsion machine, Silk mesh tighten machine, Screen stencil drying oven, Silk screen frame exposure machine, Steel pad plate oven, IR oven, IR drying tunnel conveyer );
2. Trade and authorize for the patent of the above products, Services about design, testing, maintenance, and technical consulting;
3. Valet Manufacture: flame treatment gun, screen frame, Screen Stencil, pad, steel plates, film, Drying Racks Trolley and the relative moulds, jigs and parts;
4. Sale by proxy the relative supporting materials: printing ink, Ink Adjustment tool, Rubber pads Materials, Pad Printing Blade, ink cup and ring, Pad holder, ink roller, Screen Silk, Aluminium Screen Frame, Rubber Squeegee, sensitive emulsion, Emulsion Coating tool, Etching powder, Sensor Switch, Tension meter, Spraying gun, Circuit board, Inkwell, Solenoid Valve, hot stamping foil, High temperature tape, Stamp plate, Silicon rubber roller, Heat transfer paper, High temperature glue, UV lamp, UV lamps Trigger etc;
5. Our engineer can communicate with clients at anytime in English, design development use UG, Proe, Autocad, Mastercam;
6. Import and export business of the above items.
Advantages :
1. All the electrical components and control system are from Germany and Japan, guarantee the stable quality of the print.
2. Multi-purpose microcomputer operating panel and touch screen operation can easily achieve man-machine dialogue.
3. As high quality steel frame structure and High temperature of the lacquer that bake, so that our printer is light and solid, beautiful and practical.
Our first-class products and considerate services have won more than 80 countries, acceptance in Europe and the United States, Canada, Southeast Asia, the Middle East and other customer, and we enjoyed a high reputation in the market. We cooperate with Omron, Emerson and Ruigao light, which are the world famous enterprises.
Product Image
Welcome to contact us if you have any question!
