Fully Automatic Membrane Switch Screen Printing Line
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Tamprinter
Place of Origin:
China
Model Number:
TAM-Z2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Fully Automatic Membrane Switch Screen Printing Machine LineNegotiableMOQ: 1 Set -
Fully Automatic Membrane Switch Screen Printing SetNegotiableMOQ: 1 Set
-
Automatic Vertical Sheet Silk Screen Printer With UV DryerNegotiableMOQ: 1 Set
-
Plastic Sheet Clean Room Screen Printing EquipmentNegotiableMOQ: 1 Set
-
CE Auto Flat Take off PVC Film Screen Printing MachineNegotiableMOQ: 1 Set
Brand Name
Tamprinter
Place of Origin
China
Model Number
TAM-Z2
After-sales Service Provided
Overseas third-party support available
Condition
New
Product Description
TAM-Z2 Automatic Membrane Switch Screen Printing Set
Plate Type: Screen Printer
Condition: New
Place of Origin: Shenzhen, China (Mainland)
Brand Name: Tamprinter
Model Number: TAM-Z2
Usage: membrane switch, sheet metal, plastic etc.
Automatic Grade: Fully Automatic
Color & Page: Single Color
Certification: CE
Warranty: 1.5year
After-sales Service Provided:
Engineers available to service machinery overseas
Packaging: plywood
Delivery Detail: Within 30 days after order confirmation
Technical parameters:
TM-3045Z Vertical screen printer with
robot arm
Worktable area: 400X450mm
Max printing area: 300X450mm
Max screen fame size : 550X720mm
Substrate thickness (mm):less than 40mm
Printing speed (pcs/h):900
Working pressure(Mpa):4.0-6.0
Machine size(mm): 980X820X1580mm
2CBM
weight:280kg
Rated voltage(P/V/Hz) 3/380/50
Source power: 380V/1.5kw
Free fitting
clamp 300mm--1pcs,tinge 320mm---1pcs;
clamp 450--1pcs,tinge 470mm--1pcs.
Tool box
TM-UV400-L varnish Machine
Conveyorbelt width(mm) 380
Effective range (mm) 400
Max thickness of cured (mm) 40
Conveyor speed (m) 2~20
Power(P/V/Hz) 3/380/50
UV lamp(KW/2pcs)5.6
Driving power(W) 60
Total power(KW) 13
Dimension(L*W*H) 4200*700*1200
5.2CBM
Weight(kg) 350
Free fitting
- 1 X speed regulator
Performance & Features

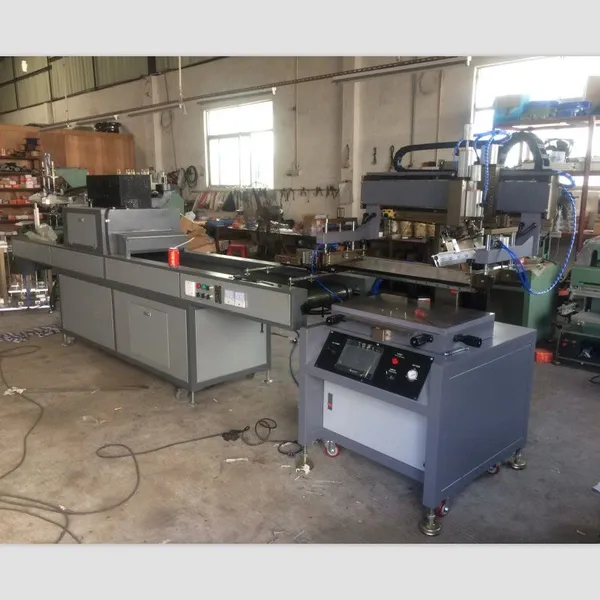

1. This line is composed of vertical screen printer, UV dryer and collecting device.
2. It is a fully automatic production line which takes off material automatically.
3. After printing finished, robot arm will suck and pull out the printing material, then send it to next working procedure (drying and products collecting).
4. It can not only save human labor, but also improve working efficiency of printing machines.
5. It applies to printing on membrane switch, sheet metal, plastic, plastic film etc.
Plate Type: Screen Printer
Condition: New
Place of Origin: Shenzhen, China (Mainland)
Brand Name: Tamprinter
Model Number: TAM-Z2
Usage: membrane switch, sheet metal, plastic etc.
Automatic Grade: Fully Automatic
Color & Page: Single Color
Certification: CE
Warranty: 1.5year
After-sales Service Provided:
Engineers available to service machinery overseas
Packaging: plywood
Delivery Detail: Within 30 days after order confirmation
Technical parameters:
TM-3045Z Vertical screen printer with
robot arm
Worktable area: 400X450mm
Max printing area: 300X450mm
Max screen fame size : 550X720mm
Substrate thickness (mm):less than 40mm
Printing speed (pcs/h):900
Working pressure(Mpa):4.0-6.0
Machine size(mm): 980X820X1580mm
2CBM
weight:280kg
Rated voltage(P/V/Hz) 3/380/50
Source power: 380V/1.5kw
Free fitting
clamp 300mm--1pcs,tinge 320mm---1pcs;
clamp 450--1pcs,tinge 470mm--1pcs.
Tool box
TM-UV400-L varnish Machine
Conveyorbelt width(mm) 380
Effective range (mm) 400
Max thickness of cured (mm) 40
Conveyor speed (m) 2~20
Power(P/V/Hz) 3/380/50
UV lamp(KW/2pcs)5.6
Driving power(W) 60
Total power(KW) 13
Dimension(L*W*H) 4200*700*1200
5.2CBM
Weight(kg) 350
Free fitting
- 1 X speed regulator
Performance & Features
1. This line is composed of vertical screen printer, UV dryer and collecting device.
2. It is a fully automatic production line which takes off material automatically.
3. After printing finished, robot arm will suck and pull out the printing material, then send it to next working procedure (drying and products collecting).
4. It can not only save human labor, but also improve working efficiency of printing machines.
5. It applies to printing on membrane switch, sheet metal, plastic, plastic film etc.
