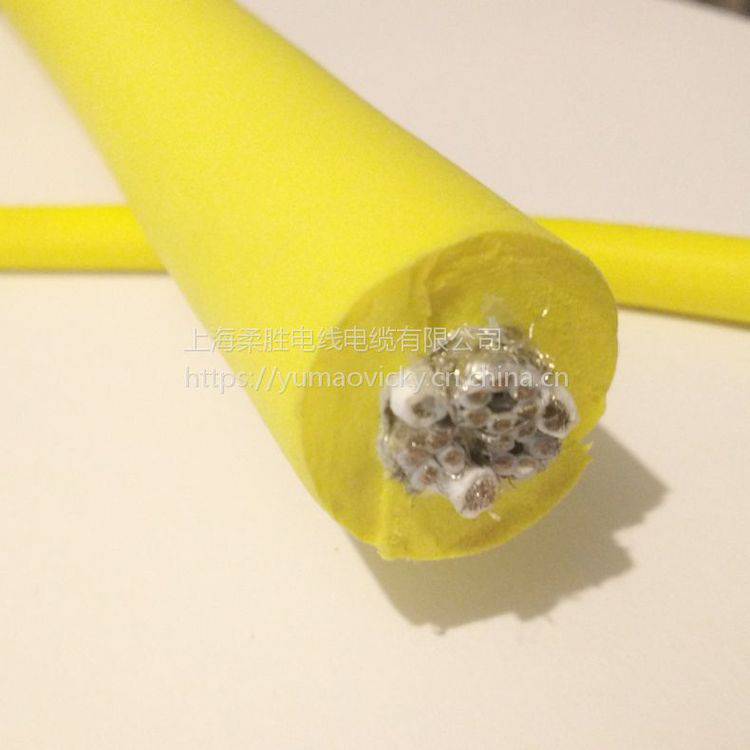

Multi-core shielded underwater combined zero buoyancy cable anti-seawater tensile 18-core ROV floating cable custom cable
Combined zero buoyancy cable specifications:
6 core is a set of aluminum foil and tin plated copper double shielding, five core is a set of aluminum foil and tin plated copper double shielding, four-core as consisting of a twisted-pair cable, plus 3 core power line, a total of 18 core, optional specifications commonly used signal lines are 0.25/0.3/0.35/0.5/0.75/1.0/1.5 square, etc., Power line specifications are 2/2.5/3/4/6/8/10 square and other optional, users can choose reasonably according to their needs.
Combined zero buoyancy cable structure:
Conductor: multi-strand ultra-fine stranded oxygen-free copper wire, in line with VDE0295CLASS 6 standard (conductor with bare copper wire and tinned copper wire optional)
Insulation: Special PVC blend or TPE/PE/ Teflon material (optional)
Color: ≤0.5mm Color: brown, black, blue, purple, pink, orange; ≥0.5mm Color indicates: black number white number number, more than 3 cores with yellow-green ground cable (yellow-green optional)
Filling: polyester yarn water blocking yarn, etc
Tensile: Kevlar bulletproof wire (can be filled or woven) flagpole rope tensile cotton rope
Wrapping: tensile non-woven fabric to block water
Shielding: tinned copper wire textile shielding, density: 85% or more
Sheath: Foamed polyurethane (PUR)
Color: Black, gray, orange, yellow, color can be produced on request.
Rated voltage:
Less than or equal to 0.5 squared, 300/300V
Greater than 0.5 square, 300/500V
Test voltage: 2500V
Combined zero buoyancy cable customization instructions:
Combined zero buoyancy cable can be customized according to customer requirements of various types and specifications of special purpose wire and cable, customers provide samples or design drawings, our company can process according to the drawing and sample, and inform the user in a timely manner, for the need to optimize our company will communicate and negotiate with the user in a timely manner, if not processed will inform the user and return the sample. Technical support, Mr. Gong, tel: 13482197396, Q2939591145, WEIXIN13482197396
