Waterproof and oil-proof cable 4/3/7/9*6/2/8MM2 hydrolytic-resistant and anti-microbial floating underwater cable

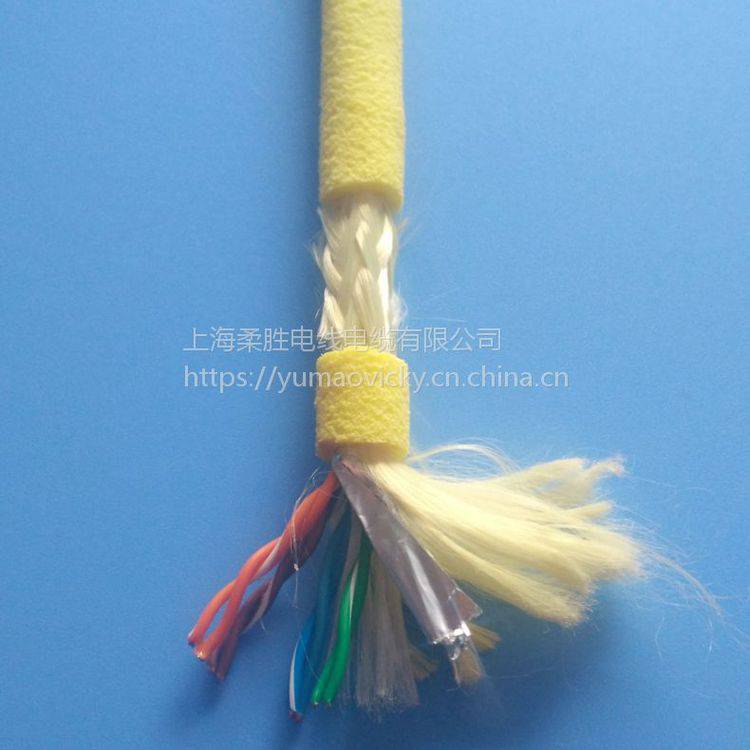

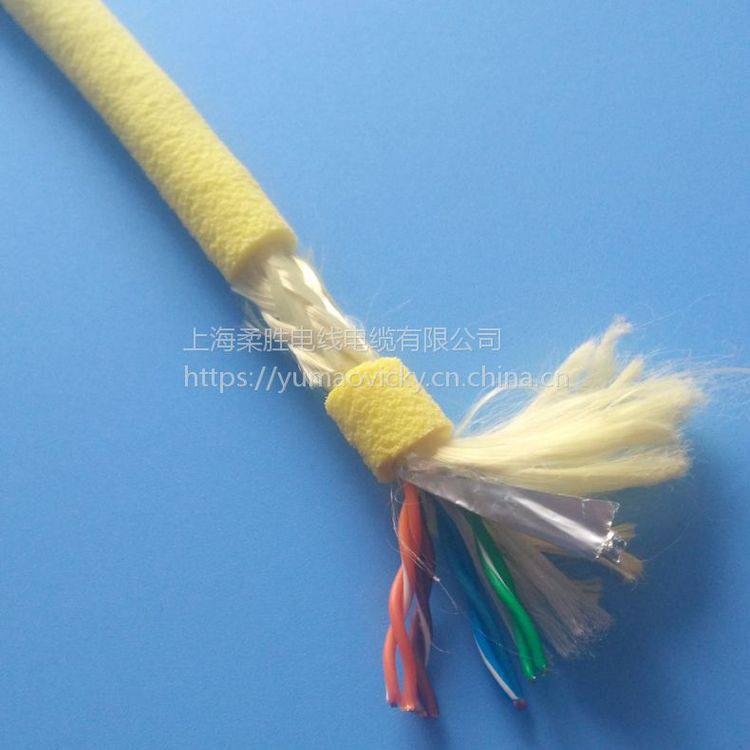

Cable structure:
Conductor: multi-strand ultrafine stranded oxygen-free copper wire
Insulation: Special material to prevent seawater corrosion
Color: ≤0.5mm Color: Brown, black, blue, purple, pink, orange
≥0.5mm Color indicates: black number white number number, more than 3 cores with yellow-green ground cable (yellow-green optional)
Shielding: tinned copper wire textile shielding
Density: more than 85%
Sheath: Foam waterproof polyurethane (PUR)
Color: Black, gray, orange
Rated voltage: Section ≥o.5mm2:300/500v/450/750v
Test voltage: 2500V
Product features:
Waterproof, oil resistant, cold resistant, corrosion resistant, UV resistant, flame retardant, frequent bending long life,
Suitable for fast moving installation.
Application: Suitable for all kinds of submersible motor, underwater robot, underwater monitoring, underwater mapping, underwater exploration and so on.
Operating temperature range: fixed installation -50℃ to +105℃; Mobile installation: -30℃ to +90℃
Bending radius: Fixed installation: 5 x cable diameter (D);
Mobile installation: when the travel is less than 10 meters, the bending radius is 7.5×d; When the stroke is ≥10 meters, the bending radius is 10×D
Waterproof and oil-proof cable 4/3/7/9*6/2/8MM2 hydrolytic-resistant and anti-microbial floating underwater cable
