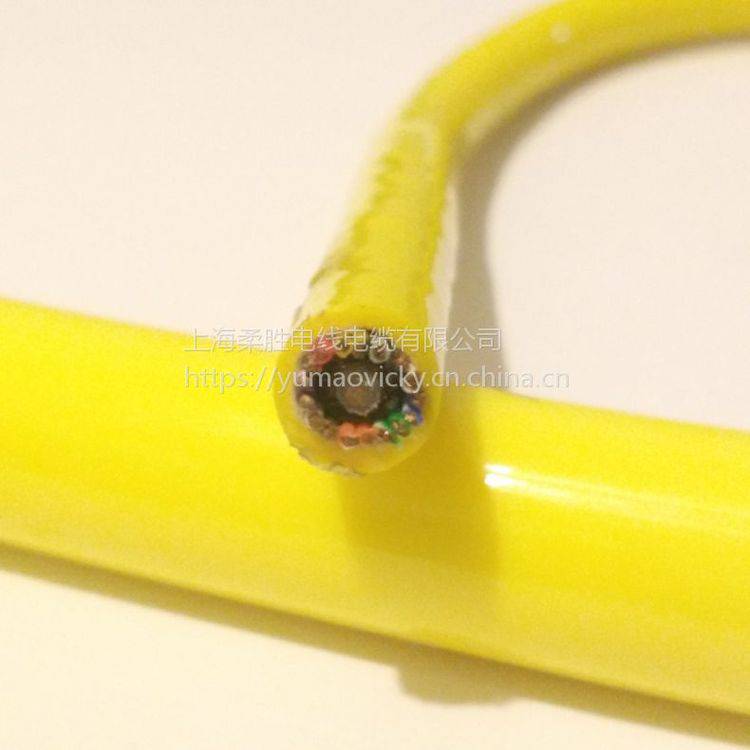

ROV underwater robot with anti-seawater integrated cable power line + signal line + underwater video line customized zero buoyancy cable
1. The power line should be determined according to the actual load of the underwater robot to determine the size and specifications of the power line
2. The signal line can be determined according to the signal transmission distance to determine the size of the signal line, only taking into account the interference between the cables, the signal line needs to have a shielding layer, shielding general high-density braided tinned copper shielding;
3. Underwater video cable specifications are 75-3,75-5, etc
Scope of application:
Suitable for dry or wet indoor, strong stress release or forced guidance of free continuous reciprocating motion installation, industrial environment under frequent bending occasions. Such as woodworking machinery, machine tool processing equipment, logistics conveying systems, robots, lifting equipment occasions, etc
The pair pitch is short, anti-crosstalk characteristics, suitable for high-speed signal circuit configuration occasions
Product features:
Waterproof, oil resistant, cold resistant, corrosion resistant, UV resistant, flame retardant, bending resistance (frequent bending: more than 8 million times of continuous core)
Suitable for fast moving installation.

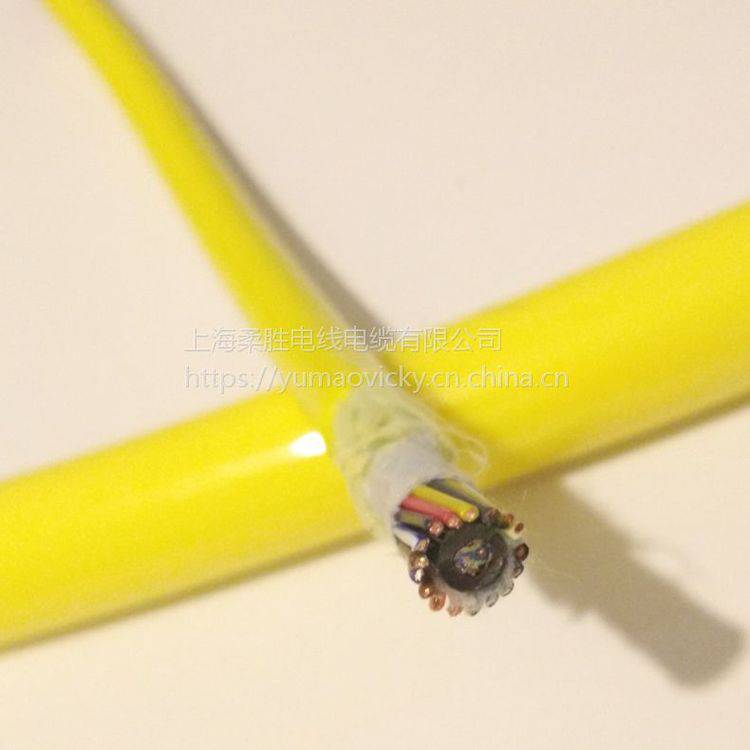

Cable structure:
Conductor: multi-strand ultrafine stranded oxygen-free copper wire, in line with VDE0295CLASS 6 standard
Insulation: Special Acrylic PVC blend or TPE(optional)
Color: ≤0.5mm Color: brown, black, blue, purple, pink, orange; ≥0.5mm Color indicates: black number white number number, more than 3 cores with yellow-green ground cable (yellow-green optional)
Shielding: tinned copper wire textile shielding, density: 85% or more
Jacket: polyurethane (PUR) Color: black, gray, orange
Rated voltage: cross section
Test voltage: 2500V
Operating temperature range:
Fixed installation -50℃ to +105℃
Mobile installation: -30℃ to +90℃
Bending radius:
Fixed installation: 5 x cable diameter (D)
Mobile installation: when the travel is less than 10 meters, the bending radius is 7.5×d; When the stroke is ≥10 meters, the bending radius is 10×D
