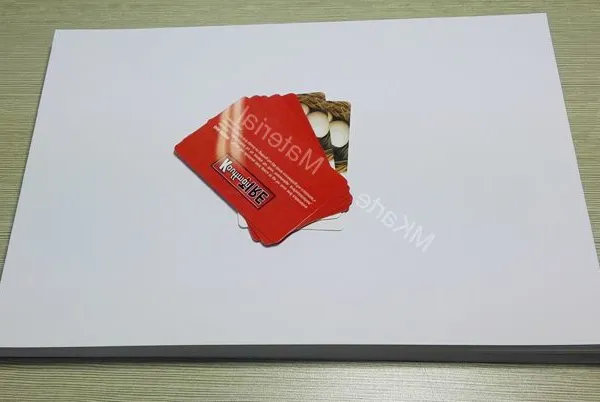

MGI Digital printing PVC sheet , Pvc Plastic Sheet For Smart Card Production
1.MGI Digital printing PVC sheet , Pvc Plastic Sheet For Smart Card Production- Introduction
Brief Introduction:
MGI Digital printing PVC sheet MDP-MG-W is suitable for MGI digital printer series. It could be printed directly by digital printers with perfect printing quality.
● Suitable for the whole series of MGI printers.
● High definition images.
● No crack occurs on the printed images after lamination at high temperature.
Specifications
Thickness range: 0.10-0.60mm
Color: White
Application: All kinds of cards
Size(mm): Rolls or customized sheets
Descriptions
One side with digital printing coating, and other side with laminating oil (for easy lamination). Your designed layout can be printed on the printing side with HP indigo, Xerox , konica printer etc directly and then be laminated with overlay for making cards.
Characteristics:
● Excellent ink adhesion.
● Good printing stability.
● Suitable for the whole series of Konica Minolta printers.
● High definition images.
● No crack occurs on the printed images after lamination at high temperature.
2.MGI Digital printing PVC sheet , Pvc Plastic Sheet For Smart Card Production - Parameters and Features
Digital printing sheet, also called electronic ink printing sheet, it is a novel material used for digitization ink printing, and its color is recovered accurately. Printing ink has strong adhesive force, high laminating strength, clear graphic outline, and free from static electricity. Generally, it is matched with tape film for making laminated card.
| Size | A4, A3 or as per customer requirements |
| Thickness | 0.15mm-0.40mm |
| Color | white/supper white |
| Package method | 50, 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets. |
| Storage condition | Sealed, moisture-proof, room temperature under 40℃ |
Parameters:
1). Size: A4, A3 or as per customer requirements (tolerance +/-0.5mm)

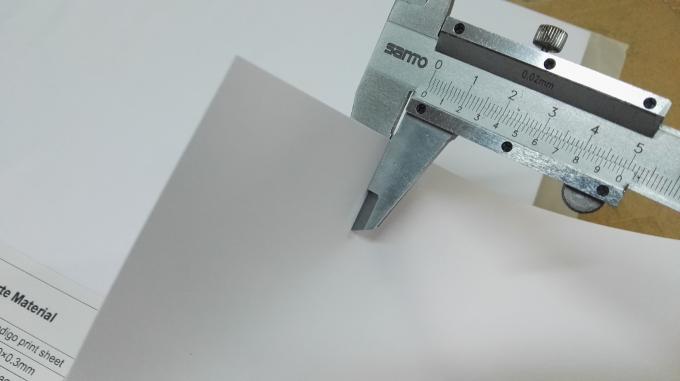

2). Thickness: 0.15mm-0.40mm (tolerance +/-5%)
3). Coating description: digital ink coating on one side and lamination glue coating on another side.
4). Color: white/supper white
5). Package method: 50/100/200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets.
6). Storage condition: Sealed, moisture-proof, room temperature under 40℃

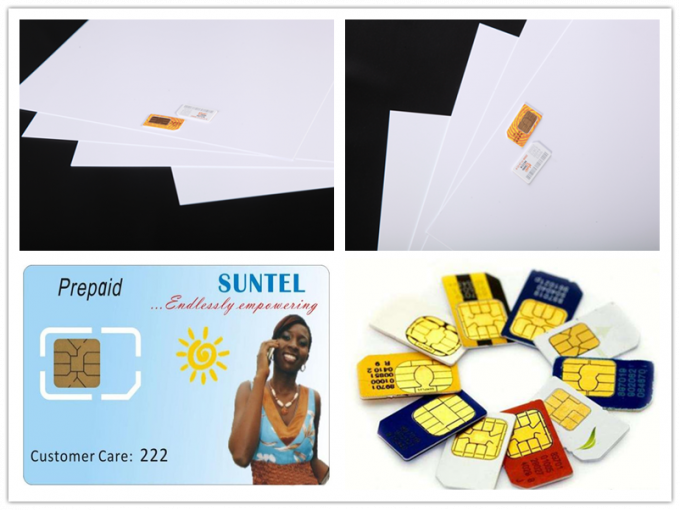

3.MGI Digital printing PVC sheet , Pvc Plastic Sheet For Smart Card Production- Application
Using Method:
Printed directly by the whole series of MGI Digital printers.
| Item | Parameters |
| Surface | Clean and flatness |
| Dimensional Tolerance (mm) | ±1 |
| Angle Cut Tolerance(mm) | ±1 |
| Diagonal Difference(mm) | ≤1.2 |
| Thickness Tolerance(mm) | ±10% |
| Laminating Unit | Temp(℃) | Pressure(MPa) | Time (min) |
| Heat Laminating | 110~130 | ≥8 | 20 |
| Cool Laminating | ≤40 | ≥8 | 20 |
4.MGI Digital printing PVC sheet , Pvc Plastic Sheet For Smart Card Production- Inspection & Packing
| Product Test Report | |||||
| Product Name: PVC Digital Printing Sheet | |||||
| Inspected Items | Unit | Inspection Standard | Test Result | ||
| Appearance | The color is even, No black impurity spots, No obvious scratch |
Meet the requirements | |||
| Length | mm | ±1 | OK | ||
| Width | mm | ±1 | OK | ||
| Thickness | mm | ±10% | OK | ||
| Squareness | mm/m | ≤1 | 0.4 | ||
| Density | g/cm3 | 1.42±0.05 | 1.41 | ||
| Chromatic aberration | ∆E | ≤1.0 | 0.51 | ||
| Pulling Strength | MD | MPa | ≥45 | 47 | |
| CD | ≥43 | 43.1 | |||
| Roughness Ra |
4# | ṷ m | 0.7～1.8 | 1.28 | |
| 5# | ṷ m | 0.7～1.8 | 0.97 | ||
| Roughness Rz |
4# | ṷ m | 4～12 | 7.912 | |
| 5# | ṷ m | 4～12 | 6.91 | ||
| Surface Tension | 4# | Dynes/cm | ≥34 | 34.5 | |
| 5# | ≥34 | 34 | |||
| Heating shrinkage rate | MD | % | ≤-6.0 | -2 | |
| CD | ≤+2.2 | 0 | |||
| Whiteness | 96.2 | ||||
| Transmittance | % | 5.5 | |||
| Vicat softening point | ℃ | 78±2 | 78.9 | ||

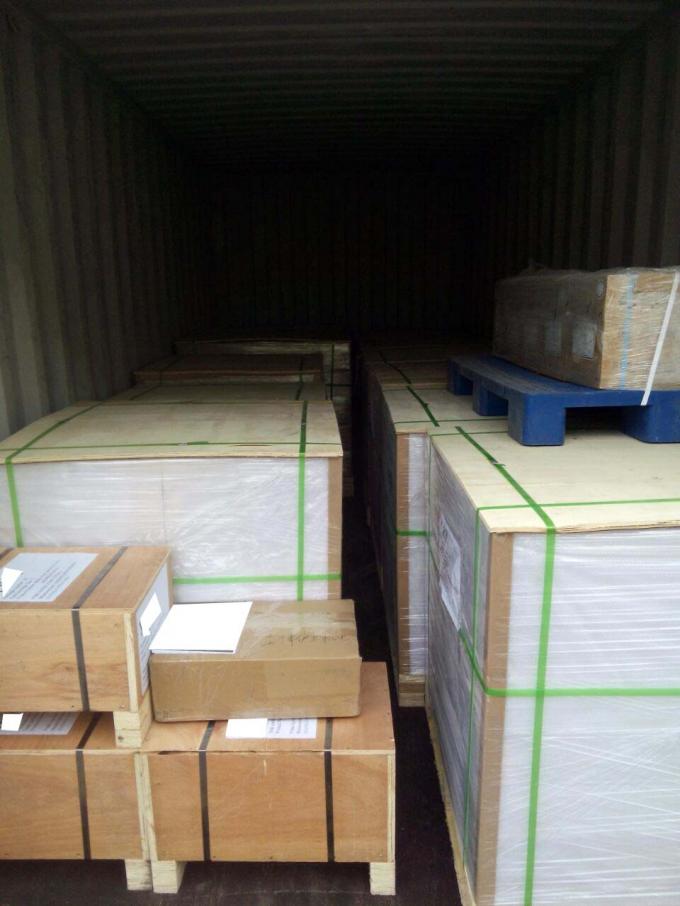

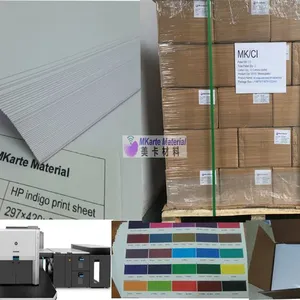

Packing:
Outer:Carton Inner:PE bag
Storage:
Keep package sealed and moisture-proof, room temperature under 40℃.
Keep horizontally, avoid oppress heavily and direct sun light.
Stacking height should not exceed one meter.
Shelf life: One year.
