3.5mm Lamination Cushion Purpose A4 A3 Smart Card Material

3.5mm Lamination Cushion Purpose A4 A3 Smart Card Material thumbnail-1
3.5mm Lamination Cushion Purpose A4 A3 Smart Card Material thumbnail-2
3.5mm Lamination Cushion Purpose A4 A3 Smart Card Material thumbnail-3
3.5mm Lamination Cushion Purpose A4 A3 Smart Card Material photo-1
3.5mm Lamination Cushion Purpose A4 A3 Smart Card Material photo-2
3.5mm Lamination Cushion Purpose A4 A3 Smart Card Material photo-3
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
MK
Place of Origin:
China
Model Number:
MRP-1A
Contact Supplier Request Quote Chat Now
MKarte Material Technology (Tianjin) Limited
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other Chinese port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MK
Place of Origin China
Model Number MRP-1A

High-Quality Plastic Card Cushion Pad designed for high end card lamination purpose

( Key words: lamination pad, rubber pad, card laminator cushion pad, silicon rubber pad, plastic card lamination pad, card material)



1. High-Quality Plastic Card Cushion Pad designed for high end card lamination purpose- Introduction

It is working with the lamnation steel plates in the process of plastic card lamination. It is applied for the lamination process for various plastic cards including bank card, credit card, and royalty card. It works with lamination steel plate in the plastic card lamination process.

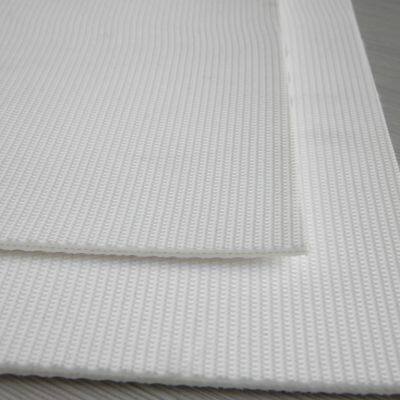

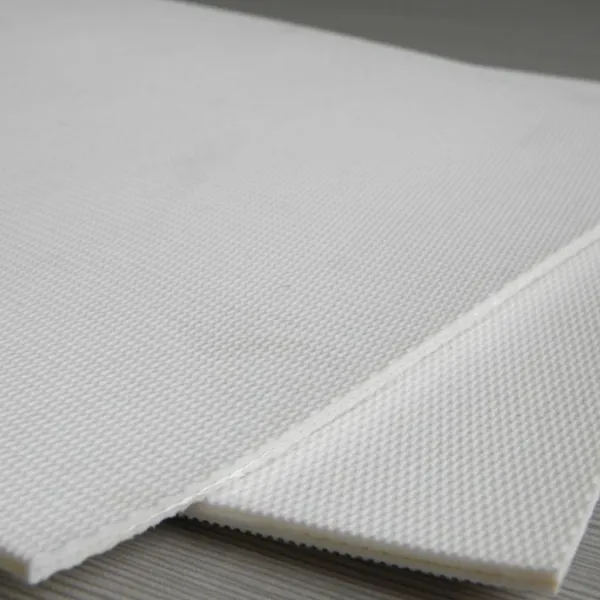

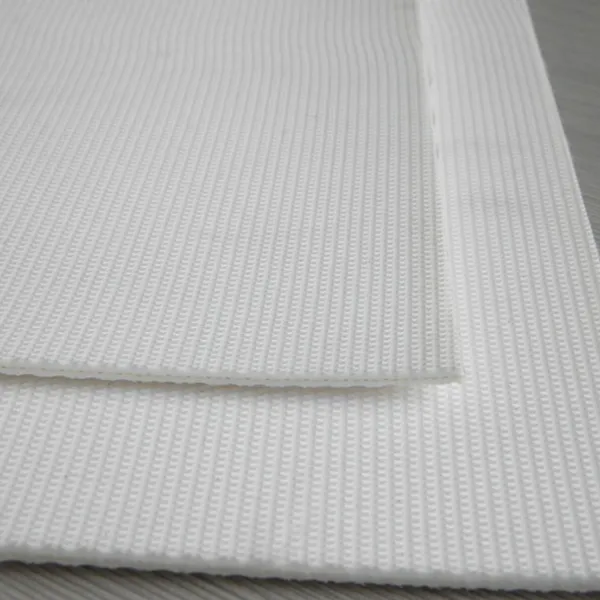

The cushion pad consists of white heatproof silicon rubber layers on the surfaces with glass filer in the middle.

Detailed Product Description

3.5mm Lamination Purpose A4 A3 Smart Card Material 0

(1) Silicon rubber cushion
(2) High tensile strength and tearing strength,
(3) Long service life,
(4) Heat resistant up to 250

(5) Product Application: It is used for hot-press , widely used for card laminating or furniture , wooden doors of the pressure paste .

(6) Product specification: 1) thickness: 1.5- 3.5mm 2) maximum width: 3800mm with no joint 3) any length 4) color: white





2.High-Quality Plastic Card Cushion Pad designed for high end card lamination purpose- Key Features:



1). It is heatproof with great durability, which can well meet the technological requirements in plastic card lamination.

2). It can transfer heat quickly and evenly, which can improve production efficiency and energy conservation.

3). It has good performance of high temperature resistance and excellent elastic resilience.



3.5mm Lamination Purpose A4 A3 Smart Card Material 1



Function Used for plastic card laminator, working with lamination steel plates
Service life  one year
Material White heatproof silicon rubber layers on the surfaces with glass filer in the middle.

3. High-Quality Plastic Card Cushion Pad designed for high end card lamination purpose- Technical Parameters



1). Heatproof performance: 200℃

2). Tensile strength: 80 N/mm

3). Adhesion: 80 N/mm

4). Hardness SHORE A: 55±5

5). Thickness: 3mm

6). Length and width: A4, A3 or custom-made size (size tolerance: ±1mm)

The technical index:



Model number MRP-1
Thickness 1.5- 3.5mm (Thickness tolerance: ±0.05mm)
Pad size in sheet, A3, A4 or custom-made size
Breaking strength 80 Mpa
Hardness SHORE A 55±5
Adhesive force N/mm 2.5
Breaking extensibility 350
Packaging box Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport

4. High-Quality Plastic Card Cushion Pad designed for high end card lamination purpose-Application

  It has good cushioning performance to avoid the damage and scratching resulting from direct contacting between laminator template and lamination steel plates, which can extend the service life of both lamination steel plates and template.

3.5mm Lamination Purpose A4 A3 Smart Card Material 2

5.High-Quality Plastic Card Cushion Pad designed for high end card lamination purpose- Packing

3.5mm Lamination Purpose A4 A3 Smart Card Material 3

TAG: white polycarbonate sheet, polycarbonate plastic sheets, id card material


Product Tags: Card Lamination Cushion Pad , Smart card lamination material , Card laminator use
