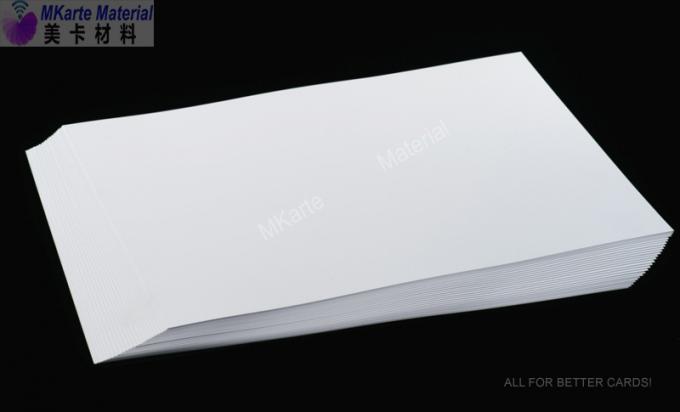

Konica Digital printable PVC Sheet -Smart Card Material Used in Minolta digital printer
1.Konica Digital printable PVC Sheet -Smart Card Material - Introduction
Brief Introduction:
Konica Digital printable PVC Sheet -Smart Card Material is developed specially for the whole series of Konica Minolta printers. It could be printed directly by the machine with high precision images, no Topaz coating needed.
Konica Digital printable PVC Sheet -Smart Card Material
Konica Digital printing PVC sheet MDP-KM-W is suitable for Konica Minolta digital printer series. It could be printed directly by Konica printers with perfect printing quality.
Descriptions:
One side with digital printing coating, and other side with laminating oil (for easy lamination). Your designed layout can be printed on the printing side with HP indigo, Xerox , konica printer etc directly and then be laminated with overlay for making cards.
2.Konica Digital printable PVC Sheet -Smart Card Material - Parameters and Features
Konica Digital printable PVC Sheet -Smart Card Material, also called electronic ink printing sheet, it is a novel material used for digitization ink printing, and its color is recovered accurately. Printing ink has strong adhesive force, high laminating strength, clear graphic outline, and free from static electricity. Generally, it is matched with tape film for making laminated card.
| Size | A4, A3 or as per customer requirements |
| Thickness | 0.15mm-0.40mm |
| Color | white/supper white |
| Package method | 50, 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets. |
| Storage condition | Sealed, moisture-proof, room temperature under 40℃ |
Parameters:
1). Size: A4, A3 or as per customer requirements (tolerance +/-0.5mm)
2). Thickness: 0.15mm-0.40mm (tolerance +/-5%)
3). Coating description: digital ink coating on one side and lamination glue coating on another side.
4). Color: white/supper white

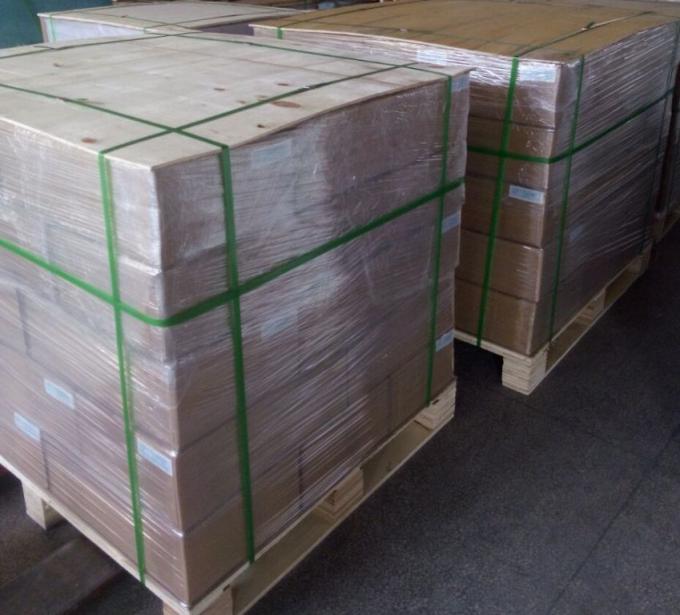

5). Package method: 50/100/200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets.
6). Storage condition: Sealed, moisture-proof, room temperature under 40℃
3.Konica Digital printable PVC Sheet -Smart Card Materialt - Application
Using Method:

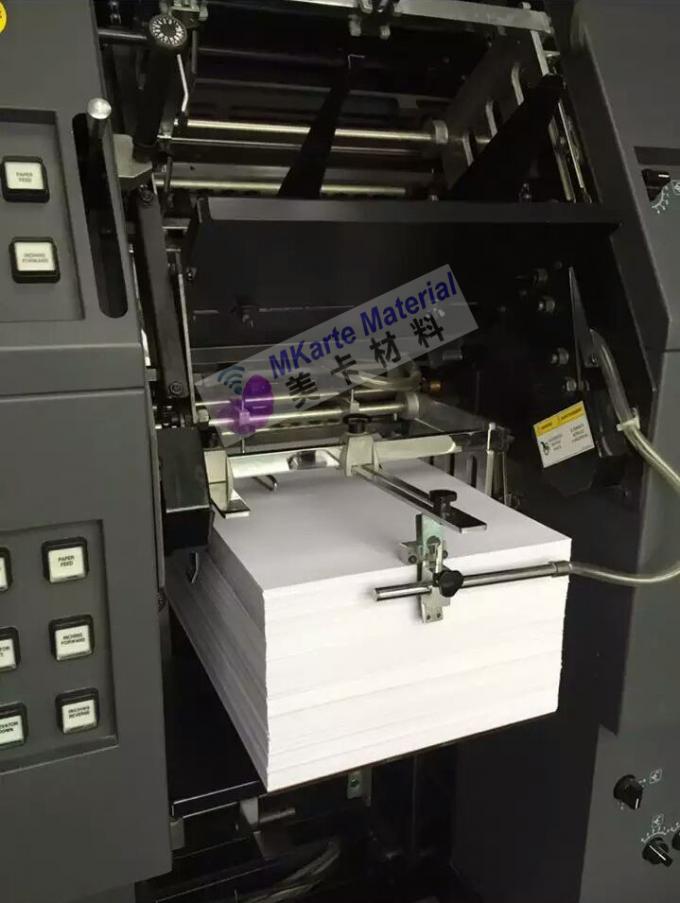

Printed directly by the whole series of Konica Minolta printers.
| Item | Parameters |
| Surface | Clean and flatness |
| Dimensional Tolerance (mm) | ±1 |
| Angle Cut Tolerance(mm) | ±1 |
| Diagonal Difference(mm) | ≤1.2 |
| Thickness Tolerance(mm) | ±10% |
| Laminating Unit | Temp(℃) | Pressure(MPa) | Time (min) |
| Heat Laminating | 110~130 | ≥8 | 20 |
| Cool Laminating | ≤40 | ≥8 | 20 |
Characteristics:
● Excellent ink adhesion.
● Good printing stability.
● Suitable for the whole series of Konica Minolta printers.
● High definition images.
● No crack occurs on the printed images after lamination at high temperature.
4.Konica Digital printable PVC Sheet -Smart Card Material- Inspection & Packing

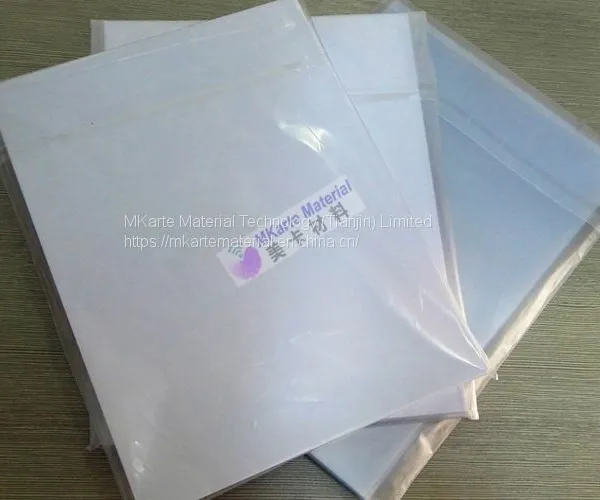

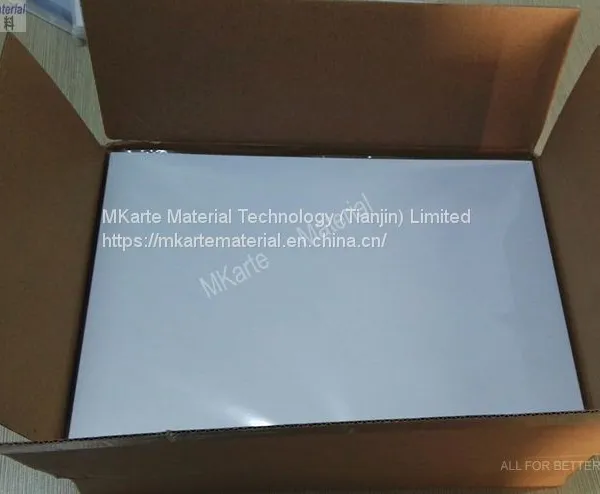

Packing:
Outer:Carton Inner:PE bag
Storage:
Keep package sealed and moisture-proof, room temperature under 40℃.
Keep horizontally, avoid oppress heavily and direct sun light.
Stacking height should not exceed one meter.
Shelf life: One year.
TAG: white polycarbonate sheet, polycarbonate plastic sheets, id card material
