3.0 Lamination Cushion Wollen Felt Pad A4 A3 PVC Card Material

3.0 Lamination Cushion Wollen Felt Pad A4 A3 PVC Card Material thumbnail-1
3.0 Lamination Cushion Wollen Felt Pad A4 A3 PVC Card Material thumbnail-2
3.0 Lamination Cushion Wollen Felt Pad A4 A3 PVC Card Material thumbnail-3
3.0 Lamination Cushion Wollen Felt Pad A4 A3 PVC Card Material photo-1
3.0 Lamination Cushion Wollen Felt Pad A4 A3 PVC Card Material photo-2
3.0 Lamination Cushion Wollen Felt Pad A4 A3 PVC Card Material photo-3
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
MK
Place of Origin:
China
Model Number:
MRP-2
Contact Supplier Request Quote Chat Now
MKarte Material Technology (Tianjin) Limited
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other Chinese port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MK
Place of Origin China
Model Number MRP-2

Woolen Felt Cushion laminated Pad, Press Pad used as PVC Card Material in Lamination

(also named: felt cushion pad, lamination pad, rubber pad, card laminator cushion pad, silicon rubber pad, plastic card lamination pad, card production material)



1. Woolen Felt Cushion laminated Pad, Press Pad used as PVC Card Material in lamination- Introduction

Woolen Felt Cushion laminated Pad MRP-2 is designed for the lamination process for various plastic cards including bank card, credit card, and royalty card. It works with lamination steel plate in the plastic card lamination process.

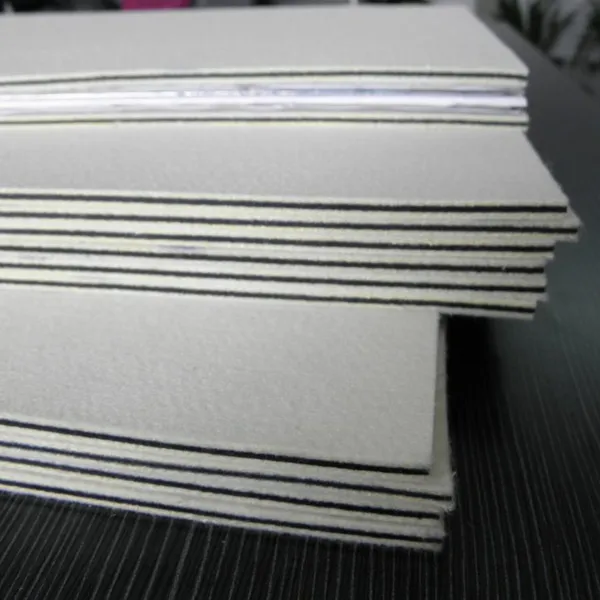

The structure of white silicon cushion pads is Woolen felt layer on the surface layer with black rubber in the middle .



Our lamination Cushion was be made by silica gel and heat resistant wool, it can be widely use for cards laminator. it can avoid scratch, bubble, fish eye, water spots during lamination process to improve your yield rate.



80 N/Mm 3mm Woolen Felt Cushion Laminated Pad For Credit Card 0

2. Woolen Felt Cushion laminated Pad, Press Pad used as PVC Card Material in lamination- Features

Key Features:

1). It is heatproof with great durability, which can well meet the technological requirements in plastic card lamination.

2). It can transfer heat quickly and evenly, which can improve production efficiency and energy conservation.

3). It has good performance of high temperature resistance and excellent elastic resilience.

4). It has good cushioning performance to avoid the damage and scratching resulting from direct contacting between laminator template and lamination steel plates, which can extend the service life of both lamination steel plates and templat

80 N/Mm 3mm Woolen Felt Cushion Laminated Pad For Credit Card 1

Function Used for plastic card laminator, working with lamination steel plates
Service life one year
Material  Woolen felt layer on the surface layer with black rubber in the middle



Technical Parameters:

Heatproof performance 200℃
Tensile strength 80 N/mm
Adhesion 80 N/mm
Hardness SHORE A 55±5
Thickness 3mm
Length and width A4, A3 or custom-made size (size tolerance: ±1mm)





3. Woolen Felt Cushion laminated Pad, Press Pad used as PVC Card Material in lamination- Application



The pad is also known as felt cushion pad, lamination pad, rubber pad, card laminator cushion pad, silicon rubber pad, plastic card lamination pad or card production material.



Production Name Cushion for lamination
Factory Ref. No. MRP-1 MRP-2
Surface Material Silica gel with embossing Heat resistant wool
Core Material Fiberglass Silica gel
Hardness 55 ± 5(Shore A) 50 ± 5(Shore A)
Tensile strength 80 (N/mm) 60 (N/mm)
Adhesion 4.5 (N/mm) 4.5 (N/mm)
Heat-resistant 200 °C 200°C
Color White White
Sheet Size customer size*3MM

customer size*3MM

4. Woolen Felt Cushion laminated Pad, Press Pad used as PVC Card Material in lamination- Packing

Laminating pads are suitable for manufacturing kinds of ISO baning cards, cards and smart cards.Raw materials are all for anti-high temperature and anti-high pressure. Meeting the requirements of laminating process, as the professional card consumables, they have been widely using for improving the production efficiency and saving energy because of the feature of thermal conductive fast and uniform. Have excellent bibulous performance, can effectively eliminate the risks of bubbles and watermarks on card surface, greatly improved the qualification rate of products, and with good cushioning properties, they can avoid the scratches linked to the hard touching between the heating plate and the trays, benefited to the long using life of above both.

80 N/Mm 3mm Woolen Felt Cushion Laminated Pad For Credit Card 2



TAG: pvc id card material, plastic card material, business card material


Product Tags: Card Lamination Cushion Pad , PVC card lamination material , PVC Card laminator use
