compound-lever large biomass briquette press/fuel briquette press africa

Name: compound-lever large biomass briquette press/fuel briquette press africa
Brand: Shisheng Machinery
Price: USD $1 - 3000 / Set

FOB Price

USD $1 - $3000 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port Qingdao
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Shisheng Machinery	Place of Origin:	China	Model Number:	XM290
Certification:	ISO9001/CE	After-sales Service Provided:	Engineers available to service machinery overseas	Warranty:	one year
Dimension(LWH):	140013001650mm	Production Capacity:	1000kg/h	Condition:	New
Power(W):	5.5kw	Motor Type:	AC Motor

Packaging Details

Seaworthy packing as per export container rules, bigger items loose stuff in container and small parts will be tied up in a bundle put into steel boxes or plywood boxes. Delivery will be arranged based on busy or low producing season in our factory, single set machine is normally not more than 40 days, production line is in 2 month.

Product Description

compound-lever large biomass briquette press/fuel briquette press africa

compound-lever large biomass briquette press/fuel briquette press africa Introduction:

Feeding Size:<5mm

Capacity: 1-50T/H

Raw Material: coal powder, coal gangue, soft coal, anthrocite coal

Application: Refractory, power plant, metallurgical, chemistry, energy, transportation and heating, etc.

compound-lever large biomass briquette press/fuel briquette press africa Introduction:

compound-lever large biomass briquette press/fuel briquette press africa is also called coal powder molding machine, it is used to briquette coal powder, coal gangue, soft coal, anthrocite coal, etc. Belongs to cold briquetting technology; In production, it can produce popular briquette shapes, like oval shape, pillow shape and square shape, etc. in high density, strong strength and high hardness through adding some kind of binder material, so customers are more like it.

compound-lever large biomass briquette press/fuel briquette press africa structure is composed of three parts: feeding system, transmission system and briquetting system. XM290 model is often as a trial machine goes to customer site for small size and easy maintenance.

(1) compound-lever large biomass briquette press/fuel briquette press africa is also called coal powder molding machine.

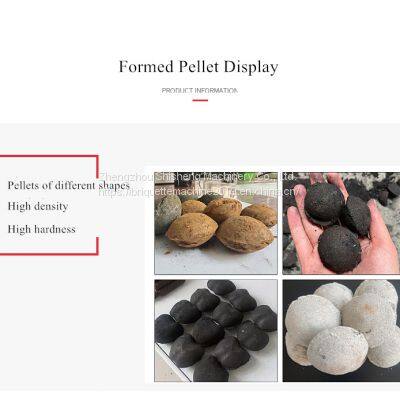

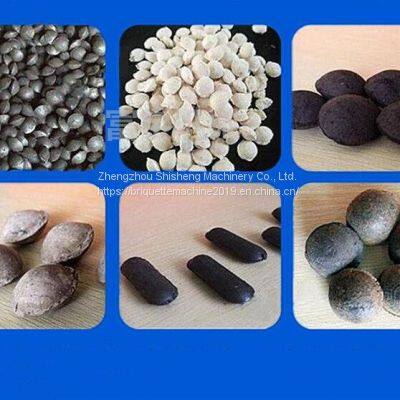

(2) It can produce popular briquette shapes, like oval shape, pillow shape and square shape, etc.

(3)Finished briquettes are in high density, strong strength and high hardness.

(4)Briquette machine is composed of three parts: feeding system, transmission system and briquetting system.

compound-lever large biomass briquette press/fuel briquette press africa Working Principle:

(1) Through reducer transmitting the powder material to two rollers, and making them rotated in opposite directions.

(2) The powder materials naturally enter into the roller molds.

(3) When the materials rotating to two rollers line contact points, materials pressure reached a peak.

(4) Under enormous pressure, the powder materials are suppressed into finished briquettes.

XM Series Coal Briquetting Machine

Model	Reducer	Ratio	Roller Size(mm)	Main Shaft Speed(r/min)	Matched Power(kw)	Capacity(t/h)	Pressure Type
XM290	ZQ350	1:31.5	290*200	12-14	5.5	0.9-1.0	Constant Pressure
XM360	ZQ350	1:31.5	360*250	12-14	7.5	1.5-2.0	Constant Pressure/Hydraulic Pressure
XM400	ZQ400	1:31.5	400*250	12-14	7.5	2.5-3.5
XM430	ZQ400	1:31.5	430*250	12-14	11	3.5-4.5
XM500	ZQ650	40.17	500*470	10-12	37	7.5-8.5
XM650	ZQ850	40.17	650*470	9-11	45	9-10
XM750	ZQ1000	40.17	750*570	9-11	90	13-14
XM850	ZQ1250	50	850*570	8-10	110	15-17
Remarks: Above capacity is based on material specific gravity 0.8, briquette size: φ50*33mm
Roller material is 65Mn, high chrome alloy and 9Cr2Mo
According to different material adjust machine parameter to meet customer production

KF Series Mineral Powder Briquetting Machine

Model	Reducer	Ratio	Roller Size	Main Shaft Speed(r/min)	Matched Power(kw)	Capacity(t/h)	Pressure Type
KF500-371-280	ZQ500	40.17	370*280	8-10	11	6.5-7.5	Constant Pressure/Hydraulic Pressure
KF650-500-300	ZQ650	40.17	500*300	8-10	37	8.5-9.5
KF850-650-300	ZQ850	40.17	650*300	8-10	55	10.5-11.5
KF1250-750-350	ZS1250	50	750*350	7-9	110	13.5-14.0
KF1450-850-350	ZS1450	50	850*350	7-9	132	15.0-16.0
KF560-1000-350	ZSY560	50	1000*350	7-9	150	17.0-20.0
Remarks: Above Capacity is based on material specific gravity 2, briquette size:φ50*33mm
Roller material is 65Mn, high chrome alloy and 9Cr2Mo.
According to different material adjust machine parameter to mmet customer production

YHG Series Dry Powder High Pressure Briquetting Machine

Model	YHG-0.5	YHG-1.5	YHG-3.0	YHG-5.0	YHG-8.0	YHG-10.0
Roller Diameter(mm)	φ299	φ367	φ522	φ738	φ760	φ858
Roller Width(mm)	180	183	196	210	225	300
Capacity(t/h)	0.5	1.2-1.4	2.5-3.0	4.5-5.5	7.5-8.5	8.0-9.5
Main Reducer	ZQ650	ZQ850	ZS1250	ZS1450	ZS1650	ZS1650
Main Motor	18.5	37	55	75	90-110	110-132
Pre-pressure Motor(kw)	7.5	11	15	18.5	18.5	22
Pre-pressure Reducer	WHC-125	WHC-160	WHC-200	WHC-210	WHC-210	WHC-250
Remarks: Above capacity is based on material specific gravity 1.3, briquette size: φ353020mm
Roller material adopts 9Cr2Mo
Pre-pressure motor is speed motor
