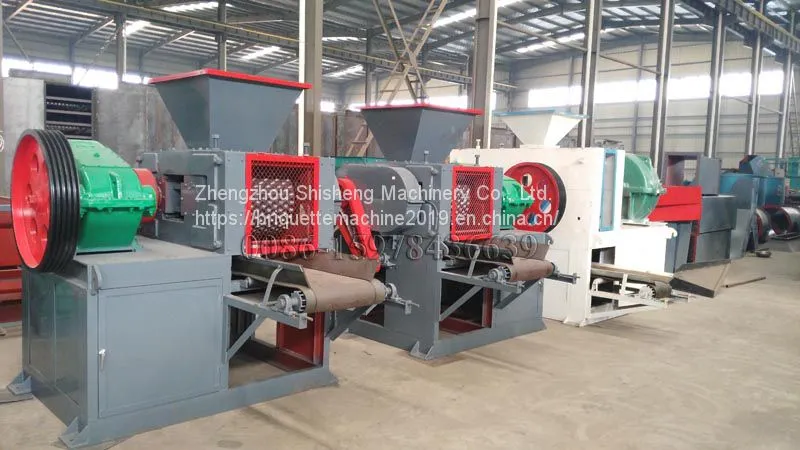

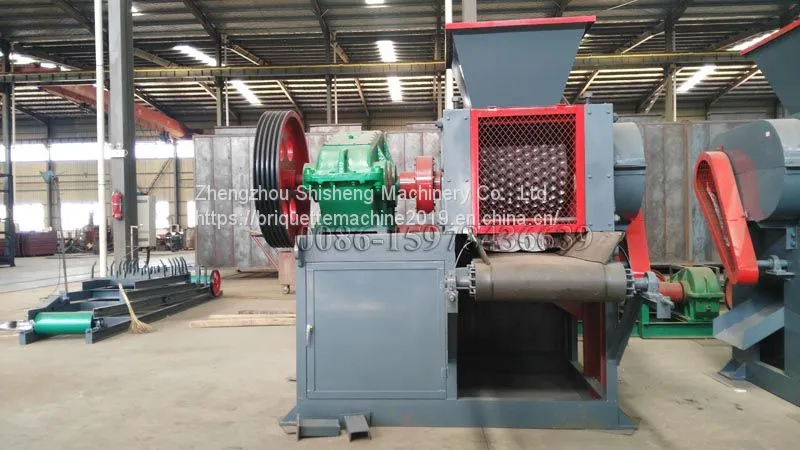

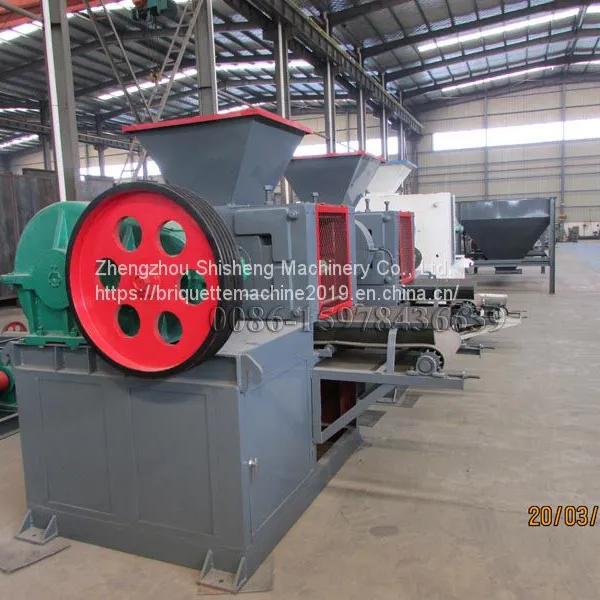

Barbecue Charcoal Machine
Barbecue Charcoal Machine Introduction:
Barbecue Charcoal Machine is an ideal mechanical equipment designed for processing powdery materials, such as nonferrous metal powder and mineral powders. After being made into briquettes, these wasted powders can be reused in various industries, hence increasing additional value of mineral resources. Barbecue Charcoal Machine is proud of that the finished briquettes come with high intensity, great convenience for transportation and various shapes. Custom-made shape is also available.
Barbecue Charcoal Machine Customer Reminding:
(1)For Barbecue Charcoal Machine,if feeding material is bigger, better to crusher first before briquetting.
(2) If material is in high moisture (higher than 15%), a dryer machine would be necessarily. But If you prefer to use dry powder type briquette machine, the moisture should be less than 5%, also based on materials’ performance.
(3) Generally, to add some binder/adhesive into the raw material in briquetting. The final briquette will be strong, high density, and better quality.
(4) The final briquettes can be dried naturally under the sunshine, or through mesh belt dryer and chain plate dryer accordingly to customer investment budget. But if is in capacity of 8-10t/h or more, we will suggest second one.
Barbecue Charcoal Machine Notify:
(1)We not only produce a single set of briquette press machine, but also complete production line, including batching machine, wheel grinding mixer, double shaft mixer, vertical crusher and briquette dryer, large angle belt conveyor, etc.
(2) Allof machines have passed ISO and CE certificate, so machine quality is totally qualified.
(3) Barbecue Charcoal Machine is proud of that the finished briquettes come with high intensity, great convenience for transportation and various shapes.
XM Series Coal Briquetting Machine
| Model | Reducer | Ratio | Roller Size(mm) | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
| XM290 | ZQ350 | 1:31.5 | 290*200 | 12-14 | 5.5 | 0.9-1.0 | Constant Pressure |
| XM360 | ZQ350 | 1:31.5 | 360*250 | 12-14 | 7.5 | 1.5-2.0 | Constant Pressure/Hydraulic Pressure |
| XM400 | ZQ400 | 1:31.5 | 400*250 | 12-14 | 7.5 | 2.5-3.5 | |
| XM430 | ZQ400 | 1:31.5 | 430*250 | 12-14 | 11 | 3.5-4.5 | |
| XM500 | ZQ650 | 40.17 | 500*470 | 10-12 | 37 | 7.5-8.5 | |
| XM650 | ZQ850 | 40.17 | 650*470 | 9-11 | 45 | 9-10 | |
| XM750 | ZQ1000 | 40.17 | 750*570 | 9-11 | 90 | 13-14 | |
| XM850 | ZQ1250 | 50 | 850*570 | 8-10 | 110 | 15-17 | |
| Remarks: Above capacity is based on material specific gravity 0.8, briquette size: φ50*33mm | |||||||

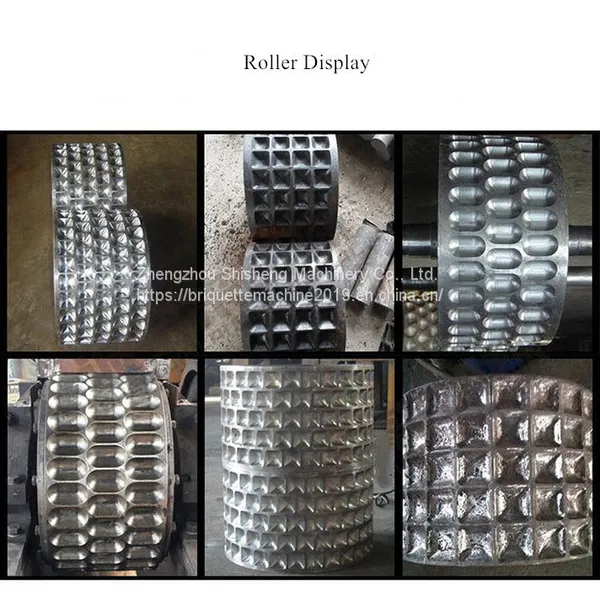

| Roller material is 65Mn, high chrome alloy and 9Cr2Mo | |||||||
| According to different material adjust machine parameter to meet customer production | |||||||
KF Series Mineral Powder Briquetting Machine
| Model | Reducer | Ratio | Roller Size | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
| KF500-371-280 | ZQ500 | 40.17 | 370*280 | 8-10 | 11 | 6.5-7.5 | Constant Pressure/Hydraulic Pressure |
| KF650-500-300 | ZQ650 | 40.17 | 500*300 | 8-10 | 37 | 8.5-9.5 | |
| KF850-650-300 | ZQ850 | 40.17 | 650*300 | 8-10 | 55 | 10.5-11.5 | |
| KF1250-750-350 | ZS1250 | 50 | 750*350 | 7-9 | 110 | 13.5-14.0 | |
| KF1450-850-350 | ZS1450 | 50 | 850*350 | 7-9 | 132 | 15.0-16.0 | |
| KF560-1000-350 | ZSY560 | 50 | 1000*350 | 7-9 | 150 | 17.0-20.0 | |
| Remarks: Above Capacity is based on material specific gravity 2, briquette size:φ50*33mm | |||||||
| Roller material is 65Mn, high chrome alloy and 9Cr2Mo. | |||||||
| According to different material adjust machine parameter to mmet customer production | |||||||
YHG Series Dry Powder High Pressure Briquetting Machine
| Model | YHG-0.5 | YHG-1.5 | YHG-3.0 | YHG-5.0 | YHG-8.0 | YHG-10.0 |
| Roller Diameter(mm) | φ299 | φ367 | φ522 | φ738 | φ760 | φ858 |
| Roller Width(mm) | 180 | 183 | 196 | 210 | 225 | 300 |
| Capacity(t/h) | 0.5 | 1.2-1.4 | 2.5-3.0 | 4.5-5.5 | 7.5-8.5 | 8.0-9.5 |
| Main Reducer | ZQ650 | ZQ850 | ZS1250 | ZS1450 | ZS1650 | ZS1650 |
| Main Motor | 18.5 | 37 | 55 | 75 | 90-110 | 110-132 |
| Pre-pressure Motor(kw) | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 |
| Pre-pressure Reducer | WHC-125 | WHC-160 | WHC-200 | WHC-210 | WHC-210 | WHC-250 |
| Remarks: Above capacity is based on material specific gravity 1.3, briquette size: φ35*30*20mm | ||||||
| Roller material adopts 9Cr2Mo | ||||||
| Pre-pressure motor is speed motor | ||||||
