pellet machine for charcoal

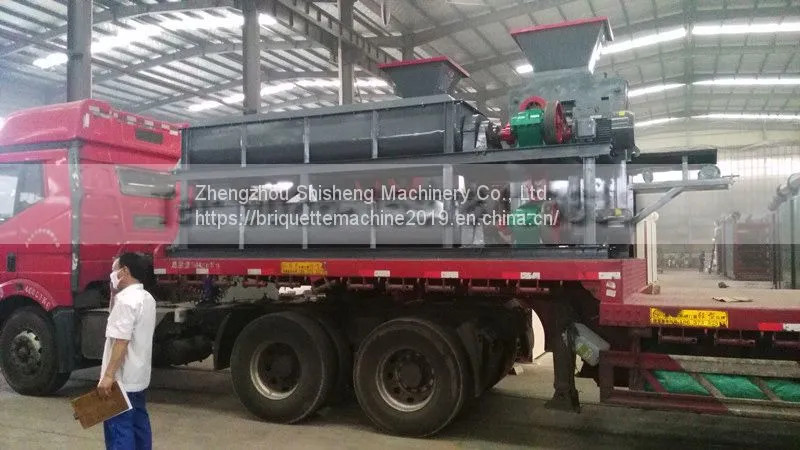

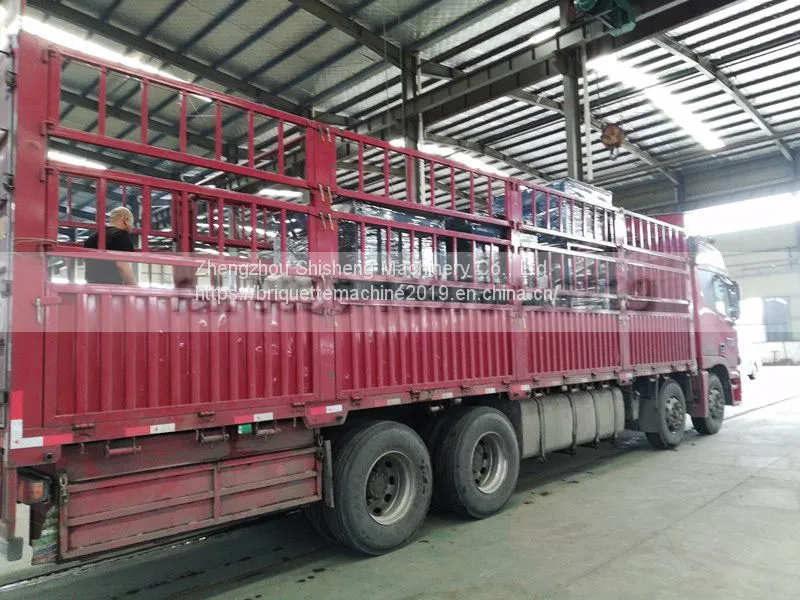

The normal package of coal briquette press machine is wooden box (Size: L*W*H). Normally the wooden box will be fumigated according to export countries rules. If container is too tighter,we will use PEfilm for packing or pack it according to customers special request. Spare parts is put into wooden case or steel box, big machines loaded in container, large machines use nude packing, cover with plastic cloth. We export through Qingdao Port, also can be nominated by customer. We have superior cargo agent to arrange the sea shipment for each client, competitive price, secure tra

Pellet Machine for Charcoal

Pellet Machine for Charcoal Introduction:

(1) Pellet Machine for Charcoal is mainly used for anhydrous materials of nonferrous and ferrous mineral powder briquette press /ball making systembefore the smelting furnace.

(2) Raw material ranges from coal, coke powder, coking coal, coal ash, coal mud, iron ore concentrates, chromate ore concentrates, mgo power, copper power, chrome ore power, Lead Zinc Ore, steel slag, aluminum ash, Si Mn mineral powder, bauxite refractory, nonferrous metal power, refractory matter, ceramic filter sand and metallurgical powder cold pellet making industry.

Pellet Machine for Charcoal Structure:

(1) The feeding part, is used to feed material so that the material can feed to roller evenly, it is driven by three phase asynchronous motor.

(2) The transmission part, main transmission system is: Motor - Triangle belt - Reducer - Exposed Gear - Roll.

(3) Forming part, mainly refers to the part of the host machine, its core part is roller.

Pellet Machine for Charcoal Customer Notice:

(1) Material size required before feeding into coal briquette press machine is better not more than 5mm, if large, it is necessary to crush them into smaller, or equip a crusher before briquetting machine. Our factory also produce this kind of crusher. Welcome to consult.

(2) Moisture content is around 12-15%. If not, it is necessary to get drying process in advance or inquiry us dryer machine.

(3) The finished products from briquette press machineis usually at Φ25-60mm, customized size.

(4) The final briquettes are smokeless, non-toxic, none peculiar and environmental protection, and easy transport.

(5) The shape can be Square, ball egg-shaped, round, oval, and column, elliptic type, pillow type and other special shapes by customizing the match molds.

Pellet Machine for Charcoal Technical Parameter:

Model: KF650-500-300

Reducer: ZQ650

Ratio: 40.17

Roller Size: 500*300mm

Main Shaft Speed: 8-10r/min

Matched Power: 37kw

Capacity: 8.5-9.5t/h

Pressure Type: Constant Pressure/Hydraulic Pressure

Roller Material: 65Mn, high chrome alloy and 9Cr2Mo
