Product Details

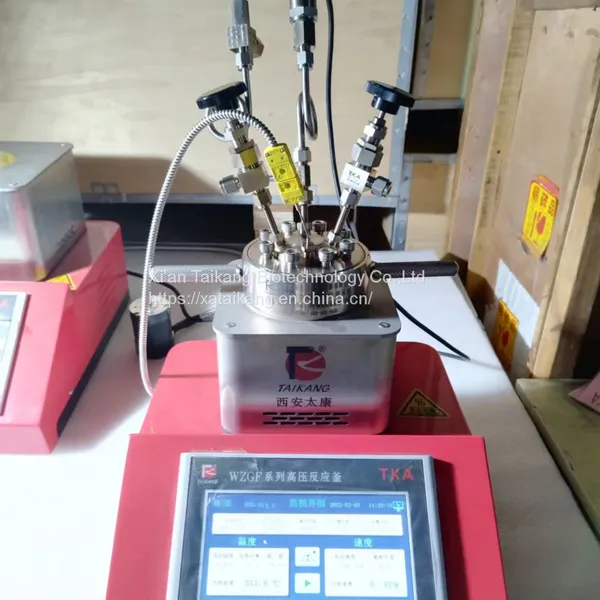

This product is used for chemical, chemical high-pressure synthesis or catalytic reaction, need to simultaneously determine the temperature, determine the rotational speed and add inert gases, calibration pressure and online sampling requirements of the experimental environment.
Technical highlights
1.the whole reaction process can be observed during the reaction.
2.the observation window is made of JGS2 high transmittance quartz glass, which can realise the on-line photochemical reaction under high pressure.
Application Examples
for photochemical high-pressure reaction, carbon dioxide CO2 reduction, carbon dioxide CO2 reduction to methanol, carbon dioxide CO2 reduction to methane, carbon dioxide CO2 reduction to methane.
CO2 reduction to methane CH4, NOx reduction and degradation, high pressure photocatalytic degradation of formaldehyde.
NOx reduction and degradation, high-pressure photocatalytic degradation of formaldehyde, etc. Photocatalytic reaction, Fischer-Tropsch reaction, hydrogenation reaction, polymerisation reaction, homogeneous reaction and supercritical reaction of CO2.
Model Specification
| PN | Size | Volume | Connecion Model | Pore diameter | Intelligent safety valve |
Display Accuracy |
| WGHX-25ML | Φ40*60 | 25ml | Screw Thread | 30mm | Yes | ±1ºC |
| WGHX-50ML | Φ60*80 | 50ml | Flange | 40mm | Yes | ±1ºC |
| WGHX-100L | Φ80*120 | 100ml | Flange | 40mm | Yes | ±1ºC |
| WGHX-200ML | Φ80*140 | 200ml | Flange | 60mm | Yes | ±1ºC |
| WGHX-500ML | Φ100*240 | 500ml | Flange | 60mm | Yes | ±1ºC |
Product Parameters
| Volume | 25ml,50ml,100ml,200ml,500ml,Can be costomized |
| Reactor Material | Stainless steel 316L/Titanium/Hastelloy (optional) |
| Operating pressure | 10MPa/20MPA(optional) |
| Valve and Connecting material | Stainless steel SU316L |
| Reactor liner container: | PTFE inner sleeve easy to clean |
| Transparent window material: | using polished JGS2 quartz glass (pressure window) or sapphire mirror |
| Operating temperature | The Max tem.p is 350ºC for Titanium/Hastelloy (optional),The Max tem.p is 250ºC for stainless steel.The tem.p display accuracy is ±1ºC. |
| Max pressure/Min Pressure | 10Mpa/1Pa |
| mixing speed | 0-2000RPM |
| Speed Accuracy | ±5RPM |
| Power Supply | 220V,50HZ, |
| The valve fittings are of European standard, and the interfaces are all standard configuration. The ball valve can be connected with the bottle filled with inert gas to carry out the inert protection experiment reaction, so that the reactant is not in direct contact with the air. | |
