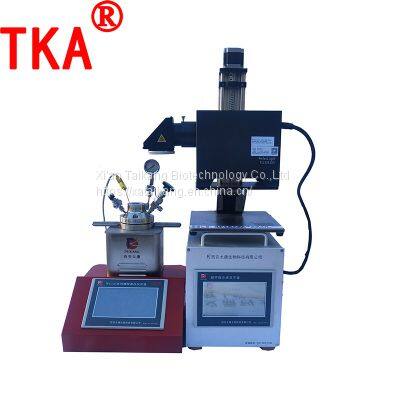

Visible High Pressure Photocatalytic Reactor

Xi'an Taikang Biotechnology Co.,Ltd
Visible High Pressure Photocatalytic Reactor thumbnail-1
Visible High Pressure Photocatalytic Reactor thumbnail-2
Visible High Pressure Photocatalytic Reactor photo-1
Visible High Pressure Photocatalytic Reactor photo-2
US$ 3421.54 - 4412.79 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
TKA
Place of Origin:
China
Model Number:
WZHX-50ml
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shang hai or Shen zhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TKA
Place of Origin China
Model Number WZHX-50ml
Type Reaction Kettle
Condition New
Voltage 220V,50Hz
Automatic Grade Semi-Automatic

It is used for chemical, chemical high-pressure synthesis or catalytic reaction, need to simultaneously determine the temperature, determine the rotational speed and add inert gases, calibration pressure and online sampling requirements of the experimental environment.


Technical Highlights:

1. Observe the whole reaction process during the reaction.

2. The observation window is made of JGS2 high transmittance quartz glass which can realise on-line photochemical reaction under high pressure.


Application Examples:

Suitable for photochemical high-pressure reaction, carbon dioxide CO2 reduction, carbon dioxide CO2 reduction to make methanol.

CO2 reduction to methane CH4, NOx reduction and degradation, high pressure photocatalytic degradation of formaldehyde.

NOx reduction and degradation, high-pressure photocatalytic degradation of formaldehyde, etc. Photocatalytic reaction, Fischer-Tropsch reaction, hydrogenation reaction, polymerisation reaction, homogeneous reaction and supercritical reaction of carbon dioxide. Hydrogenation, polymerisation, homogeneous reaction and supercritical reaction of carbon dioxide.


Parameters


Pressure gauge0.25 grade
Range0-16Mpa
Safe pressure12.5Mpa
Pipe outer diameter3mm
wall thickness1mm
Stirring power100W
Room temperature280 °C
Temperature control accuracy<±0.5 °C
The kettle cover is distributed as two gas channels and one liquid sampling, one for safe pressure relief, one for pressure display, and one for temperature measurement in the kettle.
The whole device is equipped with a set of special hydrogenation and inflation hoses for high-pressure hydrogen cylinders.



Product Tags: photocatalytic reactor , photochemical reacto , Xenon Cold Light Sourc , chemical equipmen , Chemical High Pressure Reacto , Stainless Steel Autoclav
