Micro High Pressure Photocatalytic Reactor

Xi'an Taikang Biotechnology Co.,Ltd
Micro High Pressure Photocatalytic Reactor thumbnail-1
Micro High Pressure Photocatalytic Reactor thumbnail-2
Micro High Pressure Photocatalytic Reactor thumbnail-3
Micro High Pressure Photocatalytic Reactor thumbnail-4
Micro High Pressure Photocatalytic Reactor thumbnail-5
Micro High Pressure Photocatalytic Reactor photo-1
Micro High Pressure Photocatalytic Reactor photo-2
Micro High Pressure Photocatalytic Reactor photo-3
Micro High Pressure Photocatalytic Reactor photo-4
Micro High Pressure Photocatalytic Reactor photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
TKA
Place of Origin:
China
Type:
Reaction Kettle
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TKA
Place of Origin China
Type Reaction Kettle
Condition New
Voltage 220V,50Hz
Automatic Grade Manual

Description:

This product is used for chemical, chemical high-pressure synthesis or catalytic reaction, it is necessary to measure the temperature, measure the rotational speed, add inert gas, stabilize the pressure and realize the required experimental environment such as online sampling.


Feature:

1.The entire reaction process can be observed during the reaction.

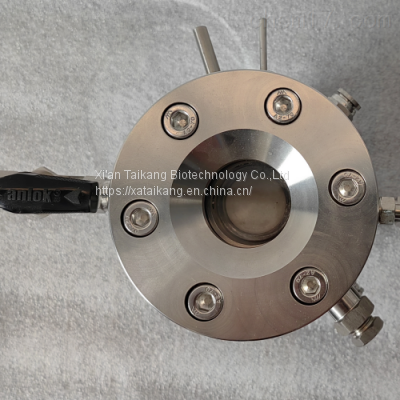

2. The observation window adopts JGS2 high transmittance quartz glass to realize online photochemical reaction under high pressure.


Parameters:


Volume

25ml,50ml,100ml,200ml,500ml,Can be costomized

Reactor Material

Stainless steel 316L/Titanium/Hastelloy (optional)

Operating pressure

10MPa/20MPA(optional)

Valve and Connecting material

Stainless steel SU316L

Reactor liner container:

inner sleeve easy to clean

Transparent window material:

using polished JGS2 quartz glass (pressure window) or sapphire mirror

Operating temperature

The Max tem.p is 350ºC for Titanium/Hastelloy (optional),The Max tem.p is 250ºC for stainless steel.The tem.p display accuracy is ±1ºC.

mixing speed

0-1500RPM

Speed Accurac

±5RPM


Product Tags: photocatalytic reactor , photochemical reactor , Chemical Reactor , Stainless Steel Reactor , xenon lamp source , light source
