Product Introduction

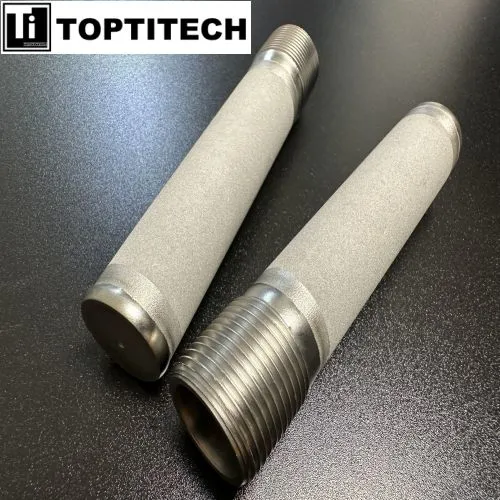

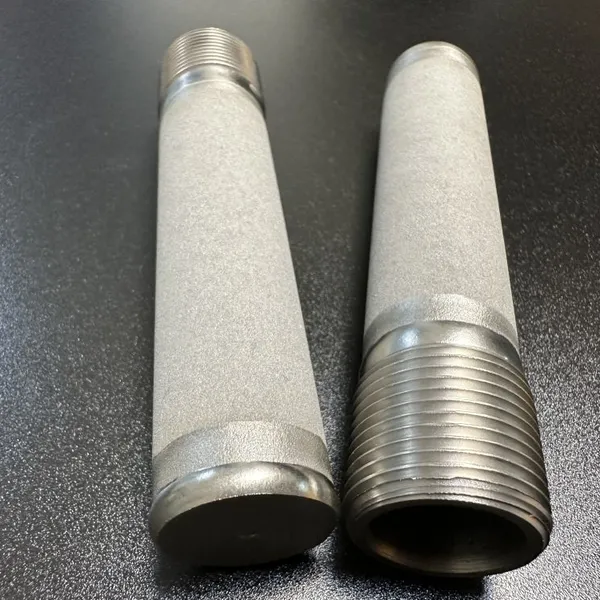

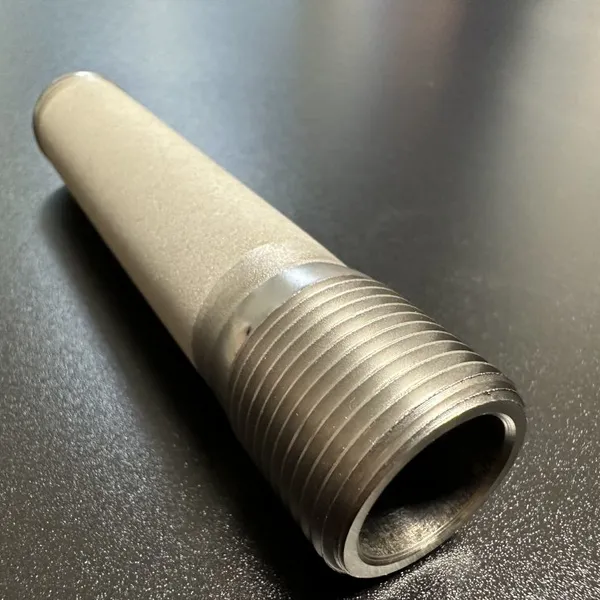

Sintered porous candle filter with M30 interface is created by compacting metal powder and subjecting it to high temperature sintering, resulting in a rigid and durable shape that possesses excellent air permeability and separation properties.
The characteristics of the filter, including its pore size, distribution, strength, and air permeability, are influenced by the fineness of the powder particles, as well as the compacting and sintering procedures employed.
TOPTITECH sintered porous candle filter with M30 interface, which features a sintered porous structure, is capable of achieving a filtration rating of 0.25–50 um, making it suitable for a wide range of filtration applications.
Parameters
Material: Titanium
Max. operating temperature:300 °C
Porosity:30%–35%
Pore size:10um
Size: 30*100mm
Compressive strength:3 MPa
Max. differential pressure:0.6 MPa
Features
1. The sintered porous candle filter exhibits exceptional separation capabilities while maintaining a low pressure drop, owing to its efficient air permeability.
2. With a high filtration rating, the sintered porous candle filter effectively removes suspended solids and particles, resulting in excellent purification performance.
3. The sintered porous candle filter has excellent mechanical strength, providing exceptional rigidity and plasticity for a wide range of filtration applications.
4. The sintered porous candle filter is highly resistant to corrosion, high temperatures, and high pressures, ensuring long-term durability in even the most demanding filtration scenarios.
Applications
Water Treatment: removing impurities and particles from water, making them suitable for water treatment applications in industries such as pharmaceuticals, food and beverage, and municipal water treatment.
Chemical Industry: used in the chemical industry to filter chemicals and solvents, remove impurities, and ensure product purity.
Oil and Gas Industry: used in the oil and gas industry to filter fluids such as crude oil, natural gas, and other hydrocarbons. They are also used to remove impurities from drilling mud and other fluids used in drilling operations.
Pharmaceutical Industry: used in the pharmaceutical industry to filter and purify drugs, vaccines, and other pharmaceutical products. They are also used to remove impurities from process water and other fluids used in pharmaceutical manufacturing.
Food and Beverage Industry: used in the food and beverage industry to filter liquids such as beer, wine, and juices. They are also used to remove impurities from processed water and other fluids used in food and beverage manufacturing.
Package and Shipment
1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.
2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the customer's designated place without damage.
