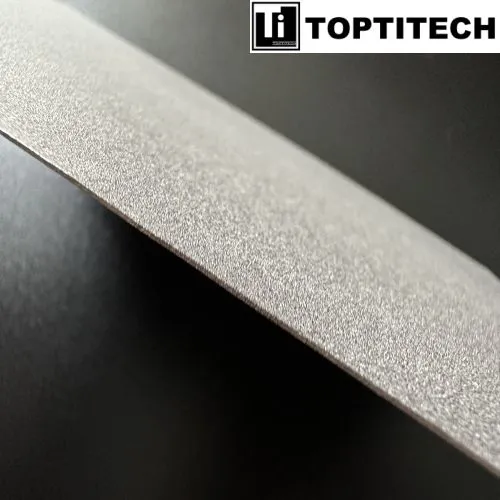

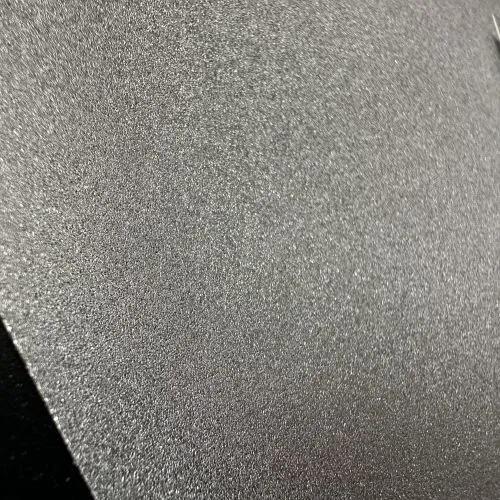

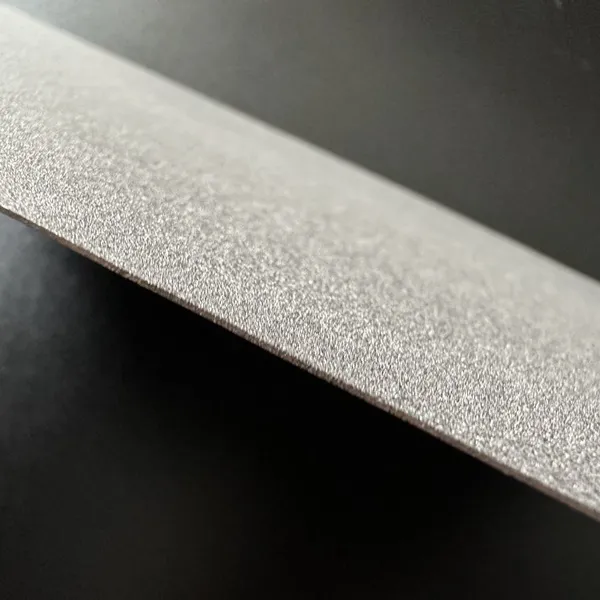

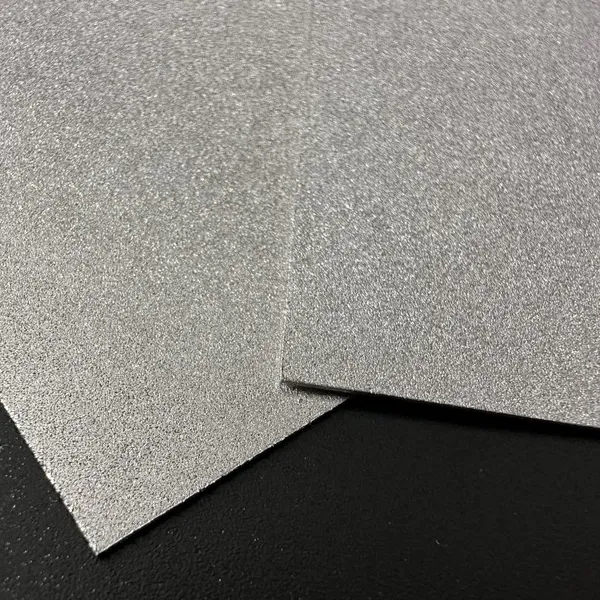

Product Introduction
Ultra-thin 0.6mm titanium porous transfer layer for hydrogen has a wide range of applications in hydrogen industry. In the hydrogen industry, these plates are used for hydrogen purification and separation, and they are an important component in many hydrogen-based technologies.
Ultra-thin 0.6mm titanium porous transfer layer for hydrogen has good electrical conductivity, gas permeability, liquid permeability and chemical stability. In electrochemical systems such as fuel cells, the application of porous titanium plates can improve the energy conversion efficiency and stability of electrochemical systems, thereby promoting the development and application of electrochemical systems.
Parameters
Material: Gr1 titanium powder
Purity: 99.6%

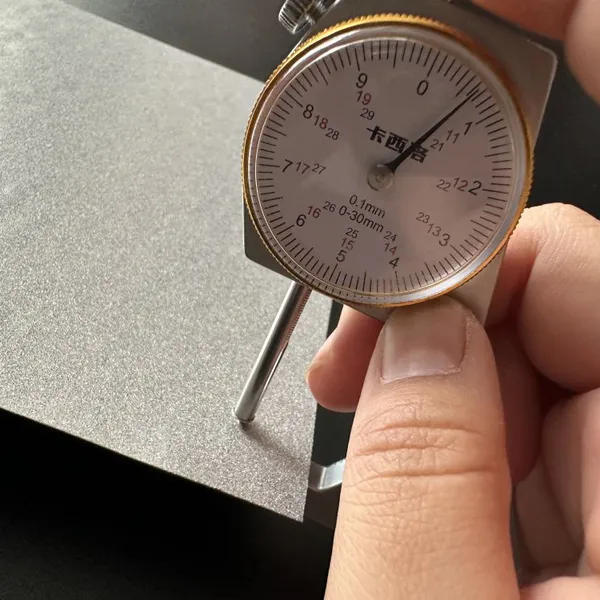

Thickness:0.6mm
Size: customized
Application: PTL GDL in PEM electrolyzer
Porosity: 35%
Pore size: 20um
Features
High conductivity: Titanium is a good conductive material, and the porous titanium plate has excellent conductivity and can effectively transport electrons.
High gas permeability: The porous titanium plate can control the parameters such as pore size and porosity to make it have high gas permeability, so that it can effectively transmit gases such as hydrogen and oxygen.
Good liquid permeability: The pore structure of the porous titanium plate can control the transmission of liquid, so that it has high liquid permeability.
High chemical stability: Titanium has good chemical stability and can operate stably for a long time in acidic or alkaline environments.
Applications
Hydrogen energy industry
Gas filtration
Oil and liquid filters
Muffler
Fuel Industry
Catalyst filtration
Package and Shipment
1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.
2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the customer's designated place without damage.
