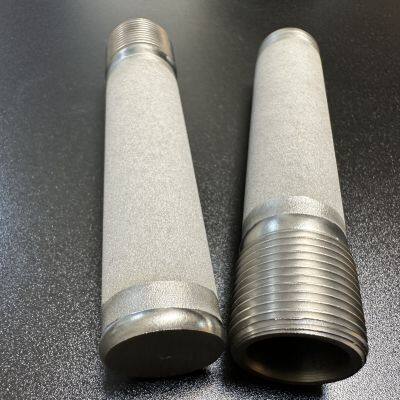

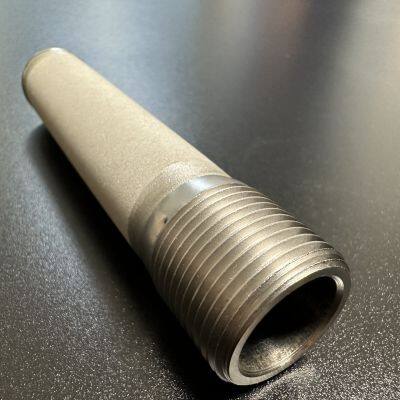

30" Titanium Porous Filter Element With M36 Interface Porous Titanium Filter Powder Metallurgy Filtration PEM Electrolysers

Product Introduction

30" Titanium Porous Filter Element With M36 Interface is a type of filter made from titanium metal that has a porous structure. The porosity in the filter is created by sintering titanium powder particles together under high temperature and pressure, resulting in a three-dimensional porous structure that allows fluids or gases to pass through while trapping particles or contaminants.

Due to their unique properties, 30"  Titanium Porous Filter Element With M36 Interface offers several advantages over other types of filters. They have high mechanical strength, excellent thermal stability, and can withstand high pressure and temperature. They are also resistant to corrosion and have a long lifespan, making them a cost-effective solution for filtering applications that require durability and reliability.

Parameter

Brand: TOPTITECH

Material: titanium powder

Length: 30”

Diameter: 60mm

Pore size: 55um

Filtration efficiency: 99%

Features

1. High porosity: Porous titanium filter elements have a high porosity due to the sintered titanium powder particles used in their manufacturing. This porosity allows for high flow rates of fluids or gases through the filter, making them ideal for applications where a high rate of filtration is required.

2. Corrosion resistance: Titanium is a highly corrosion-resistant material, and porous titanium filter elements are no exception. They can withstand exposure to a wide range of chemicals, making them ideal for use in harsh chemical environments.

3. High strength: Porous titanium filter elements have high mechanical strength, allowing them to withstand high-pressure and high-temperature conditions without deformation or damage.

4. Long lifespan: The durability and resistance to corrosion of porous titanium filter elements contribute to a long lifespan, reducing the need for frequent replacements and maintenance.

5. Customizable pore size: By changing the sintering conditions, the filter's pore size can be modified during the manufacturing process. This enables the development of filters with certain pore diameters to satisfy the requirements of various filtration applications.

6. Biocompatibility: Titanium is a biocompatible material, meaning it is non-toxic and can be used in medical and biological applications. Porous titanium filter elements are often used in the pharmaceutical and biotech industries due to their biocompatibility and resistance to corrosion.

7. Easy to clean: Porous titanium filter elements are easy to clean and maintain, making them a cost-effective filtration solution for many industrial applications.

Application

1. Chemical industry: Porous titanium filter elements are used for filtration in the chemical industry to remove impurities and contaminants from liquids and gases. They are commonly used in the production of acids, alkalis, and organic solvents, where high chemical resistance is required.

2. Pharmaceutical industry: Porous titanium filter elements are used in the pharmaceutical industry for the filtration of liquids and gases during the production of drugs and other medical products. They are often used to remove bacterial and viral contaminants from biological fluids.

3. Food industry: Porous titanium filter elements are used in the food industry to remove impurities and contaminants from liquids and gases during the production of food and beverages. They are commonly used in the production of beer, wine, and other alcoholic beverages.

4. Aerospace industry: Porous titanium filter elements are used in the aerospace industry for the filtration of hydraulic fluids, lubricants, and other fluids to remove contaminants that can cause component failure.

5. Oil and gas industry: Porous titanium filter elements are used in the oil and gas industry for the filtration of drilling fluids and other fluids that are used in exploration and production operations.

6. Environmental industry: Porous titanium filter elements are used in the environmental industry for the filtration of wastewater and other liquids to remove impurities and contaminants before discharge.

Package and Shipment

1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.

2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the customer's designated place without damage.
