Home > Products > Network/Firewall PC > Fanless Intel SkyLake/KabyLake Network/Firewall PC w/ 6 Gbe LAN Core i7-7500U

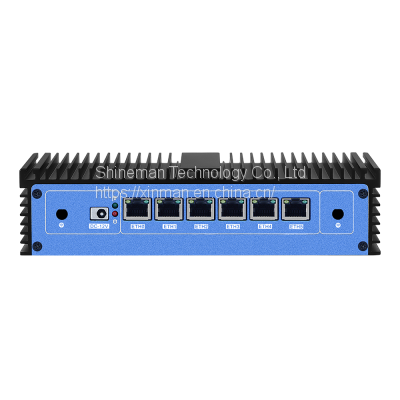

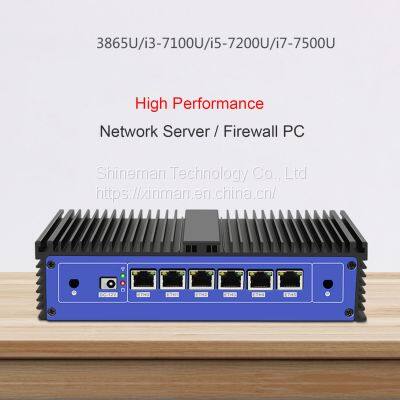

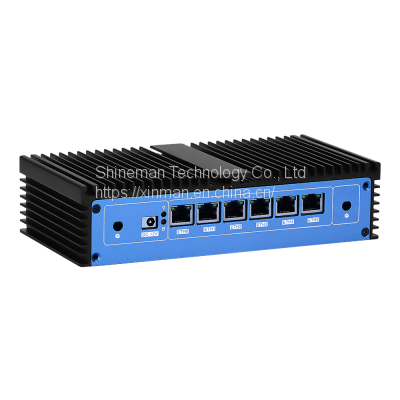

Fanless Intel SkyLake/KabyLake Network/Firewall PC w/ 6 Gbe LAN Core i7-7500U
US$ 138 - 165
/ Piece
100 Pieces(Min. Order)
- Shenzhen
- T/T L/C PayPal Cash Escrow
- 30 days
You May Like
-
Fanless Industrial Mini PC Firewall/Router w/ 6 Gbe LAN Ports Intel Core i7-7500U Processor
-
Intel 7th Gen Core i7-7500U Mini PC Thin Client 6GBe LAN Fanless Portable Computer
-
Intel 6th Gen SkyLake/KabyLake i7-6500U Network/Firewall Fanless PC w/ 6 Gbe LAN i211
-
Fanless Router/VPN/Firewall PC 6*Intel i211 Gbe Ethernet Core i5-6200U Mini PC
-
Ultral Small Fanless Mini PC Intel Baytrail 4 LAN Network Computer J1900 Barebone
-
Fanless Network Firewall/VPN PC 6*Intel i211 Gbe Ethernet Core i5-6200U Open Source Router
Product Details
| Brand Name | Shineman/OEM | Place of Origin | China | |
| Model Number | SM400-7500U | Type | Other, Network Computer | |
| Products Status | Stock |
Product Description
Fanless Intel SkyLake/KabyLake Network/Firewall PC w/ 6 Gbe LAN Core i7-7200U
Spotlight Features
●Soldered down 7th/6th Generation Intel Celeron/Pentium/Core i3/i5/i7 Processor
●Integrated Intel HD Graphics
●With HDMI，VGA，Supports Dual Display
●Singel DDR4 SODIMM，Max.32G/2133MHz
●1*mPCIE，Supports WiFi+BT/ 4G /3G
●1*mPCIE，Supports mSATA SSD
●6*Gigabit LAN，10/100/1000 Base-Tx Gbe
●12V Power supply
Specification
Processor | Intel Sky Lake-U/Kaby Lake-U Platform Processor |
Graphics | Intel UHD Graphics 510/520/610/620 |
Display | 1*VGA Port |
1*HDMI1.4, Max Reslution 4096X2304@24Hz | |
Memory | 1*DDR4 SO-DIMM，Max.32GB DDR4/2133MT/s |
Ethernet | 6*Intel i211AT， Supports WOL、PXE Boot |
Storage | 1*SATA3.0 |
1*mPCIE，Supports mSATA SSD | |
Expansion | 1*mPCIE，Supports WIFI/4G/3G Module |
1*SIM Card reader | |

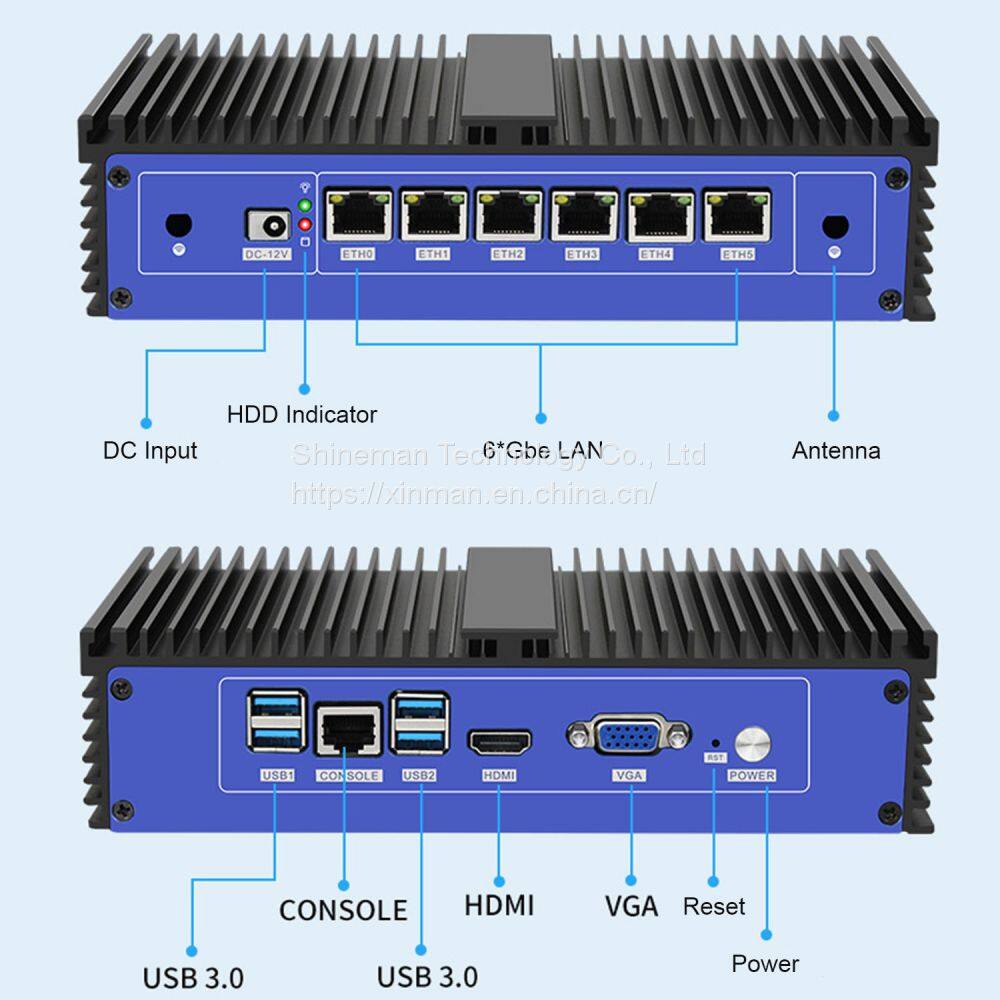

Rear Panel I/O | 1*DC_IN |
1*PWR_LED+HDD_LED | |
6*RJ45 | |
Front I/O | 1*PWR_BTN |
1*RST_BTN | |
1*VGA | |
1*HDMI | |
4*USB3.0 | |
1*RJ45 COM | |
BIOS | AMI UEFI BIOS |
Power Supply | DC 12V |
OS | windows10/11/Linux |
Heat Sink | Fanless |
OTR | -10℃～60℃ |
STR | -20℃～70℃ |
Humidity | 5%-95% Relative Humidity,Non-condensing |
Dimension | 215*110*53mm |
