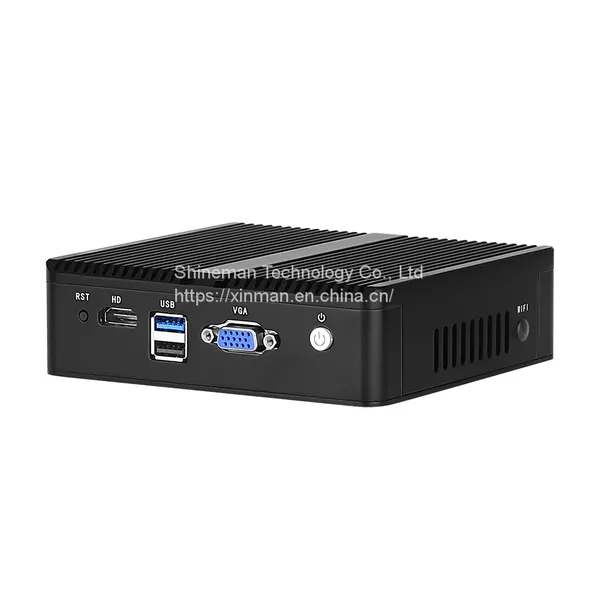

Help CenterUltral Small Fanless Mini PC Intel Baytrail 4 LAN Network Computer J1900 Barebone
Related Products
-
Fanless Network/Firewall PC 6*Intel I211 Gbe Ethernet Core I5-6200U Mini PCUS$ 112 - 120MOQ: 500 Pieces -
Fanless Intel SkyLake/KabyLake Network/Firewall PC w/ 6 Gbe LANUS$ 115 - 135MOQ: 100 Pieces
-
Fanless Intel SkyLake/KabyLake Network/Firewall PC w/ 6 Gbe LAN Core I7-6500UUS$ 124 - 145MOQ: 100 Pieces
-
Fanless Intel SkyLake/KabyLake Network/Firewall PC w/ 6 Gbe LAN Core I5-7200UUS$ 128 - 139MOQ: 100 Pieces
-
Fanless Intel SkyLake/KabyLake Network/Firewall PC w/ 6 Gbe LAN Core I7-7500UUS$ 138 - 165MOQ: 100 Pieces
Spotlight Features
●Soldered down Intel Baytrail-D/M Celeron/Pentium Processor
●Integrated Intel HD Graphics
●With HDMI,VGA,Supports Dual Display
●Single Channels DDR3，Max.8G/1333MHz
●1*mPCIE，Supports 3G/4G Module
●1*mPCIE，Supports mSATA SSD
●4*Gbe LAN，10/100/1000 Base-Tx Gbe Compatible
●12V Power supply
Specification
Processor | Intel Baytrail |
Graphics | Intel HD Graphics |
Display | 1*VGA |
1*HDMI1.4 | |
Memory | 1*DDR3 SO-DIMM，Max.8GB DDR3L/1333MT/s |
Ethernet | 4*Intel i211， Supports WOL、PXE Boot |
Storage | 1*SATA 3Gbps |
1*mSATA | |
Expansion | 1*mPCIE，Supports 3G/4G Module |
1*SIM Card Socket | |

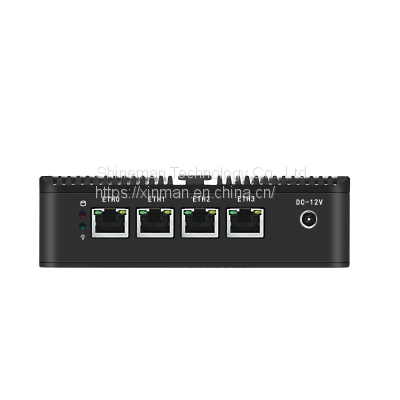

Rear Panel I/O | 1*DC_IN |
4*RJ45 | |
1*PWR_LED/HDD_LED | |

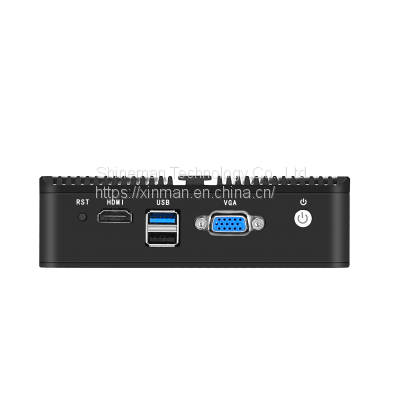

Front I/O | 1*PWR_BTN |
1*USB3.0 | |
1*USB2.0 | |
1*HDMI | |
1*VGA | |
1*RST_BTN | |
BIOS | AMI UEFI BIOS |
Power Supply | DC 12V |
OS | Windows7/10/Linux |

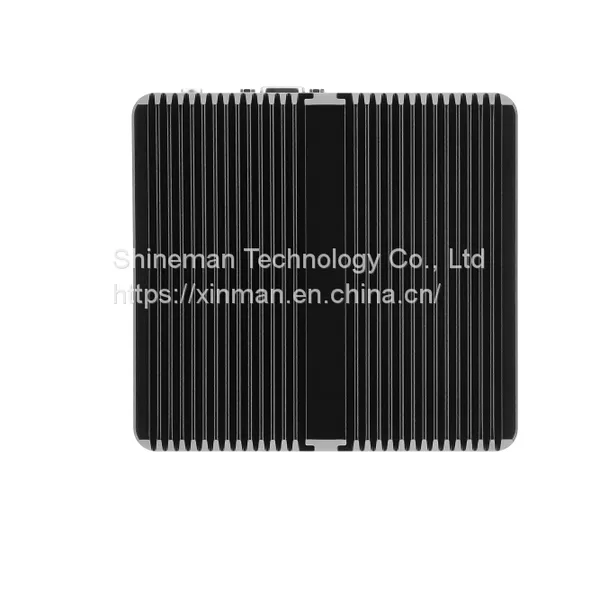

Heat Sink | Fanless |
OTR | -10℃～60℃ |
STR | -20℃～70℃ |
Humidity | 5%-95% Relative Humidity,Non-condensing |
Dimension | 126*136*40mm |
