Intel 7th Gen Core I7-7500U Mini PC Thin Client 6GBe LAN Fanless Portable Computer
Intel 7th Gen Core i7-7500U Mini PC Thin Client 6GBe LAN Fanless Portable Computer
Spotlight Features
●Soldered down 7th/6th Generation Intel Celeron/Pentium/Core i3/i5/i7 Processor
●Integrated Intel HD Graphics
●With HDMI,VGA,Supports Dual Display
●Singel DDR4 SODIMM,Max.32G/2133MHz
●1*mPCIE,Supports WiFi+BT/ 4G /3G
●1*mPCIE,Supports mSATA SSD
●6*Gigabit LAN,10/100/1000 Base-Tx Gbe
●12V Power supply
Specification
Processor | Intel Sky Lake-U/Kaby Lake-U Platform Processor |
Graphics | Intel UHD Graphics 510/520/610/620 |
Display | 1*VGA Port |
1*HDMI1.4, Max Reslution 4096X2304@24Hz | |
Memory | 1*DDR4 SO-DIMM,Max.32GB DDR4/2133MT/s |
Ethernet | 6*Intel i211AT, Supports WOL、PXE Boot |
Storage | 1*SATA3.0 |
1*mPCIE,Supports mSATA SSD | |
Expansion | 1*mPCIE,Supports WIFI/4G/3G Module |
1*SIM Card reader | |

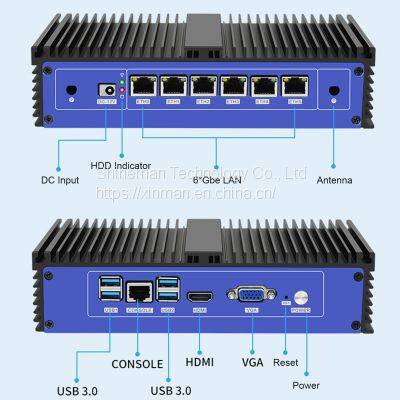

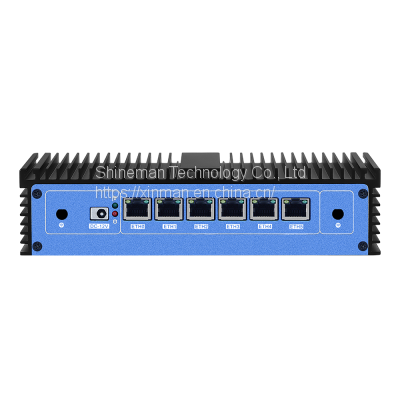

Rear Panel I/O | 1*DC_IN |
1*PWR_LED+HDD_LED | |
6*RJ45 | |
Front I/O | 1*PWR_BTN |
1*RST_BTN | |
1*VGA | |
1*HDMI | |
4*USB3.0 | |
1*RJ45 COM | |
BIOS | AMI UEFI BIOS |
Power Supply | DC 12V |
OS | windows10/11/Linux |
Heat Sink | Fanless |
OTR | -10℃~60℃ |
STR | -20℃~70℃ |
Humidity | 5%-95% Relative Humidity,Non-condensing |
Dimension | 215*110*53mm |
Send Inquiry to This Supplier
