Fanless Metal Mini PC Industrial BOX Computer RS232/HDMI/VGA Integrated

Fanless Metal Mini PC Industrial BOX Computer RS232/HDMI/VGA Integrated

Spotlight Features

●Soldered down Intel Sky Lake-U/Kaby Lake-U/Kaby Lake-R Celeron/Pentium/ Core i3/i5/i7 Processor

●Integrated Intel HD Graphics 510/520/610/620

●With HDMI，VGA，Supports Dual Display

●Single CHs DDR4，Max.32G/2133MHz

●1*M.2 Key B，Supports SSD/4G/5G

●1*M.2 Key M，Supports 2242/2280 SSD

●1*M.2 Key E，Support WIFI+BT Module

●2*Gbe LAN，10/100/1000 Base-Tx Gbe

Specification

CPU	Intel Sky Lake-U/Kaby Lake-U/Kaby Lake-R Platform Processor
Chipset	SoC
Display	Intel HD Graphics 510/520/610/620
	1*HDMI, Max Reslution 4096X2304@24Hz
	1*VGA Port
Memory	1*DDR4 SO-DIMM，Max.32GB DDR4/2133MT/s
Ethernet	2*Realtek RTL8111H，Supports WOL、PXE Boot
AUDIO	1*Realtek ALC897
Storage	1*SATA3.0
	1*M.2 Key B， Supports M.2 2242 SATA SSD
	1*M.2 Key M， Base-CPU，Supports M.2 2242/2280 PCIE X4 SSD Only Premium-CPU，Support M.2 2242/2280 SATA&PCIE X4 SSD
Expansion	1*M.2 Key B， Supports SSD/4G/5G Optional

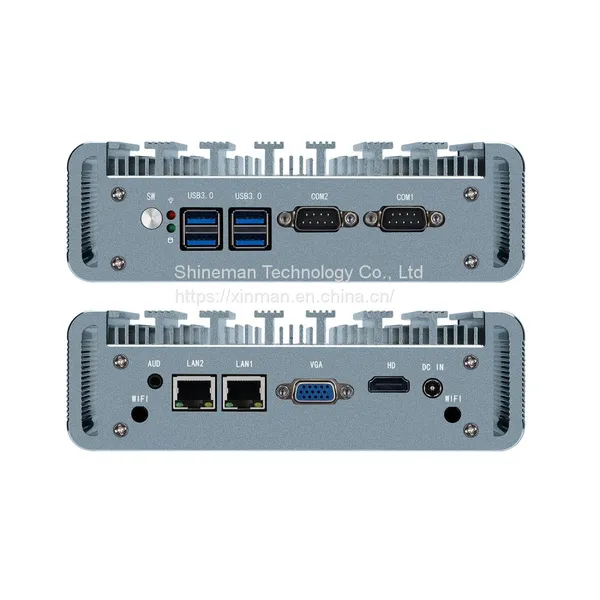

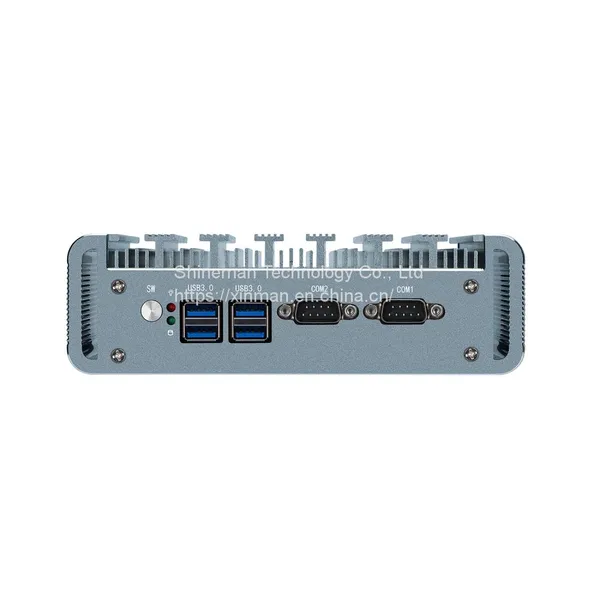

Front I/O	1*PWR_BTN
	1*PWR_LED+HDD_LED
	2* COM RS232
	4* USB3.0

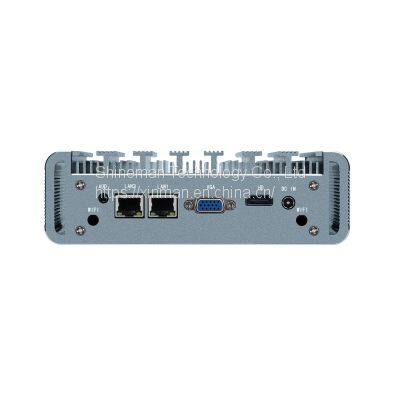

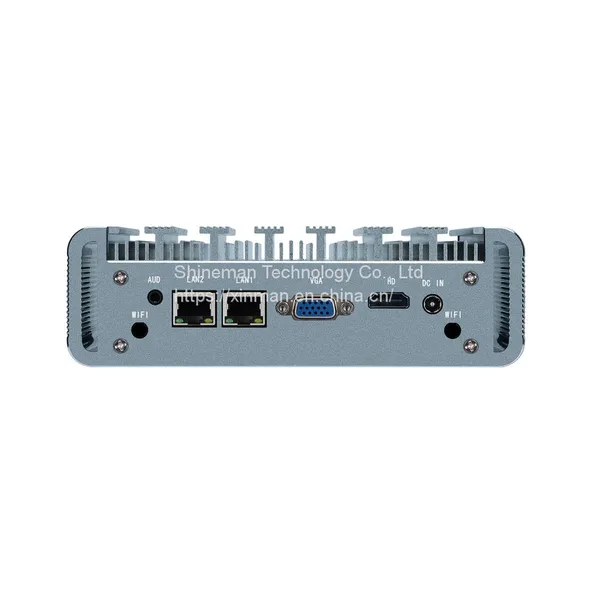

Real I/O	1* DC_IN
	1*VGA
	1*HDMI
	2*USB2.0
	2*LAN
	1*ADUIO(HP_Out/MIC_In 2 in 1）
BIOS	AMI UEFI BIOS
Power	DC_12V Input
OS	Windows10/11/Linux
Heat Sink	Fanless
OTR	-10℃～60℃
STR	-20℃～70℃
Humidity	5%-95% Relative Humidity,Non-condensing
Dimension	178.3*125*52mm
