Home > Products > Industrial Computer > Fanless Compact Mini PC Alder Lake N100 Quad Core 3.4GHz 2*HDMI Dual LAN Rugged Computer for Industrial Control/Home Entertainment
Fanless Compact Mini PC Alder Lake N100 Quad Core 3.4GHz 2*HDMI Dual LAN Rugged Computer for Industrial Control/Home Entertainment
- 10000 Piece / Pieces per Month
- Shenzhen
- T/T L/C PayPal Cash Escrow
- Mini-ITX Motherboard Intel Jasper Lake Quad Core N5095 CPU Dual DDR4 HDMI VGA RJ45 12VDC Mainboard
- Mini-ITX Motherboard Intel Jasper Lake Quad Core N5105 CPU 16GB DDR4 HDMI EDP Mainboard for POS
- Intel 12th Gen Alder Lake Quad Core N95 3.4GHz DDR4 HDMI LVDS mini-ITX Motherboard for POS SYS
- Network Security PC Motherboard Intel Atom 4C4T C3558R CPU 6*RJ45 2*SFP Gbe 2*SFP+ 10G Bypass PCIe x8 Expansion Mainboard
- Shineman NEW OPS I5 4200M Mini PC with Haswell Dual core 2.9Ghz 4K Display For Education Video Conference System
- Onboard Intel Core i7-8565U 4.6GHz Computer Motherboard for Industrial Machine Vision Automation 4*Gbe LAN 6*COM
Product Details
Brand Name: | Shineman | Place of Origin: | China | Model Number: | SM-N100 |
Type: | Embedded Computer | Products Status: | Stock |
Product Description
Spolights
CPU: Intel® 12th Alder Lake quad core N100 processor, Turbo 3.4GHz
Memory: Single Channel SO-DIMM DDR4 up to 32GB
Display: Integrated Graphics display via 2xHDMI2.0 and DP1.4(USB-C)

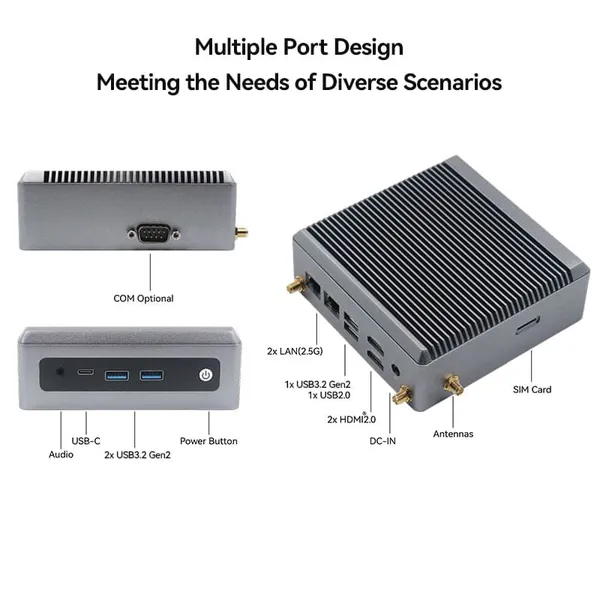

I/O Ports: 2xLAN, 3xUSB3.2, 1xUSB2.0, USB-C, SIM, COM optional
Ethernet: 2*2.5GBe LAN, 10/100/1000/2500Mbps

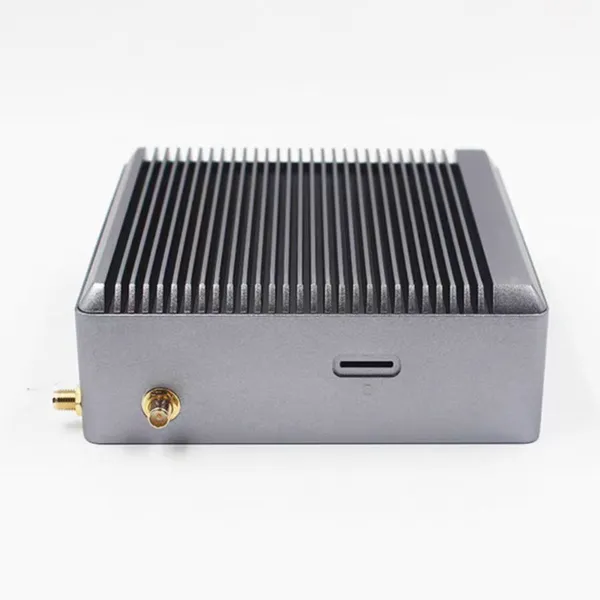

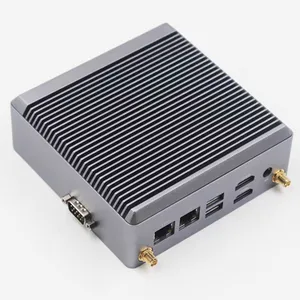

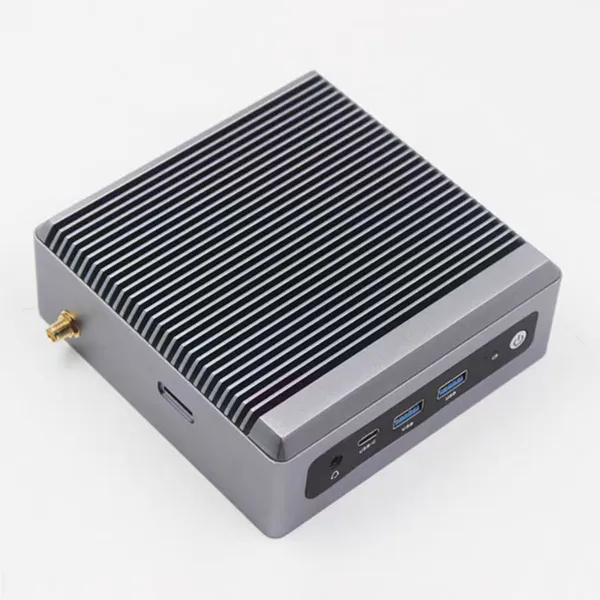

Simply designed compact alloy case in palm size, portable, compact and rugged
Specification
CPU: N100
Cores/Threads: 4C/4T
Max Turbo Frequency: 3.40GHz
Cache: 6MB Intel® Smart Cache
TDP: 6W
Memory Type: Single Channel SO-DIMM DDR4, Max. Capacity 32GB
GPU: Integrated Intel® UHD Graphics
Display Interface: 2xHDMI2.0 plus DisplayPort 1.4 through USB-C
Ethernet: 10/100/1000/2500 Mbps, Controller RTL8125 2x RJ45, Wake on LAN supported
Audio Codec: Realtek HD Interface 1xCTIA 2-in-1 Audio Jack, sopports Mic-in+Line-out
Storage: M.2 1xM.2 for 2280 SATA/4G SATA 1x FPC SATA
Expansion: M.2 1xM.2 for WiFi, supports PCIe, USB&CNVi SIM 1 EMMC optional
I/O: COM RS232 optional USB2.0 1 USB3.2 3 Type-C 1xUSB-C Support USB 3.2 Gen 2 upstream/DisplayPort 1.4 Alt Mode Wired Control: Optional
TPM: Optional
Dimension: 127mm x 127mm x 45.6mm
Power: 12V DC-in
Temperature Operating Temp. - 20°C to 60°C Storage Temp. - 40°C to 80°C Cooling Method Passive
Operating System Windows 10/11 64bit, Linux 64bit
