Help CenterSilver Aluminum Alloy Fanless Industrial Mini PC Intel Pentium 5405U 4x Gbe Ethernet/GPIO/6*COM WIN10/11/Linux Computer
Related Products
-
Rugged Fanless 4 LAN Factor Mini PC Intel Celeron J4125 2.0GHz DDR4 Embedded Industrial ComputerUS$ 69 - 88MOQ: 1 Piece -
Silver Aluminum Alloy Fanless Industrial Mini PC Intel 8th GEN Core I5-8260U 4x Gbe Ethernet/GPIO/6*COM WIN10/11/Linux ComputerUS$ 165 - 228MOQ: 1 Piece
-
Silver Aluminum Alloy Fanless Industrial Mini PC Intel 8th GEN Core I7-8565U 4x Gbe Ethernet/GPIO/6*COM WIN10/11/Linux ComputerUS$ 165 - 228MOQ: 1 Piece
-
Rugged Fanless 4 LAN Factor Mini PC Intel Celeron N4000 2.6GHz Turbo DDR4 Embedded Industrial ComputerUS$ 56 - 69MOQ: 1 Piece
-
Embedded Fanless Alloy Industrial Mini Computer Intel Dual CPU 3865U 4K Display DDR4 4*USB 3.0 2*COM for Industrial Automation Stable ControlUS$ 59 - 75MOQ: 10 Pieces
Spotlight Features
●Soldered down 10th/8th Generation Intel Celeron/Pentium/Core i3/i5/i7 Processor
●Integrated Intel UHD Graphics
●With HDMI，LVDS，Supports Dual Display
●Dual Channels DDR4，Max.64G/2666MHz
●1*mPCIE，Supports WiFi/3G/4G module
●1*M.2 Key M，Supports 2242/2280 SSD
●4*Gigabit LAN，10/100/1000M
●Realtek 5.1 Channels HDA Codec
●6*COM，COM1/COM2 supports RS232/
RS422/RS485

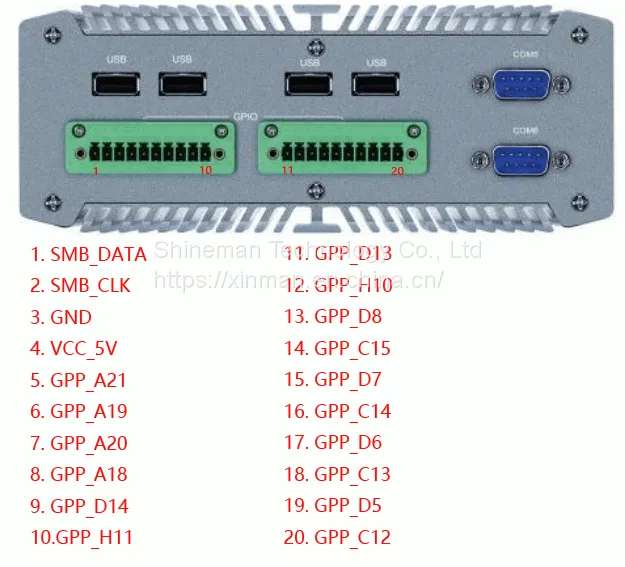

●1*16 bit programmable GPIO
●9V-36V Power supply
Specification
Processor |
Intel Whiskey Lake-U/Coffee Lake-U/Comet Lake-U |
Graphics |
Intel UHD Graphics |
Display |
1*HDMI1.4, Max Reslution 4096X2304@24Hz |
Memory |
2*DDR4 SO-DIMM，Max.64GB DDR4/2666MT/s |
Ethernet |
4*Intel i211 Gbe， Supports WOL、PXE Boot、POE |
AUDIO |
1*Realtek ALC662，5.1 CHs HDA Codec，Whit MIC_IN/HP_OUT |
Storage |
1*SATA3.0 |
1*M.2 KEY M，Supports M.2 2242/2280 SATA/NVME SSD | |
Expansion |
1*mPCIE，Support WiFi/3G/4G Module |
1*SIM Card socket | |

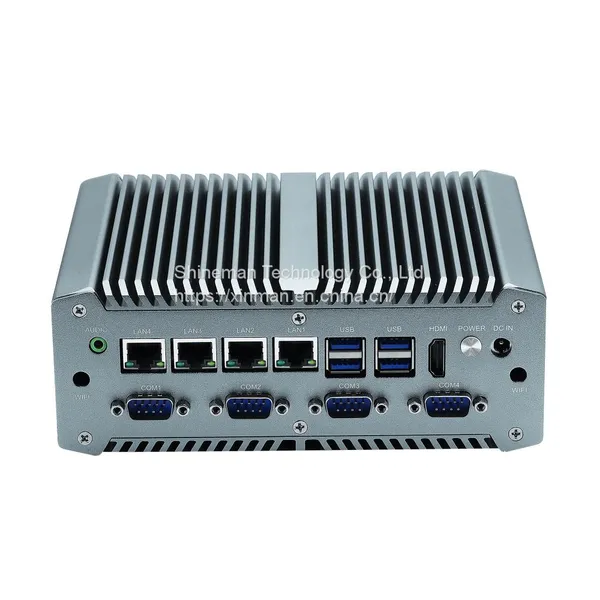

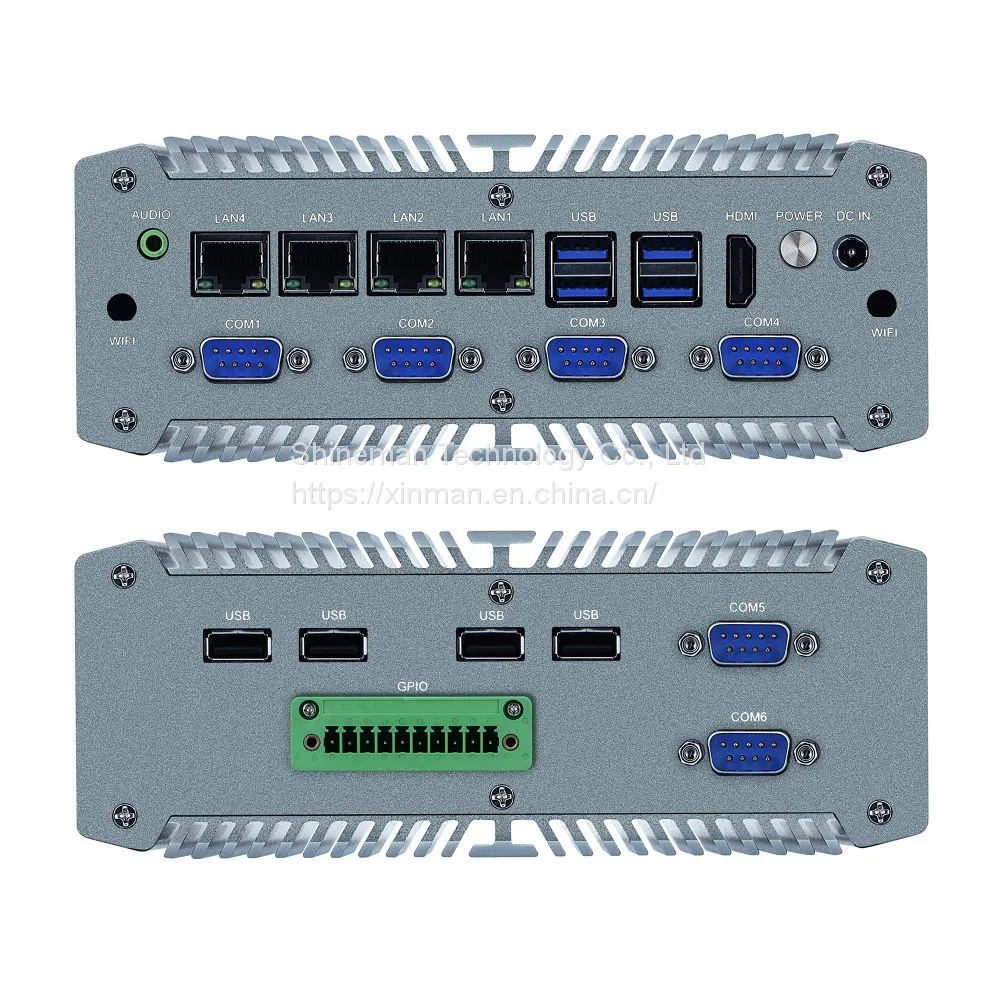

Rear Panel I/O |
1*DC_IN |
1*PWR_BTN | |
1*HDMI | |
4*RJ45 | |
4*USB3.0 | |
1*AUDIO | |
4*COM | |
Front Panel I/O |
1*GPIO |
2*COM | |
4*USB2.0 | |
BIOS |
AMI UEFI BIOS |
Power Supply |
DC 9-36V Range |
OS |
windows10/11/Linux |

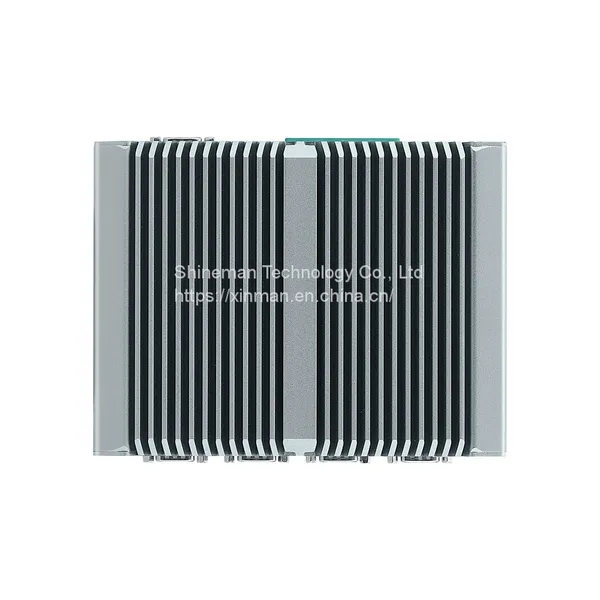

Heat Sink |
Fanless |
OTR |
-15℃～70℃ |
STR |
-25℃～85℃ |
Humidity |
5%-95% Relative Humidity,Non-condensing |
Dimension |
185*141*70mm |
Weight |
2Kg |
