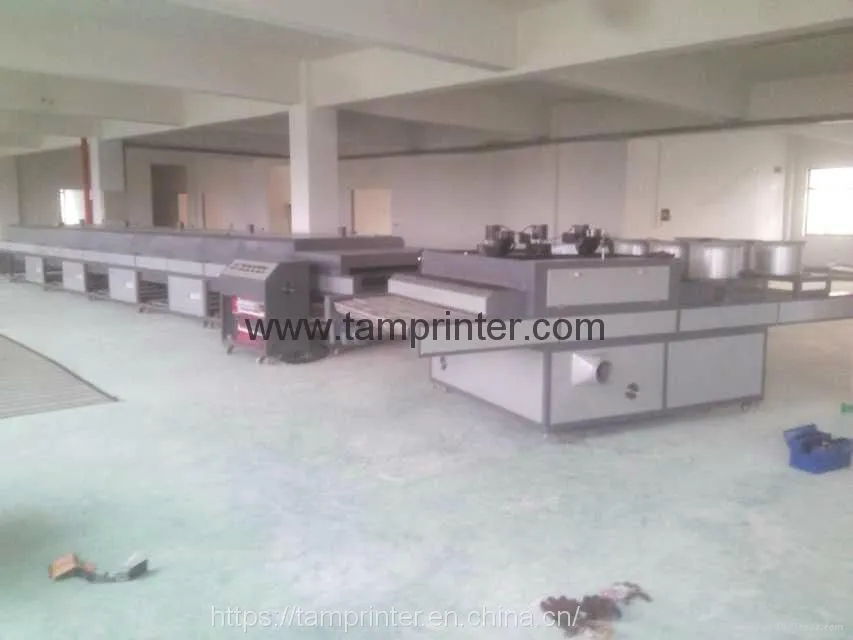

Ultraviolet, infrared integrated dryer
UV very glossy varnish roll coating on paper board
Features:
This machine is the ultraviolet, infrared set in one painting dryer
Type 1, UV4KW / IR-6.5KW
Belt Width: 600mm,
frequency control speed : 0-11 .5m/min,
Equipment Dimensions: 7000x980x1800mm

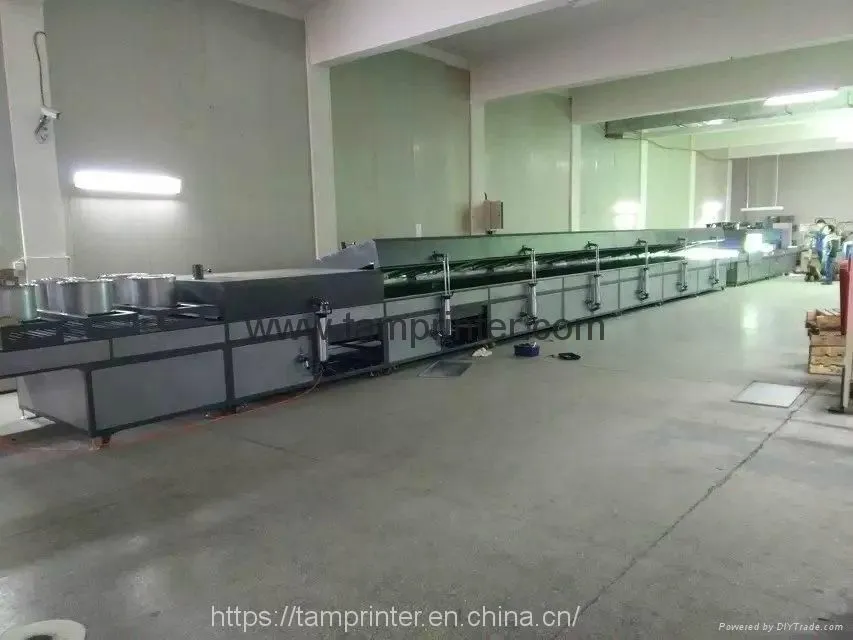

Type 2, Dryer tunnel for 3D spray uv inks ,such as plastic toy car...
Such a drying tunnel tech content,
Because of high product , consider thermal insulation
This drying tunnel post line will be lengthened,
Then add wind screens compartment temperature
11 meters IR drying tunnel,
uv tunnel 4 m
Machine length of 15 meters,

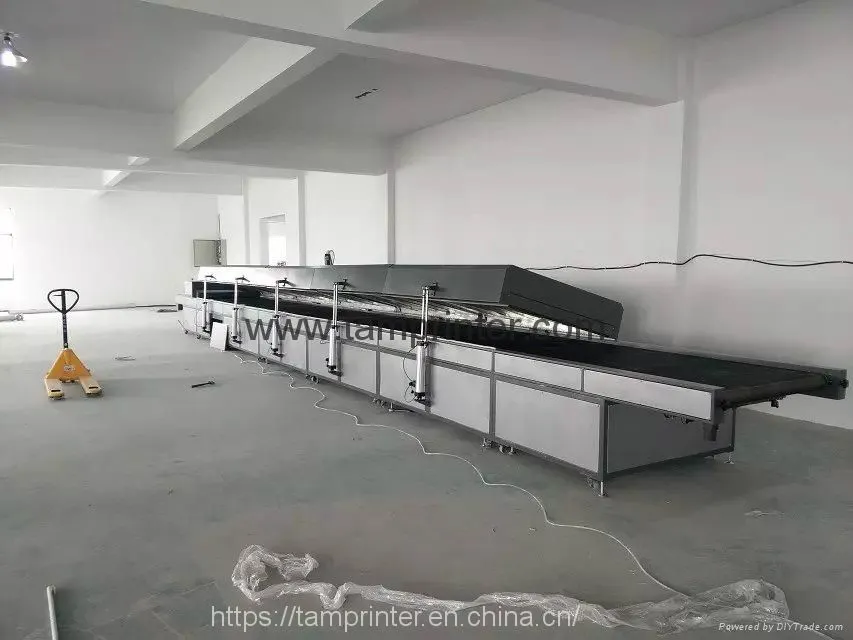

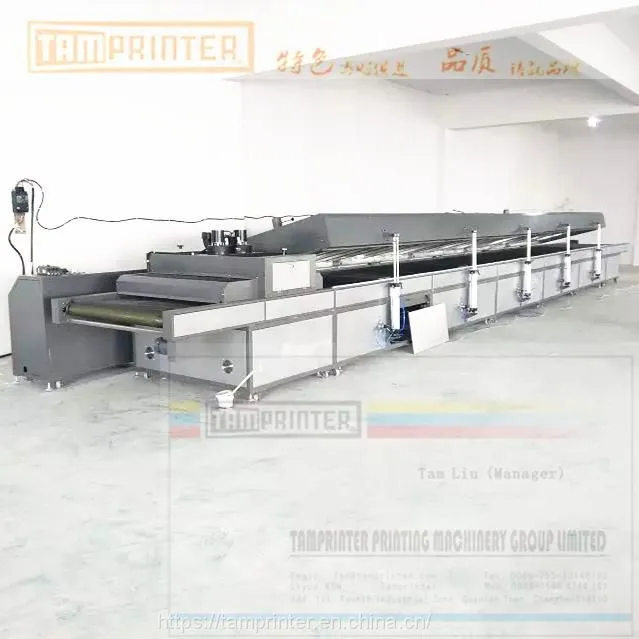

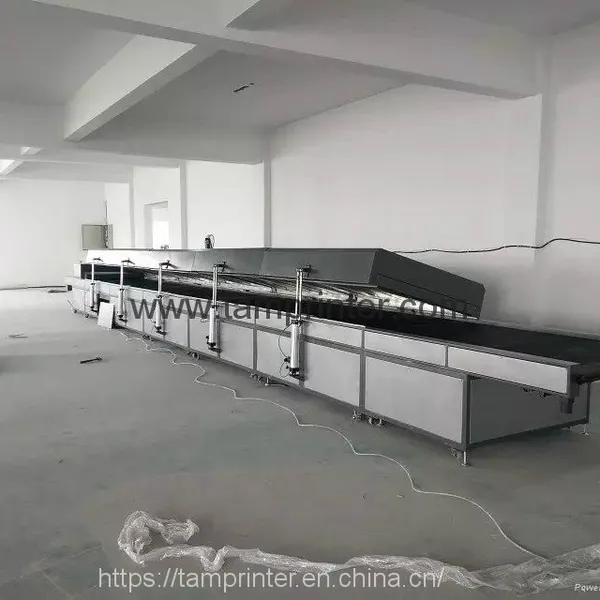

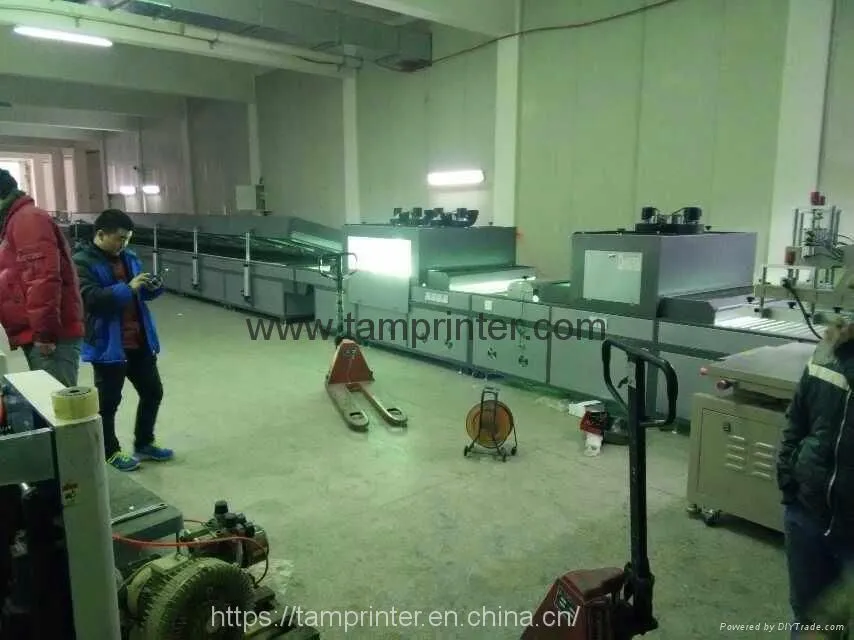

Type 3, corrugated paper screen printing dryer UV&IR combined tunnel machine
teflonE belt width 1.6m length 20m
2m inlet +1.5m uv(including 2pcs *8kw)+0.2m space+2m IR+2M IR+1.8M outlet
ir tunnel including 24pcs*1.2kw Quartz medium wave infrared heating tube
First uv and then infrared, can be mixed or used alone

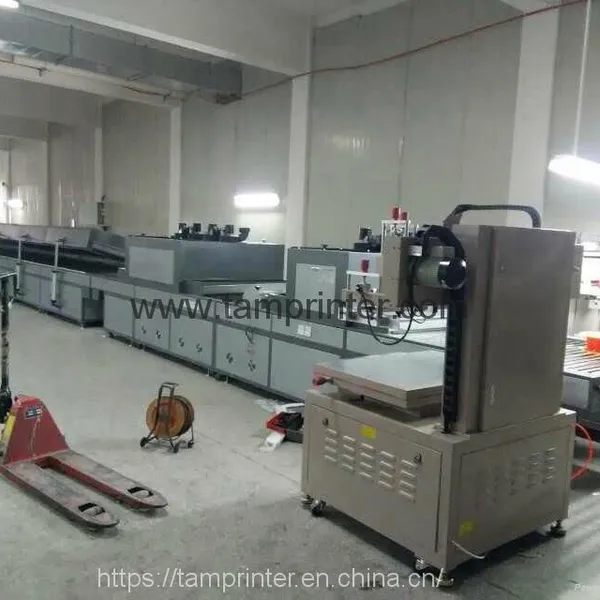

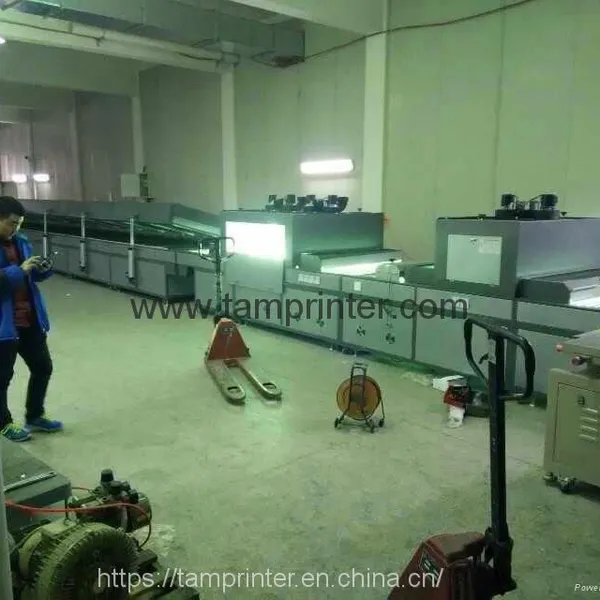

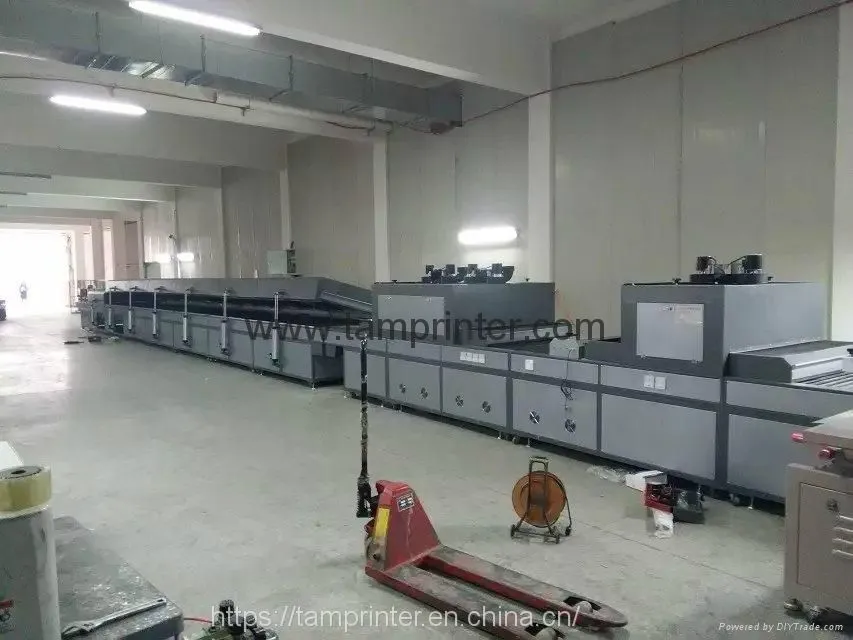

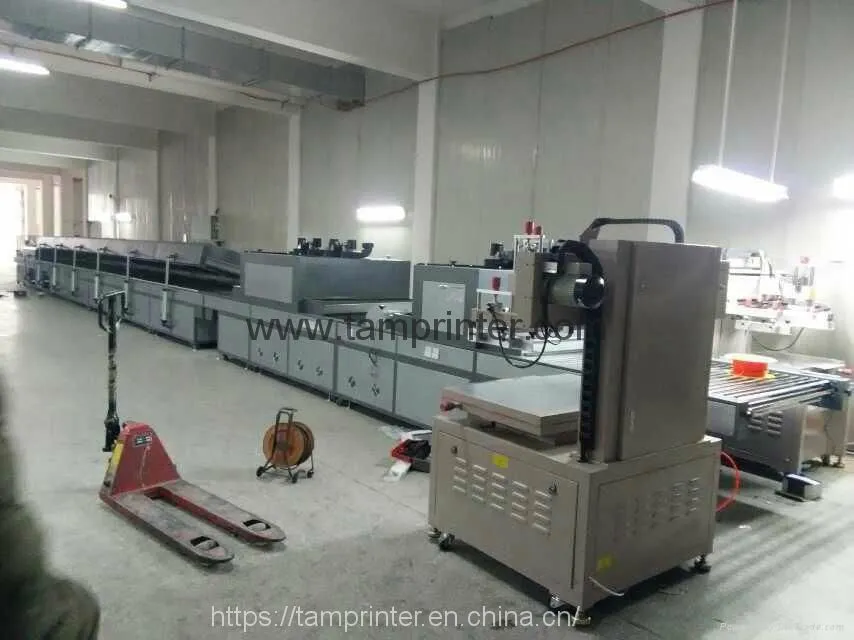

We made the screen printing pattern size of 1500x1500mm for corrugated paper, just like the material of carton. The pallet stacked paper was 800 high, which was transported to the automatic uploading machine by forklift (without dust removal and electrostatic removal device). The manipulator caught the automatic conveyor, adsorbed it on the PVC belt, and dragged the belt to the screen printing machine through the servo motor for printing and drying. Then printing, then drying, into the automatic stacker, forklift to pick up the pallet
In the whole process, the paper is always firmly attached to the PVC belt. One color uses a servo motor, and multiple colors use multiple servo motors to synchronize, because the PVC belt is too long and may not be accurate and affect the accuracy
Additional Info
Packaging Detail: Plywood case
Delivery Detail: 1-2 weeks
Payment: T/T L/C Western Union
Price term: CIF/CFR/FOB/FCA/EXW
Minimum Order: 1 set
