TM- 3DUV -2 Hexahedron 3M Universal Primer treatment machine
Parameter:
Belt Width Size: 400mm
Conveyor belt Stainless SUS304
Maximum speed: 0~ 12m/min
Power : 380V/50HZ/3P 24Kw
Top Exhause Pipe Diameter: 200mm
If Clean room, oven inside about 65 celsius
Machine net Weight: 1230kg
Machine Size: 3200*1020*2500mm about 11CBM
Lamp Lifetime about 1000 hours
Application nylon + fiber, PET, EVA,PP glass, ceramic, etc.
Plywood Packing
Payment Terms T/T , LC
Stock :20sets color Red ,white or blue random delivery
application

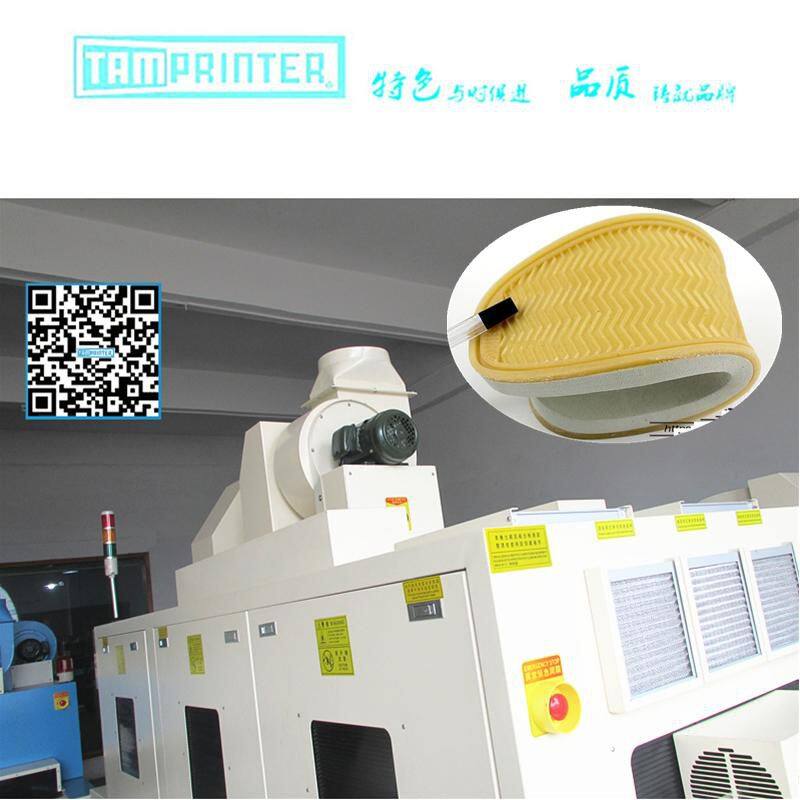

This machine is suitable for the molding of shoe materials such as EVA and MIDE. The UV treatment agent is wiped on the shoe material. After being dried, it is irradiated by an ultraviolet UV irradiator. The UV light causes the treatment agent to generate free radicals and initiates the polymerization reaction. The shoe material has been increased in polarity, making it easy to adhere
Characteristic
1. Apply to shoe materials that need to be irradiated on both sides.
2. The upper and lower layers are independently controlled and can be used for single-side illumination.
3. High output, saving more than 1,000 pairs per hour.
4. Labor-saving, traditional machines require twice-irradiated shoes, and the machine is completed at one time.
5. Special style design, low temperature, avoid EVA foam deformation.
6. Newly increased independent freezing area, lower internal temperature, shoe material irradiation is more stable.
New detection function
1. When the lamp fails to light normally, it will immediately alarm and display the position of the faulty lamp.
2. Each light has its own strong and weak light control, which makes the operation easier.
3. When the UV system fails, the warning light flashes and the conveyor belt stops.
