Bottle Lengthened uv Dryer
- Shenzhen
- T/T L/C
You May Like
-
Bottle UV Drying Machine
-
Round/Plane Surface UV Drying Machine
-
Big Glass Manual Screen Printing Machine With Vacuum
-
Maquinas Deseri Grafiadegran Tamano With Spring Automatic Peeling Screen
-
A0 Oblique Arm Type 0-20mm Sheet Screen Printer Sheet Screen Printer
-
Big Semi-automatic Big Oblique Arm Screen Printer
Product Details
| Brand Name | Tamprinter | Place of Origin | China | |
| Model Number | TM-uv5304 | After-sales Service Provided | Overseas third-party support available | |
| Condition | New | Automatic Grade | Automatic |
Product Description

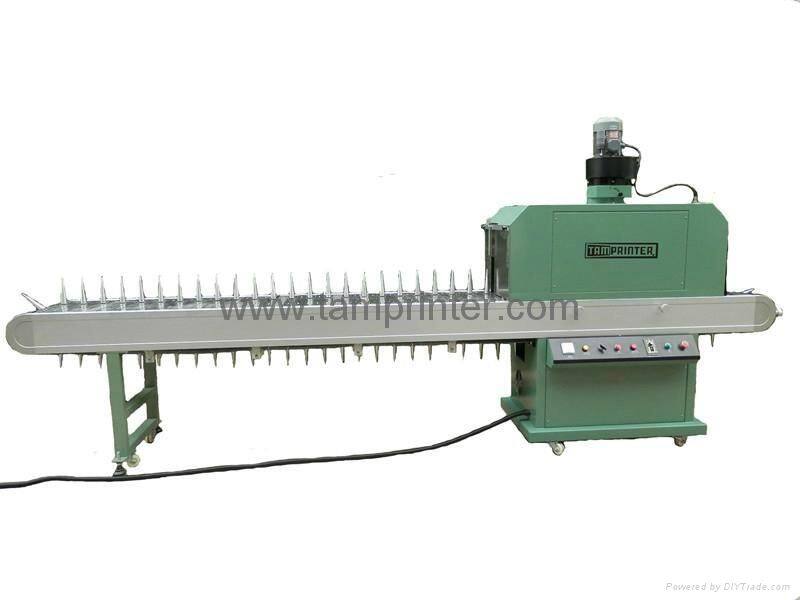

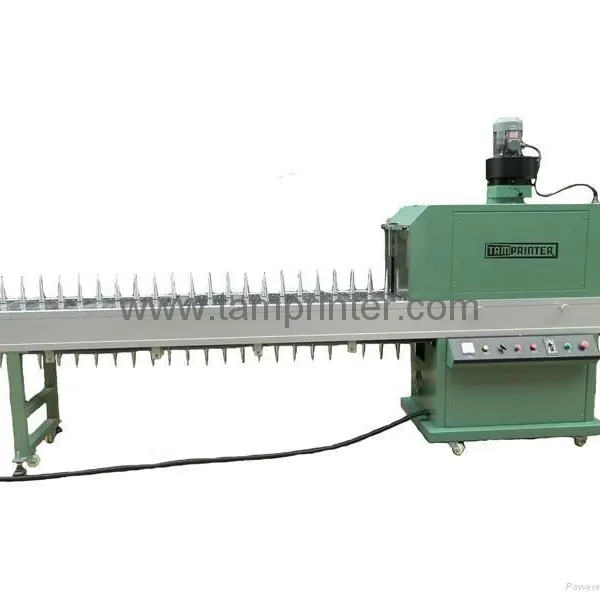

bottle uv machine _TM-uv5304
Specifications: | |
Belt width | 530mm |
Max height of Work piece | 400mm |
Conveyer size of Machine Inner | 400X120mm (WXH) |
Bottle mouth diameter | 12-24mm |
Conveyer size | 530mm |

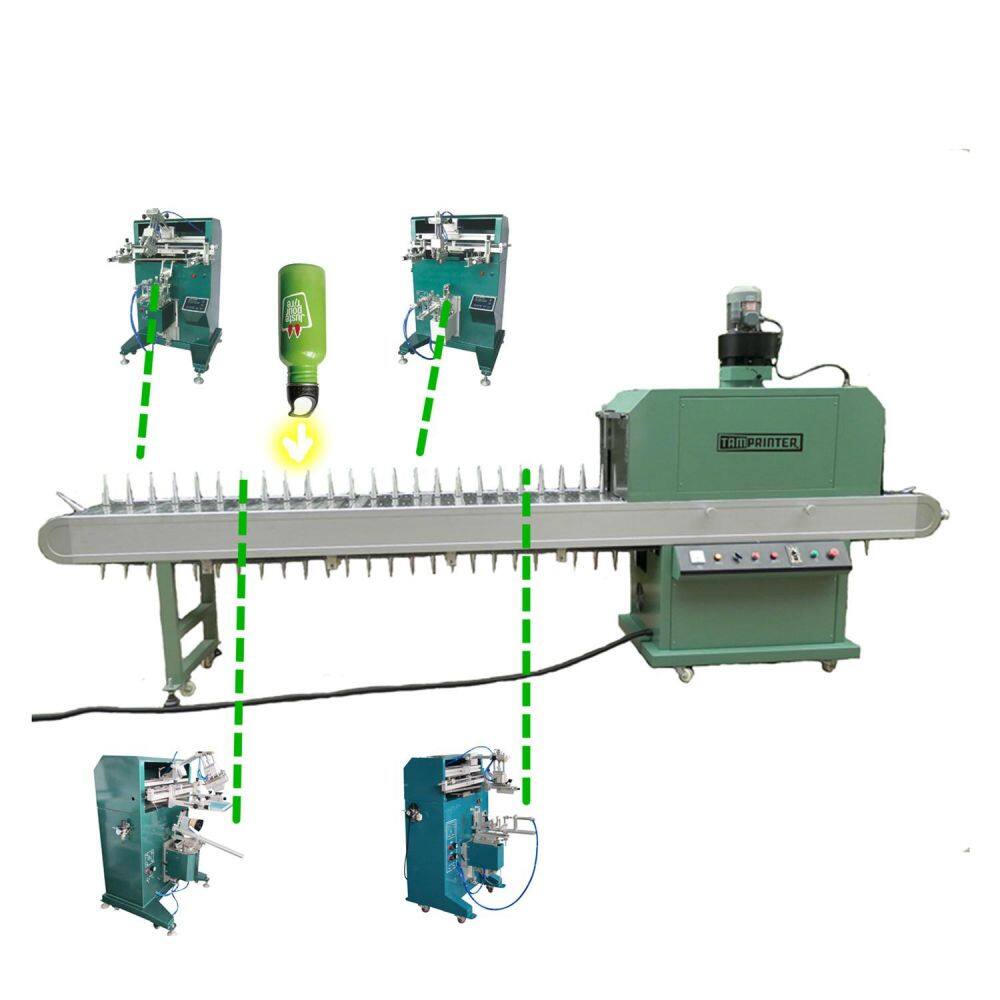

Output | 1800~3000Pcs/Hr fit 4 set screen printer |
Conveyer transfer speed | 0-10m/min |
UV lamp power | 4KW |
General power | 5KW |
Power supply | AC 380V/ 50Hz, 3-Phase |
Machine dimension | 4000X1800X1600mm (LXWXH) |
Machine weight | 550kg |
keg uv machine _TM-uv5304
Flat and Round UV Curing Machine
Application:
bottle uv machine _TM-uv5304is used for flat and round surfaces UV curing, it suite for bottle surface UV ink drying solid process and flat surface UV ink drying solid process.
Such as various of UV ink,UV adhesives,UV paint curing.
Features:
(1) With the high efficiency UV light, it can finish the UV curing quickly, the high level of UV light can be adjusted, and setting the right parameters for UV curing.
(2) LED display shows the conveyor running speed, convenient to process operation.
(3) The machine body adopts the extra-thick stainless steel for hardness and durable.
(4) UV lamp and transformers which are imported from United Kingdom that fit for special ventilation design, which can be max effectiveness.
(5) It suited for different UV curing process. This series of products is different with the traditional high-power, high-power UV equipment. In order to reduce the cost and improve output for our customer.
Packaging & Delivery
Packaging Detail: Wooden case
Delivery Time: Within 6 days after confirm payment
Hot Tags: Desktop Uv Coating Machine
Product Image
