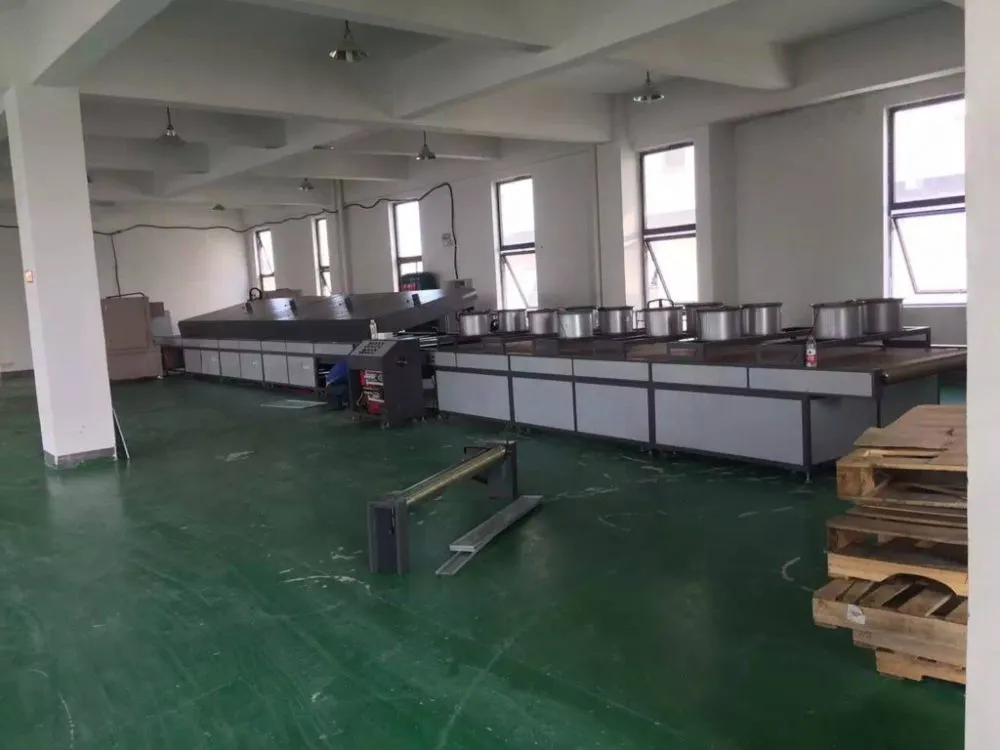

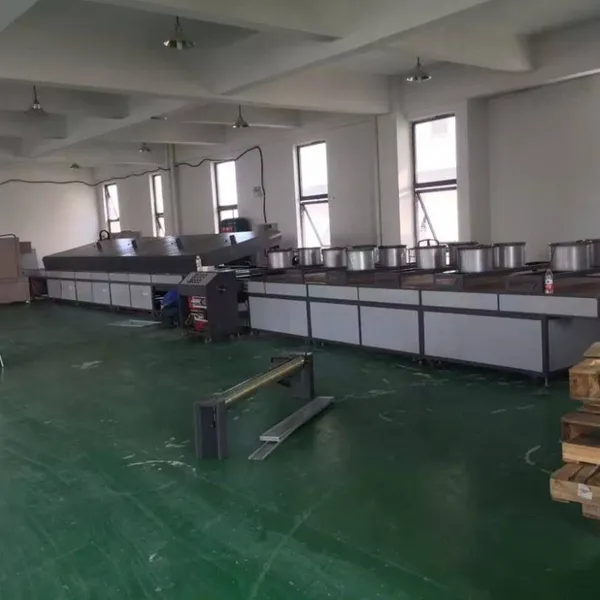

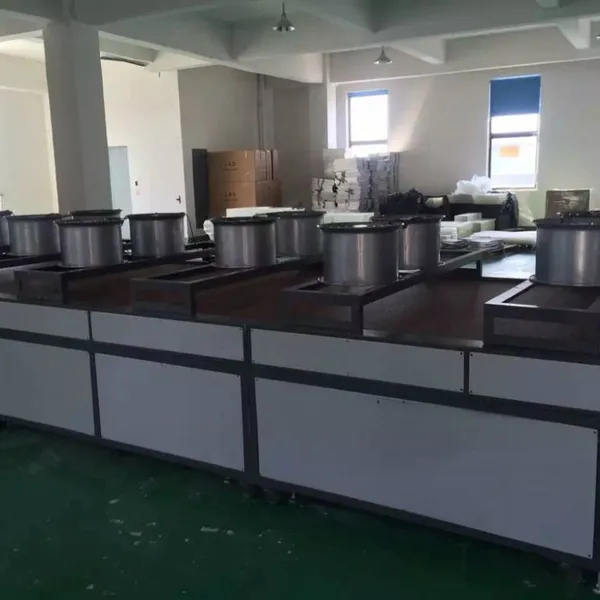

1. Name of the tunnel oven: membrane switch dedicated tunnel oven
2. Model of the tunnel oven: TAM-IR 885
3. Overall dimension: Total length 8000mm* total height 1270 mm* total width 850 mm;
4. Temperature range: Atmospheric temperature～+250℃ (adjustable);
5. Meter measurement accuracy: ≤±0.1℃;
6. Temperature uniformity: ≤±5℃(no-load);
7. Power supply: Three-phase and five-wire system, 380 V, 50 HZ;
Product introduction
Unique performance | Customer optional configuration |
Liner mirror surface is made of stainless steel, with better clean class; Inside is made of high-quality insulation material, with good insulation effect; Fast temperature rise, stable and precise temperature; Double over-heating protection, electric controlled, safe and reliable; Conveyor belt is frequency controlled, conveying speed is stable and adjustable; Conveyor belt anti-draft device is set, conveyor belt tightness is adjustable; Intelligent temperature controller, PID auto calculation, LED display; Imported SSR/SCR output control unit, high temperature control precision; Domestic first class heat insulation technology, excellent sealing effect; Low temperature of machine shell, small influence on indoor ambient temperature; Energy efficient, power saving, safe and environmental | Can be filled with nitrogen for protection and realizing non-oxidation drying environment. Color, temperature control system, conveyor system can be selected according to the customer requirement; Color selection legend
Customer can designate color according to the color chart. |
| ※Match different charging trays/trolleys according to the dried product, the material includes baking varnish, electroplate color zinc, stainless steel, etc., dimension, specification can realize non-standard customization, welcome to telephone to consult. | |
optional item
Optional control system | |
Button switch control | Touch screen human-computer interface |
Optional conveyor belt | ||
Stainless steel net belt | Teflon net/cloth belt | Attachment chain conveyor belt |
Chain board conveyor belt | Bi-pitch chain through rod conveyor belt | PCB conveyor chain |
Glass industry conveyor system | PVC belt | High temperature resistant canvas conveyor belt |
Trolley conveying | Drum type conveying | Non-standard customized conveyor system |
Temperature control optional equipment
Temperature controller | |||
Taiwan CAHO intelligent temperature controller | | FUJI intelligent temperature controller | |
Japanese imported OMRON temperature controller | | Honeywell temperature controller | |
Temperature recorder | |||
multi-channel color screen paperless recorder | | multi-channel paper recorder | |
Imported PARTLOW circle diagram temperature recorder | | Imported YOKOGAWA 48 channel temperature recorder | |
Record group | |||
Portable temperature recorder group 12 points | | IR computer temperature recorder group 12~48 points | |
Touch screen +PLC | |||
Weinview 7 | | Proface | |
Mitsubishi | | Siemens | |
IPC Ethernet remote monitoring | |||
| |||
Timer 30 points, imported LED digital timer, 0-9999 S/M/H can be set, MM/DD/YY programmable timer | |||
Electric power output, electric power auto adjuster according to SSR, SCR, SSPR, etc. | |||
Air circulation legend
| | | |
Single side air supply type | Double side air supply type | Double side air supply anti-explosion | Thermal radiation ascending type |
| | | |
All-round radiation type | Thermal radiation irradiation type | Hot air radiation type | Hot air radiation type |
Cooling system
| | |
Industrial cooler | Draught fan forced cooling | FFU cooling |
