Poster uv dryer tunnel furnace
- 1000 Set / Sets per Month
- T/T L/C Other
- 7 days
Product Details
Brand Name: | Tamprinter | Place of Origin: | China | Model Number: | TM-UV1500 |
Type: | Other, Tunnel UV Machine | After-sales Service Provided: | Overseas third-party support available | Condition: | New |
Product Description

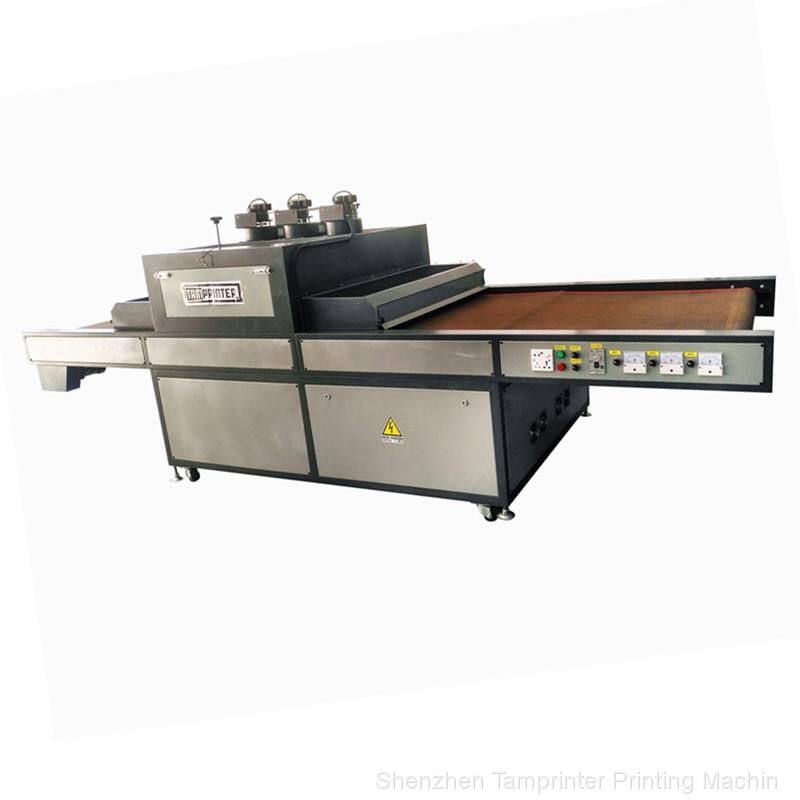

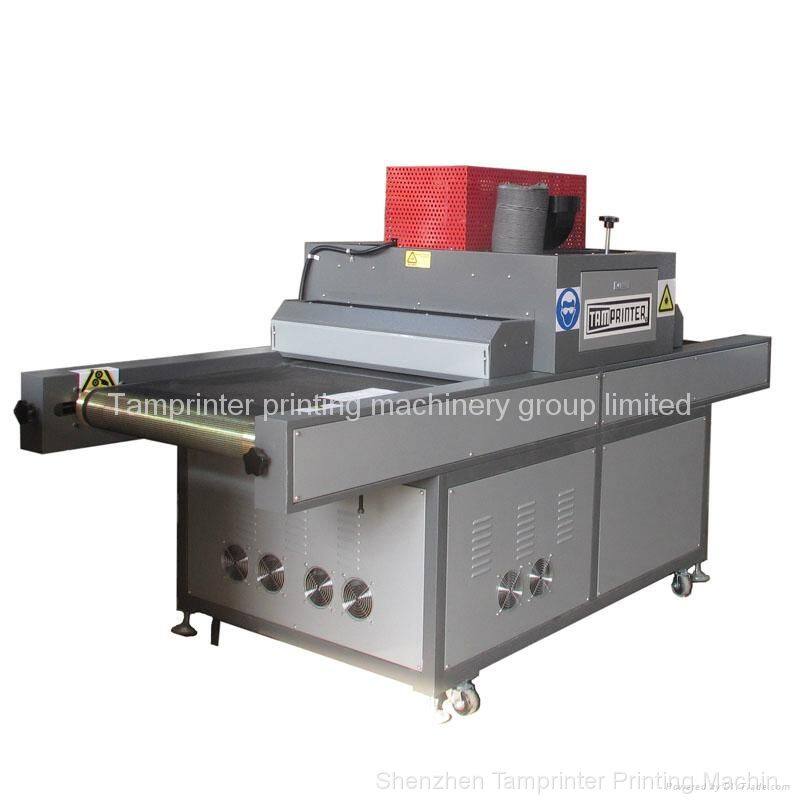

TM-UV1500 Poster uv dryer tunnel furnace
Technical Parameters:
TYPE | TM-UV1500 |
Convey belt width(mm) | 1480 |
Effective range (mm) | 1500 |
Max thickness of cured (mm) | 40 |
Conveying speed (m) | 0~25 |
POWER (P/V/Hz) | 3/380/50 |
UV lamp | 3pcs*8kw*1.5M |
Driving power (W) | 120 |
Total power (KW) | 25 |
MACHINE SIZE (L*W*H) | 4050*1700*1350 |
WEIGHT (Kg) | 700 |
Price Terms : EXW / CIF / FCA / FOB
Payment Terms : Western Union ,T/T, LC

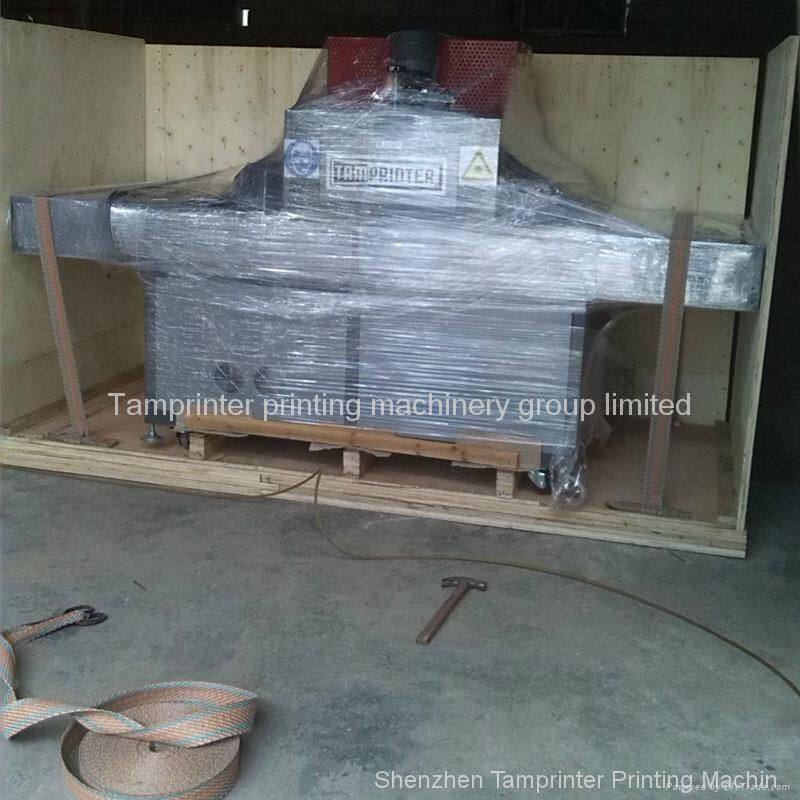

Packing : Polywood case
Lead Time : Within 20-25 days
Standards Certificate : ISO9001-2000 , CE
Warranty:
1. Warranty: 1 year.
2. Parts can be changed for free within 1 year, freight collect.
Working principle:
1, UV (Ultraviolet) is an ultraviolet light. In the application of curing, mainly through the irradiation of the ultraviolet, making the sensitive material generates polymeric cross-linking reaction, so that the ink achieves the purpose of drying and curing in a short time.
2, Comparison with the traditional self-drying and infrared drying, UV (Ultraviolet) has the quality of high gloss, high hardness, high wear resistance and solvent resistance, etc. on its cured products.
Application:
Widely used for the field of drying UV ink, UV coating for UV spray finishing, processing after paper's UV printing, UV glue, UV tests.
It is very adapt to high-end packaging products, such as frosted, wrinkles, refraction, ice flowers, foam, polishing and so on.
Function and feature:
1, Well-designed cooling system reduces the heat generated by the light source, so as to avoid high temperature leaving some products (such as paper, PVC film) affected and deformed.
2, Electronic variable speed, speed is stable, sensitivity is adjustable.
3, High quality light source, long operating life, it can start instantly and access to normal brightness quickly.
4, Good stability and good environmental adaptability. During the use, energy output evenly, and after the prolonged uses, there is no significant change in the spectral distribution.
5, Strong exhaust pump makes the article adsorbed on the conveyor belt, and difficult to drift and fall.
