crease tunnel UV Dryer for paper UV partial varnish
- 200000 Set / Sets per Month
- shanghai
- T/T L/C
- 7 days
- UV curing machine for Roland offset print
- Building materials decoration MDF board special effect uv ink curing machine
- Ice Flower effect UV dryer
- UV ice crack effect uv curing machine for screen printing glass
- PCB solder resist white ink UV curing machine
- High speed and high interface Offset UV Curing Tunnel Drying Machine
Product Details
Brand Name: | Tamprinter | Place of Origin: | China | Model Number: | TM-WUV-1000 |
After-sales Service Provided: | Overseas third-party support available | Automatic Grade: | Automatic | Driven Type: | Electric |
Product Description

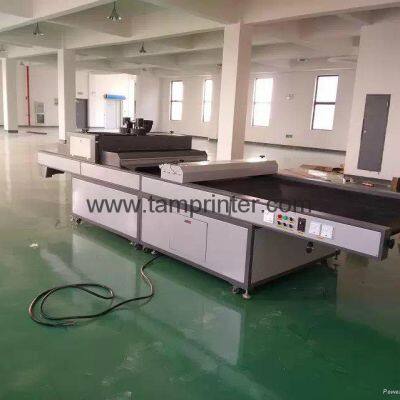

TM-WUV-1000 crease UV Dryer tunnel for paper UV partial varnish
HS Code | 8419399090 |
Conveyorbelt width(mm) | 1000mm |
UV light power(kw) | 5.6kw*2 |
Conveyor speed(m/min) | 0-25m/min |
Power (v/kw) | 380/12.8 |
Dimensions (WXHXLmm) | 5000X1230X1350mm |
Wrinkle lamp | 40W*3 |
This machine can be used for solidifying for UV printing ink. It is mainly used for the effect of slight surface wrinkles, and is suitable for printing fields such as high-end gift packaging boxes, cigarette boxes, wine boxes, and calendars.
Applying Teflon conveying belt, which unifies and stabilizes the fig urate.
There is a distance of 2 meters reserved in the front to install the manipulator, which is convenient for the manipulator to drag the paper from the screen printing machine to the UV machine, so it looks very long.
If you don’t use a manipulator, you can choose a length of 4.2 meters
This is a transmission type UV curing device, which is widely used in the UV surface paint coating of mobile phone shells, membrane switches, and electronic plastic shells; it is used for curing electronic components, liquid crystal chips, terminal seals, mobile phone components, and plastic components. Combined with LCD and so on. Equipped with a wrinkle lamp, it is especially suitable for light curing of products combined with various processes such as paper UV partial varnish, UV frosting, UV crystal embossing oil, UV wrinkles, etc. It is mainly used for the effect of slight surface wrinkles, and is suitable for printing fields such as high-end gift packaging boxes, cigarette boxes, wine boxes, and calendars.
main performance
1, Equipped with 2 sets of UV light source systems, the number of lamp tubes can be turned on according to production needs.
2, Imported Teflon conveyor mesh belt, finely crafted, running smoothly and without noise.
3, Speed regulating motor and governor, stepless speed regulation of the conveyor belt, the conveying speed can be adjusted according to the production situation.
4, Concentrating design, imported high-concentrating reflective lampshade, instant drying, fast speed.
5, The illumination height of the UV lampshade can be adjusted.
6, The working current of the UV lamp tube can be displayed through the external indicator needle, which can effectively grasp the working status of the UV system.
7, The heat can be discharged outside through the heat exhaust system, and at the same time, the production and working environment can be effectively protected.
