TM-LED600-6 MDF PLATE MINI LED UV dryer
What product you need to cured , or how much radiation intensity, we can customize.
Cooling: water cooling system
technical parameters
| Model No. | TM-LED-300-6 | TM-LED-600-5 | TM-LED-600-6 |
| size | 300*80mm | 600*60mm | 600*80mm |
| voltage | 1400W | 500w | 1450w |
| power | 220V 50HZ | 220V 50HZ | 220V 50HZ |
| weight | 4+20kg | 3+26kg | 3+30kg |
| single Wavelength | 395 ~400 NM | 395 ~400 NM | 395 ~400 NM |
| lamp | 6 row | 5 row | 6 row |

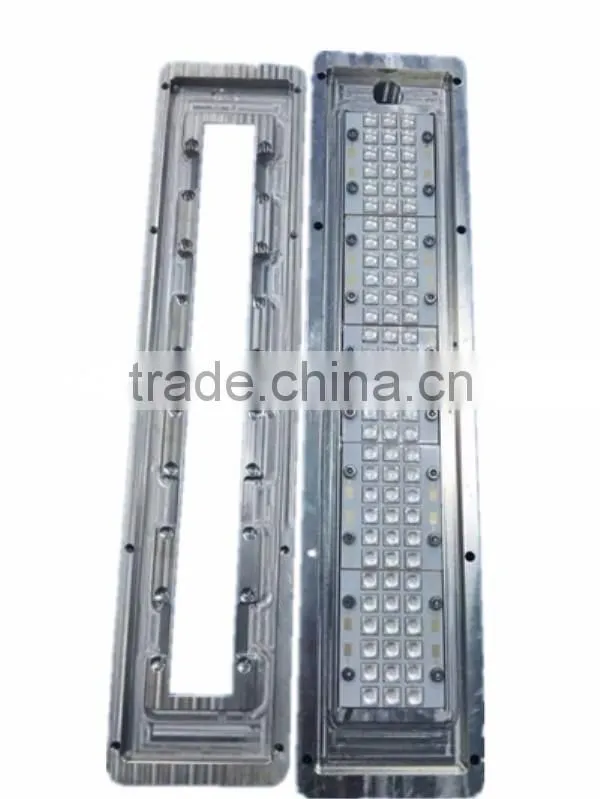

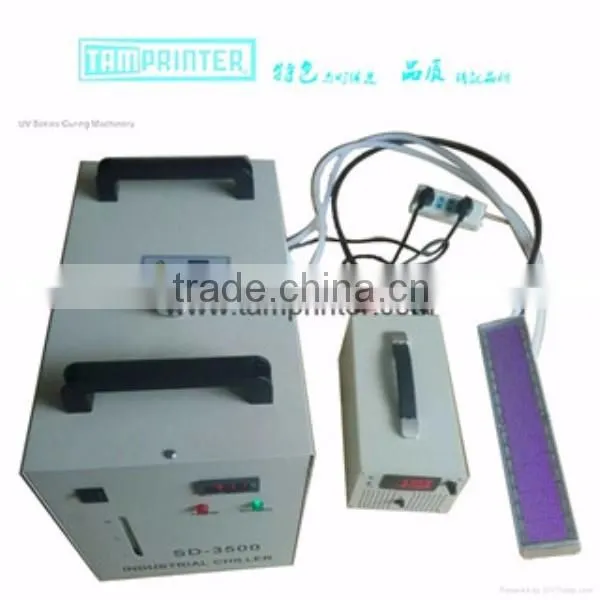

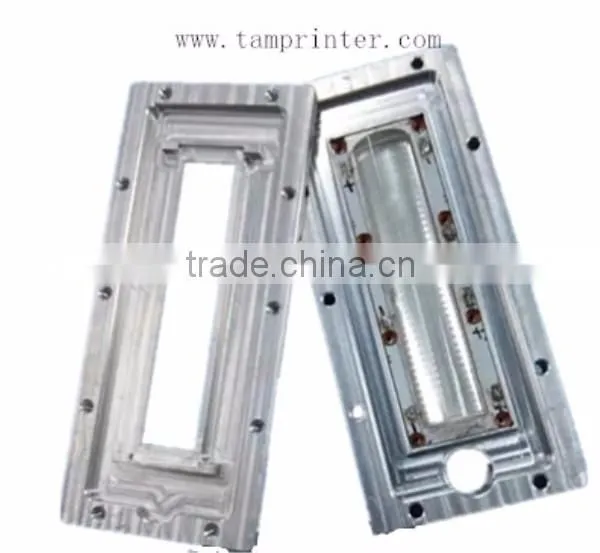

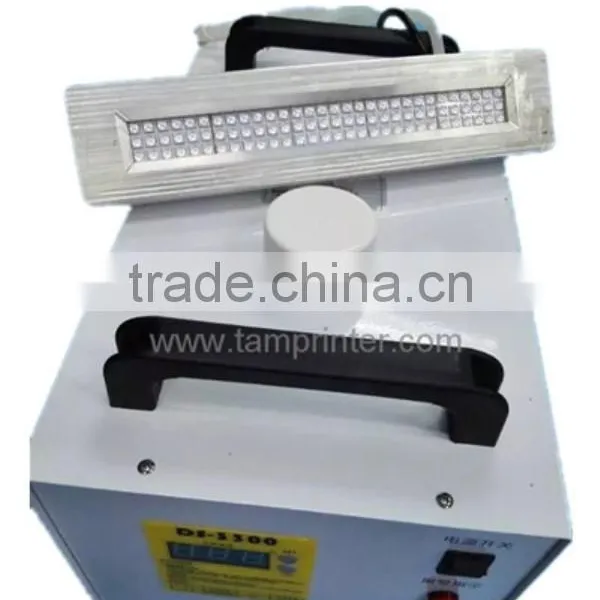

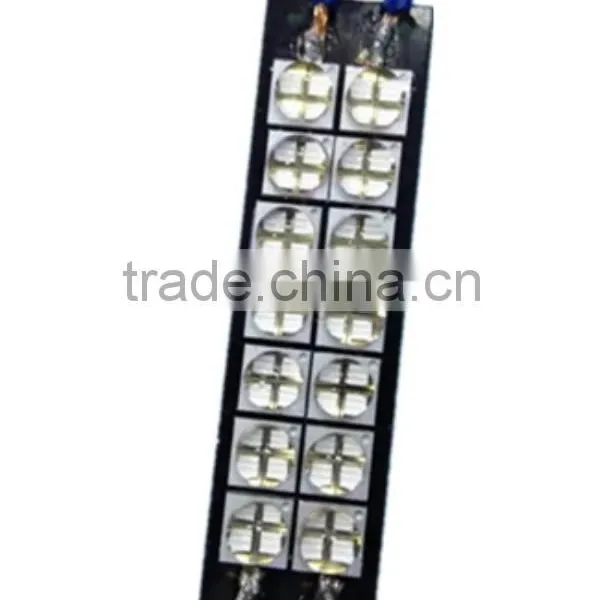

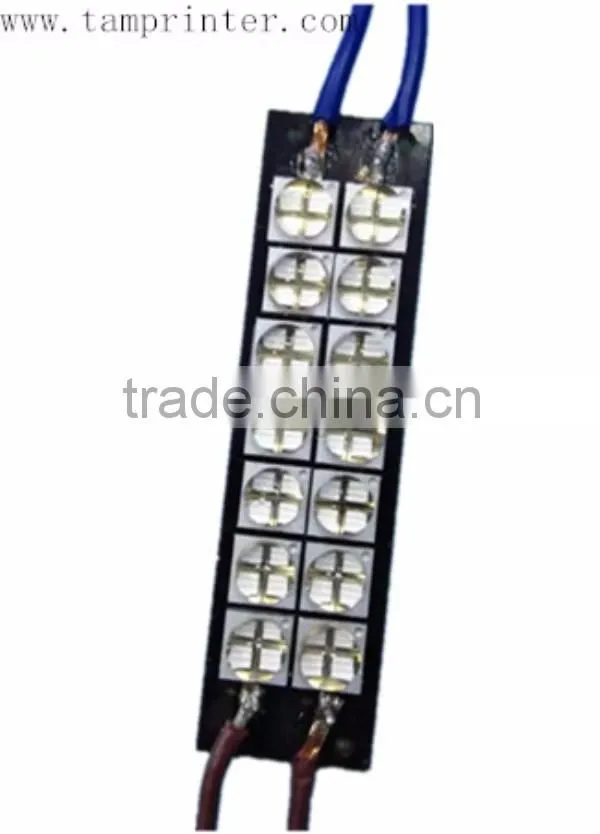

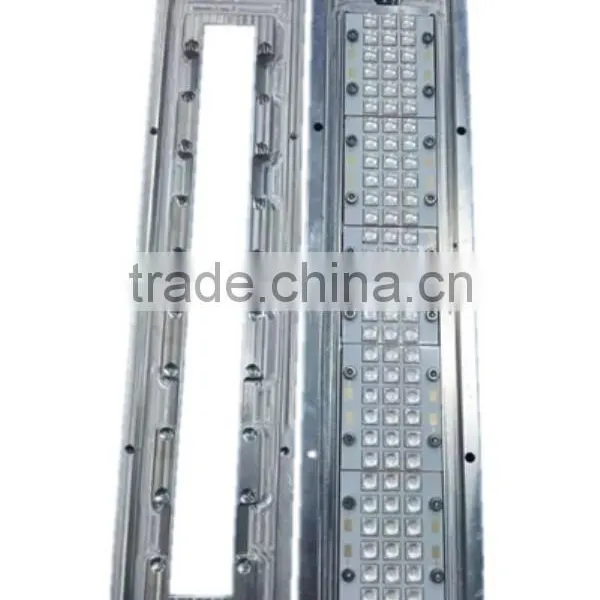

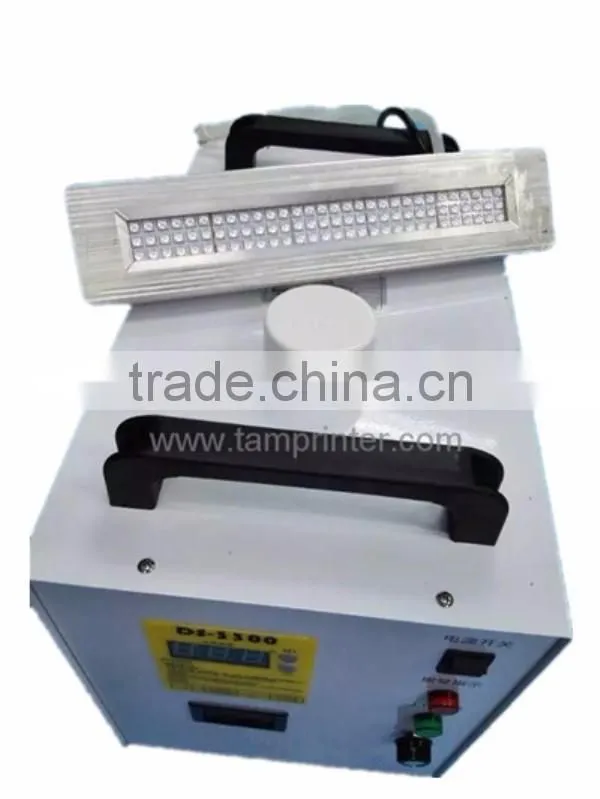

Product Image
UV-LED compared to traditional mercury characteristics
Life
Compared with traditional UV curing equipment, its mercury lamp life of only 200-2000 hours using life UV LED UV curing system reaches 20000-30000 hours. LED mode can be only when you need instant light ultraviolet light, according to LED work life equivalent to more than 50 times the mercury method. Reducing lamp replacement time: improve production efficiency, but also very energy efficient. Traditional lamp way curing equipment at work, since the mercury slow start, the opening and closing affect lamp life, must have been lit, not only cause unnecessary power consumption and shorten the working life of a mercury lamp.
Environmental pollution
The traditional way of curing machine uses a mercury lamp mercury lamp light way, mercury, waste disposal, transportation is very troublesome bulb, improper handling will cause serious environmental pollution. The LED curing type semiconductor shine, no pollution to the environment factors. Therefore, the use of LED curing lights more environmentally friendly formula.
Super illuminance
UV LED special structure it has a directional illumination function, because of its super-concentrated illumination, compared with a mercury lamp, UV LED shorten the exposure time job, which greatly improves production efficiency.
Low energy consumption
High UV LED lamp way than the way of the effective luminous efficiency of more than 10 times. Traditional UV mercury lamp lights before using pre-lit, use the switch can not be interrupted, continuous light use only, a great waste of energy! The UV-LED which means that it can be used, without waiting, with the open with off does not affect the life and use!
UV-LED range of applications and some examples
1, UV shadowless glue curing, printing UV ink curing, drying, curing, copy, exposure, cleaning;
2, nail beauty, sterilization, medical, adhesive treatment;
3, night fishing trapping mosquitoes, looking scorpion;
5, forensic traces of blood, human and other fluids court investigation
6, industrial fluorescent dye leak investigation - HVAC, automotive, etc.
7, counterfeiting investigation - currency, antiques, paintings, art, fluorescence analysis, counterfeit detection, identification and other artifacts
8, mineral lighting equipment and lighting - to see jade gemstone jewelry luminous
9, home and hotel check - isolated animals, insects and humans fluid
10, crystal, glass inspection and repair;
11, plant lighting, born in coloring, seed cultivation
12, PCB areas: exposure, curing, copy, dried
13, FPD areas: exposure, curing, copy, cleaning
14, food water treatment areas: sterilization, deoxygenation, TOC decomposition, food preservation
15, the medical and biochemical fields: sterilization, phototherapy, clean air, isotope separation, genetic engineering
16, furniture apparel areas: drying, curing, copy
17, special effects projection areas: screen projection, special effects lighting
Price-UVLED light and UV light Contrast
1, long life: life is more than 20 times that of conventional lamp-type machine.
2, cold light source, no heat radiation, surface temperature is low according to the article, to solve the traditional problem of thermal injury. Especially for liquid crystal edge, film printing, etc.
3, heat a small, traditional equipment can solve the problem of large heat.
4, instant light, no warm-up instantly reach 100% power UV output
5, the opening and closing times life is not affected.
6, high energy, light output stable, good illumination uniformity effect, improve production efficiency.
7, do not contain mercury, it does not produce ozone, it is to replace traditional light source technology a safer, more environmentally friendly alternative.
8, low energy consumption, power consumption is only 10% of the traditional-style lamp, can save 90% power.
Payment Terms
TT / LC / West Union
welcome to contact us if you have any questions.
