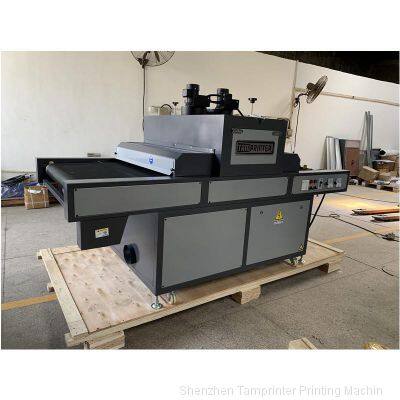

TM-UV900 UV drying machine
Technicial Parameters:
/v_show/id_XNTY0ODU4MDg0.html
Type | TM-UV900 | TM-UV1000 |
Convey belt width | 880mm | 980mm |
Max thickness of cured | 40mm | 40mm |
Conveying speed | 2~20 | 2~20 |
Power (P/V/Hz) | 3/380/50 | 3/380/50 |
UV lamp | 5.6kw | 8kw |
Driving power | 90W | 120W |
Total power | 12KW | 16.5KW |
Size (L*W*H)MM | 2550*1200*1600/\265*134*167 | 2850*1300*1600 |
Weight (Kg) | 420 | 450 |
Certificate | CE | CE |
Application:
TM-UV900 UV curing machine is used for flat and round surfaces UV curing.UV drying machine
It suite for bottle surface UV ink drying solid process and flat surface UV ink drying solid process. Such as various of UV ink, UV adhesives, UV paint curing.
Features & Advantages:
1, With the high efficiency UV light, it can finish the UV curing quickly, the high level of UV light can be adjusted, and setting the right parameters for UV curing.
2, LED display shows the conveyor running speed, convenient to process operation.
3,The machine body adopts the extra-thick stainless steel for hardness and durable.

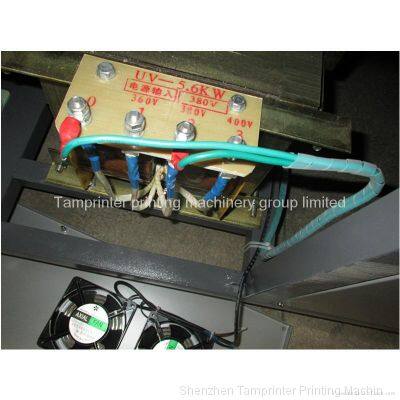

4, UV lamp and transformers which are imported from United Kingdom that fit for special ventilation design, which can be max effectiveness. It suited for different UV curing process.
5, This series of products is different with the traditional high-power, high-power UV equipment. In order reduce the cost and improve output for our customer
Additional Info:

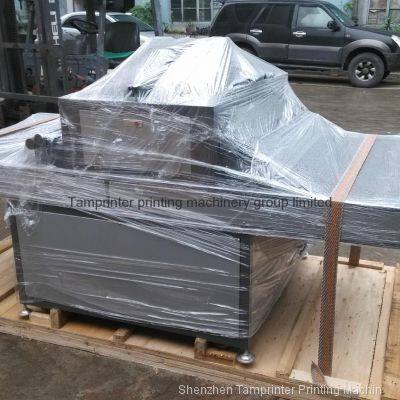

Packaging Detail: Plywood case
Delivery Detail: 1-2 weeks
Payment: T/T L/C Western Union
Price term: CIF/CFR/FOB/FCA/EXW
Minimum Order: 1 set
Hot tags: electric uv oven
